ELEMENT LINE: Service & Maintenance Manual - rev. 1.2
Page 5.6
5.5. LEG PRESS SEAT

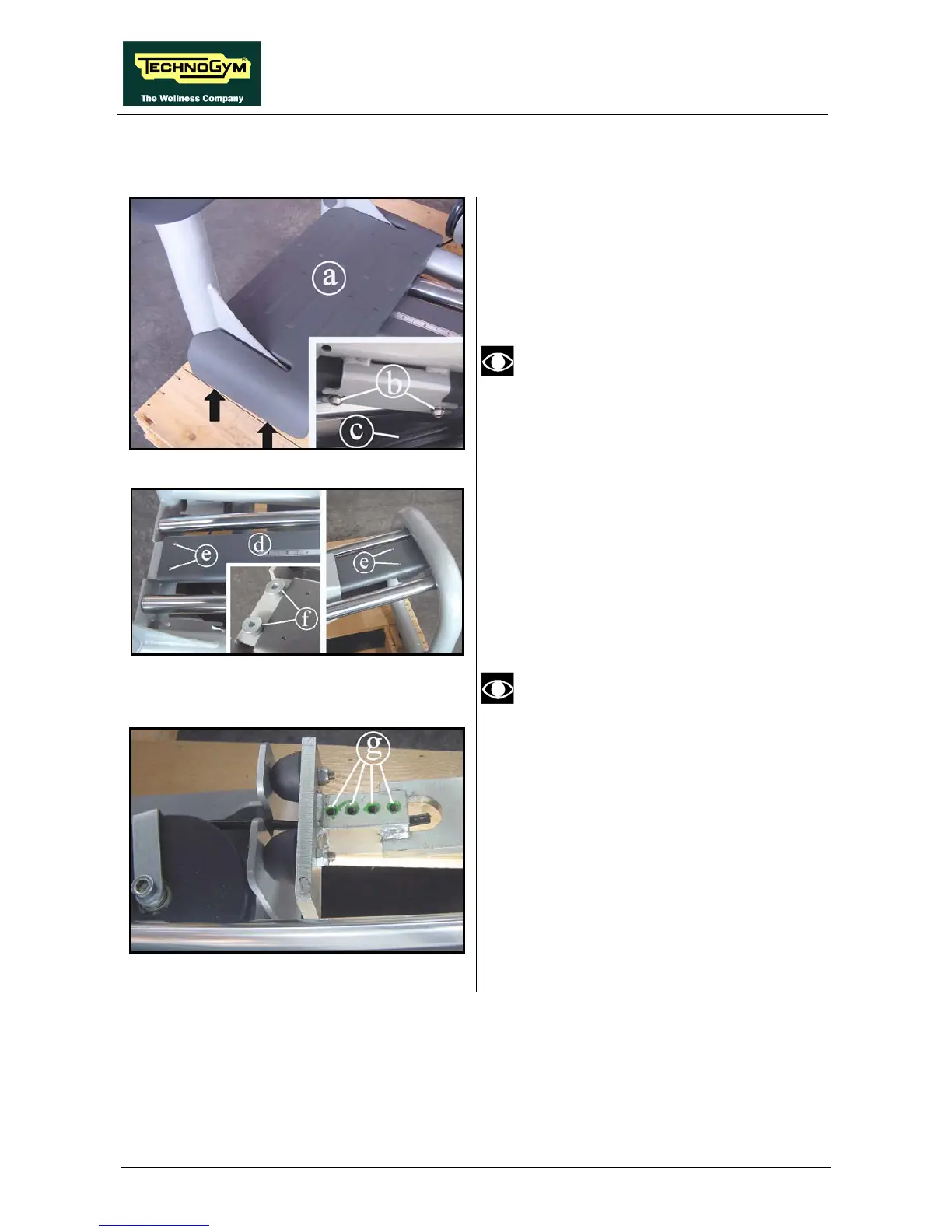

Figure 5.5-1
1. Remove the platform (a) using a 6-mm hex
wrench to back off the screws (b) (2 on each
side) indicated by the arrows in the figure,
which are accessed from the bottom.
Before continuing, use a strap to secure
the seat in the all-back position on the
guide bars, to prevent the cam (c) from
covering the screws (b).
Figure 5.5-2
2. Back off the screws (e) using a 3-mm hex
wrench.
3. Move the seat to the all-back position on the
guide bars.
4. Remove the cover plate (d) by pulling it
toward the front.
During reassembly, fit the spacers (f) on
the screws securing the cover plate.
Figure 5.5-3
5. Loosen the 4 dowels (g), using a 4-gauge
hexagonal T-wrench.
6. Remove the cable.
Continued on next page
→
