ELEMENT LINE: Service & Maintenance Manual - rev. 1.2
Page 7.1
7. SPECIAL OPERATIONS
The term special operations refers to those procedures whose correct execution is fundamental for
the safe and reliable operation of the machine.
7.1. LOCKING DOWN THE CABLE FIXING DOWELS

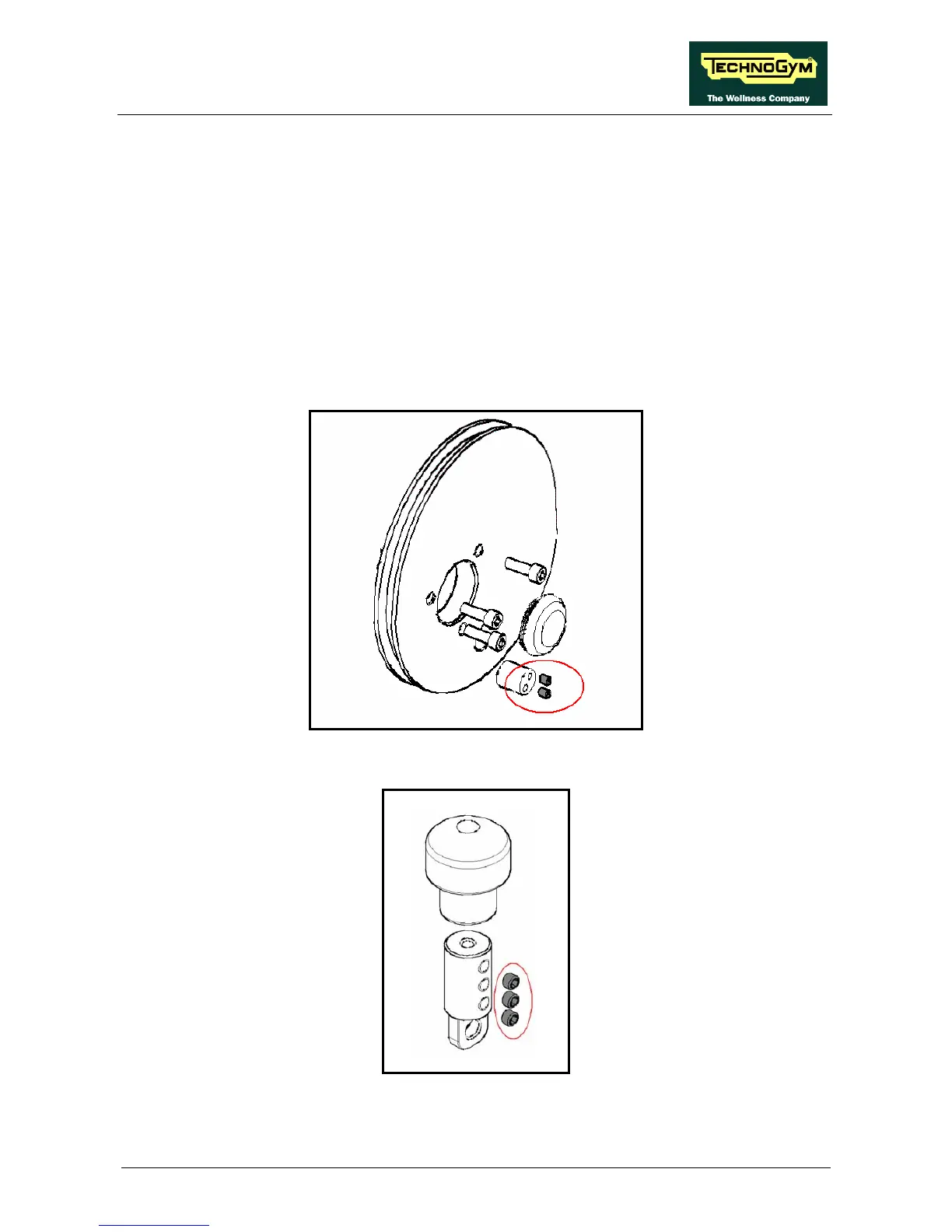

At least one end of the weight stack cable is fixed to the wheel or to a stop by means of the dowel
screws highlighted in grey and circled in the figures below. The fixing dowels must be carefully
locked down to prevent them from working loose and allowing the cable to come out, causing
problems to the user.
Figure 7.1-1
Figure 7.1-2
