ELEMENT LINE: Service & Maintenance Manual - rev. 1.2
Page 3.12
3.6.2. FIXING THE CEILING: CAVI INCROCIATI
Use cables, ropes or chains that strictly meet the following minimum requirement: minimum
guaranteed workload of 90 Kg.

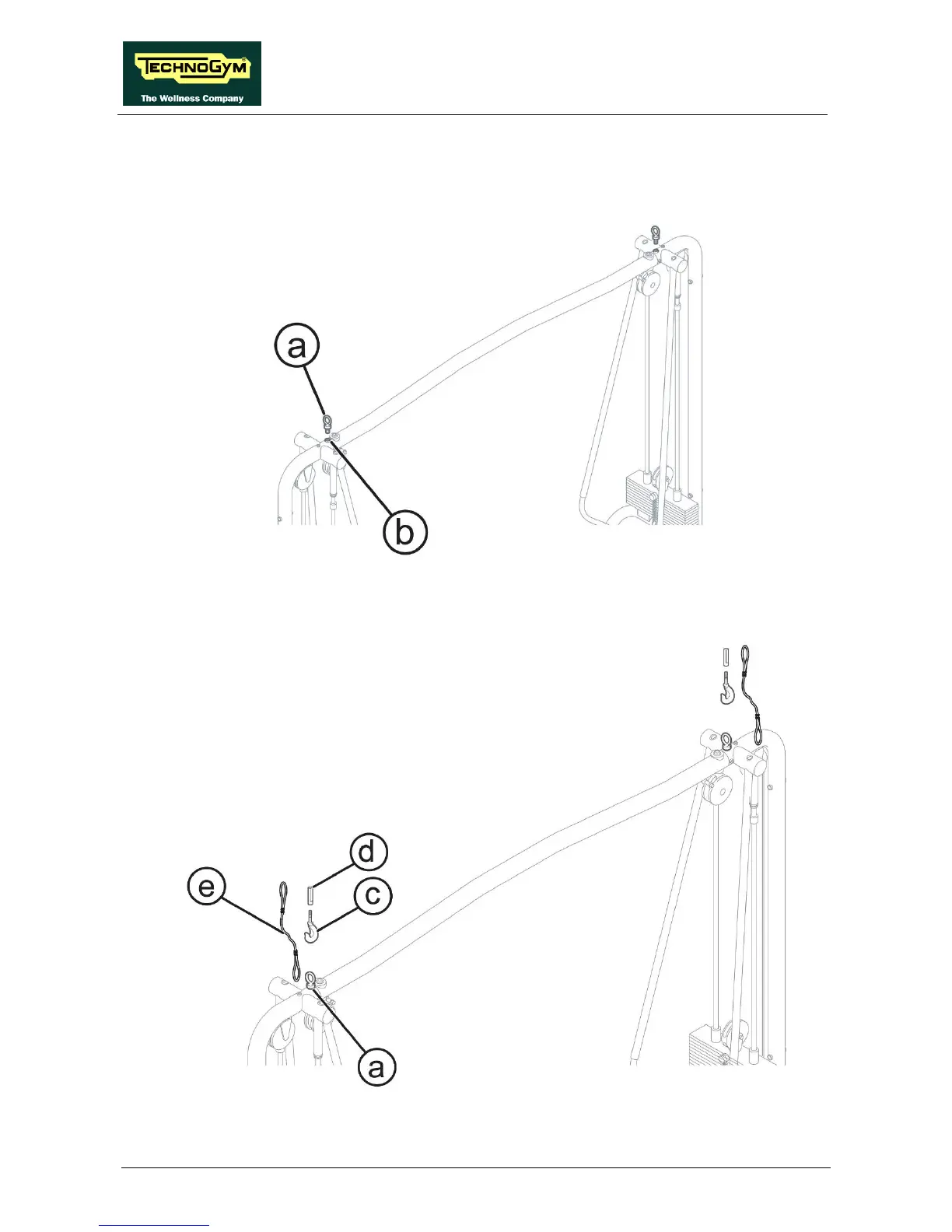

Figure 3.6-3
1. Tighten the eyebolts (a) into the threaded holes(b),
Figure 3.6-4
