4. mark the position of two Ø 14 holes on the wall,
5. fully tighten brackets (c) to the frame,
6. drill the wall and insert rawl plugs (f) in the wall holes,
7. bring the equipment up to the wall and ensure the holes in the wall are aligned with the holes on
the bracket,
8. screw in screws (g) and tighten to the wall.

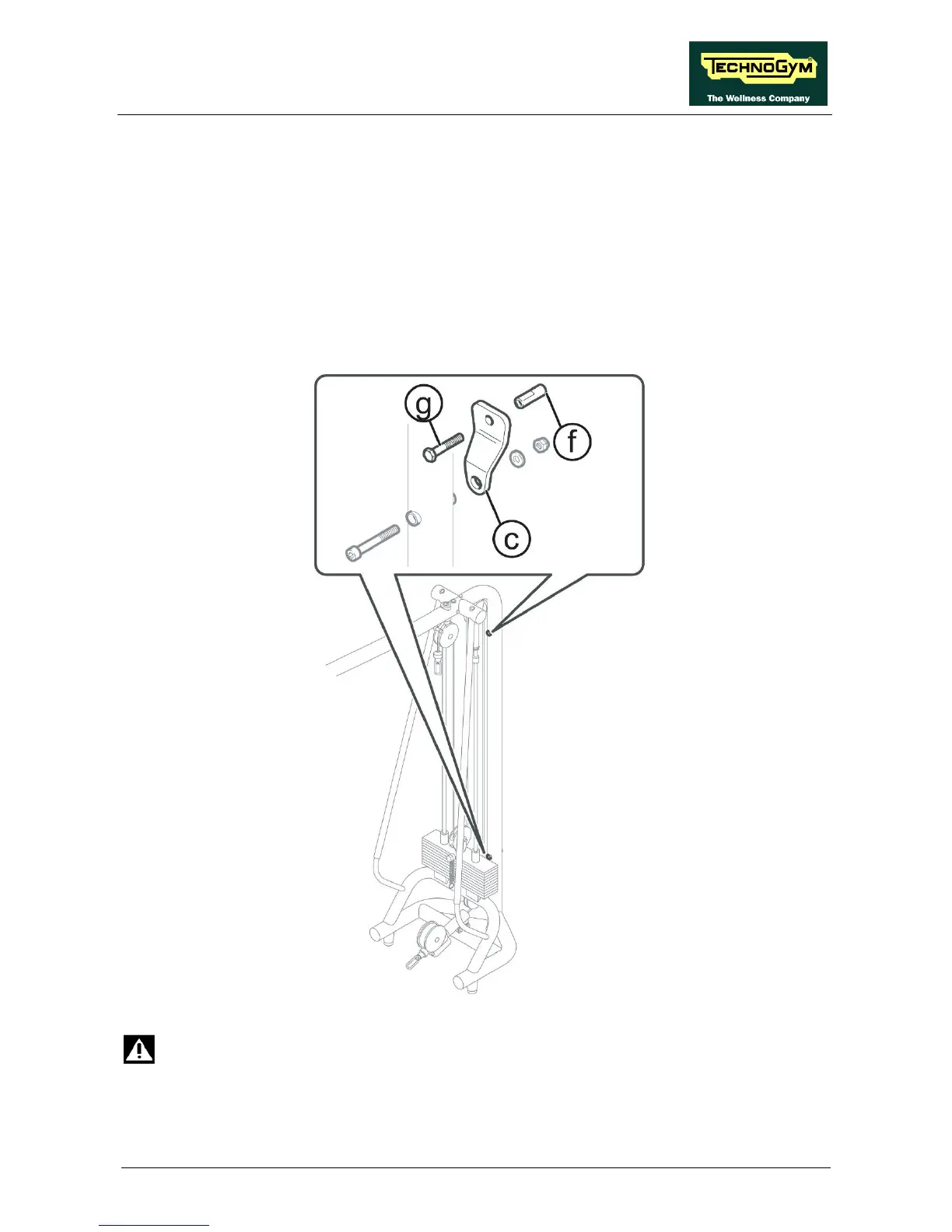

Figure 3.6-2
WARNING: is obligatory to secure the equipment to the wall using the appropriate
screw and brackets.
