ELEMENT LINE: Service & Maintenance Manual - rev. 1.2
Page 5.15

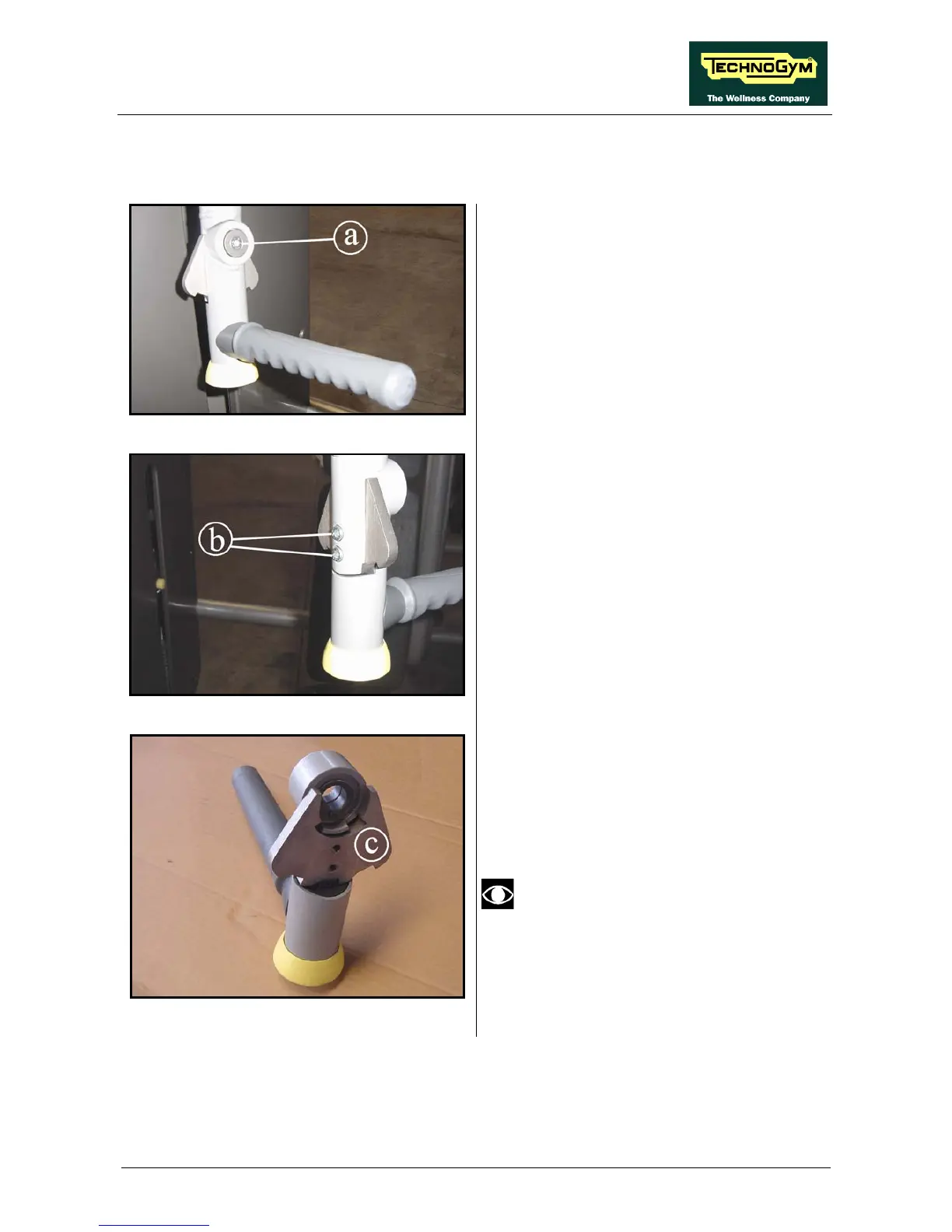

5.10. DISASSEMBLING HANDLES ADJUSTING SYSTEM ON
CHEST PRESS
Figure 5.10-1
1. Back off the screw (a) using a 6-mm hex
wrench.
Figure 5.10-2
2. Back off the screws (b) using a 6-mm hex
wrench.
3. Remove the handle assembly from the
machine lever.
Figure 5.10-3
4. Remove the selector plate (c).
Take care during reassembly procedure
to replace the plate “c” in the right way
as shown in the figure to side.
Continued on next page
→
