ELEMENT LINE: Service & Maintenance Manual - rev. 1.2
Page 5.16

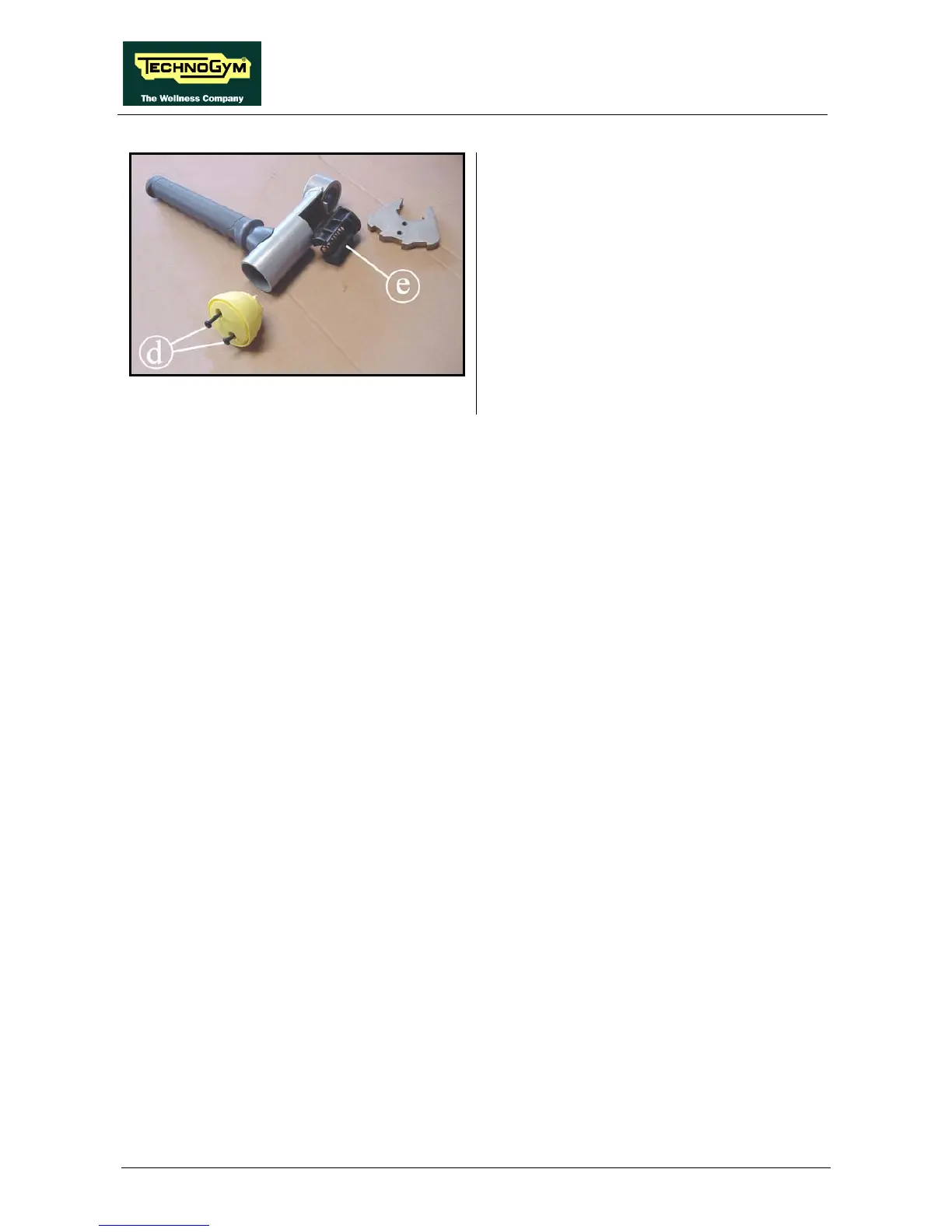

Figure 5.10-4
9. Back off the 2 screws (d) using a medium
Phillips screwdriver.
10. Remove the yellow knob from the lower side
and the spring (e) from the handle frame.
To reassemble the handle adjusting system,
carry out the above steps in reverse order.
