ELEMENT LINE: Service & Maintenance Manual - rev. 1.2
Page 5.7

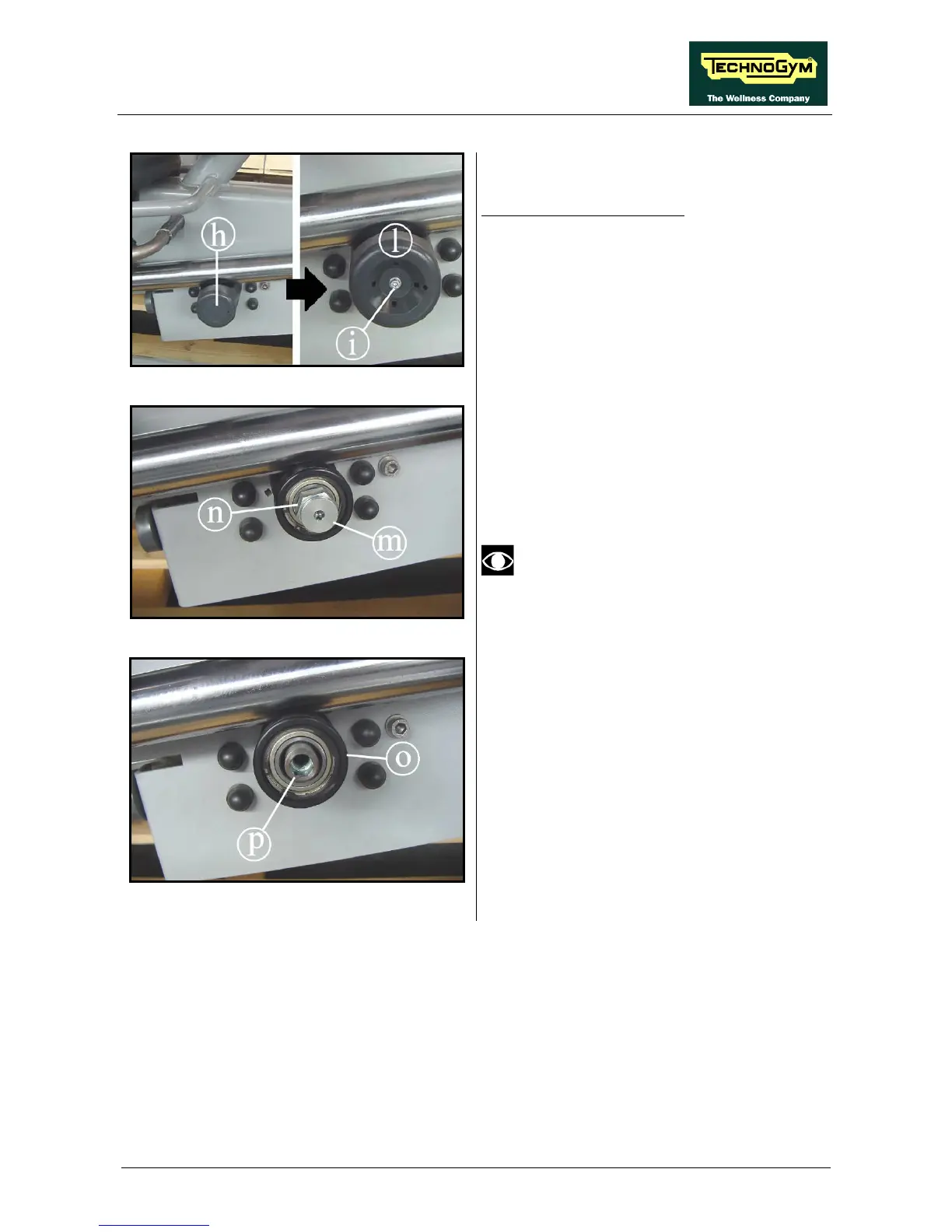

Figure 5.5-4
On both side of the machine:
1. Remove the cap (h).
2. Back off the screw (i) using a 3-mm hex
wrench.
3. Remove the plastic guard (l).
Figure 5.5-5
7. Back off the screw (m) using a 6-mm hex
wrench.
8. Remove the eccentric pin (n) by pulling it on
the side.
During reassembly, adjust the position
of the cam so that the wheel is in contact
with the bar, and clamp it by locking
down screw (m).
Figure 5.5-6
9. Remove the wheel (o) from the pin (p).
10. Back off the pin (p) using a 12-mm hex
wrench.
11. Remove the seat assembly by pulling it
upward.
To reassemble the seat assembly, carry out the
above steps in reverse order.
