ELEMENT LINE: Service & Maintenance Manual - rev. 1.2
Page 3.6

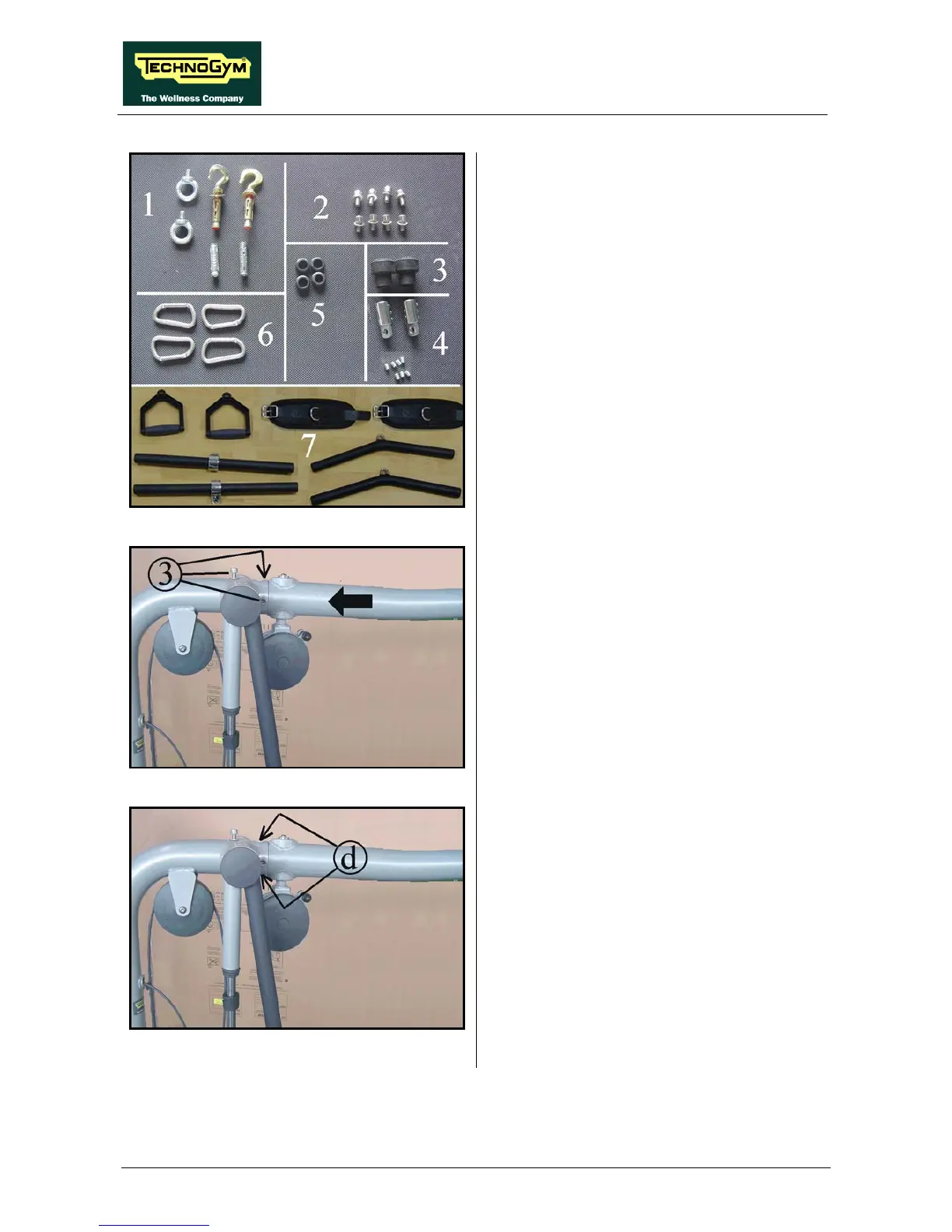

Figure 3.5-5
4. In particular, the carton box contains:
• The set of screws and hooks (1) to fix the
machine on the floor or on the wall;
• The set of screws (2) used to fix the
crossbar;
• The cable end pieces (3) and (4) with
some extra grub screws;
• Four cable ducts (5) for frame’s holes;
• Four snap links (6) to use with
accessories;
• A set of accessories (7) for the machine
usage.
Figure 3.5-6
5. Insert the crossbar on the post at the top of
the weight stack column, and fix it using the
screws (3) shown in Figure 3.5-5, locking
down 3 of them
in the position s shown in the
picture to side.
Carry out this operation on both the Ercolina
modules.
Figure 3.5-7
6. Insert two of the cable duct (5), of Figure
3.5-5, on the frame’s holes (d) shown in the
picture to side.
Carry out this operation on both the Ercolina
modules.
Continued on the following page
→
