ELEMENT LINE: Service & Maintenance Manual - rev. 1.2
Page 3.7

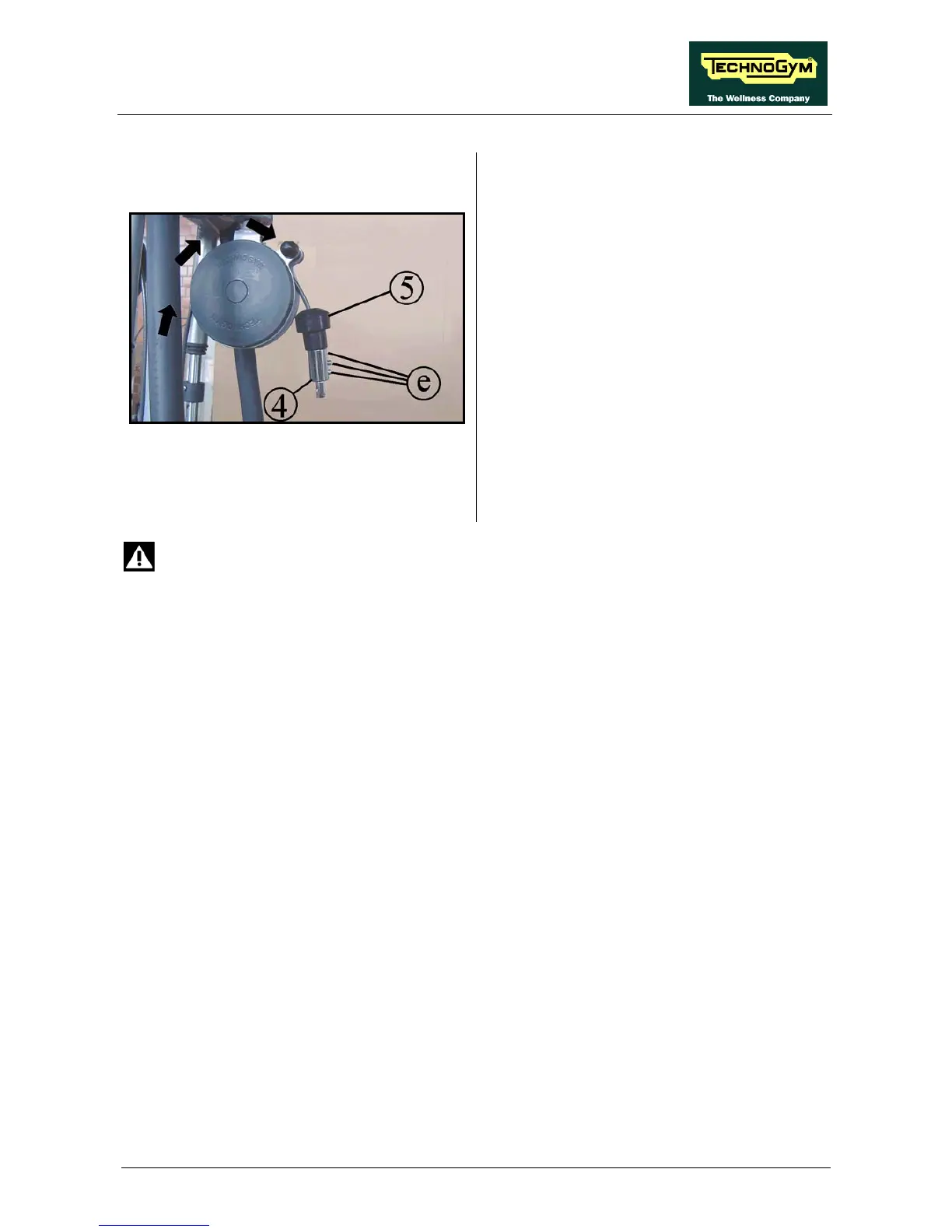

Figure 3.5-8
7. Remove the cable from the hole on the
frame, pulling it out toward the inside, and
pass it through the pulley as indicated in the
figure to side.
8. After passing the cable on the pulley, insert a
rubber protection (5) on it.
9. Assemble one of the end piece (4) on the
cable as shown in the figure and lock down
the grub screws (e) using a 4-mm Allen
wrench.
10. Hide the end piece (4) with the rubber
protection.
Carry out this operation on both the Ercolina
modules.
WARNING: is necessary, at the end of the installation, set the machine on the wall or
ceiling.
