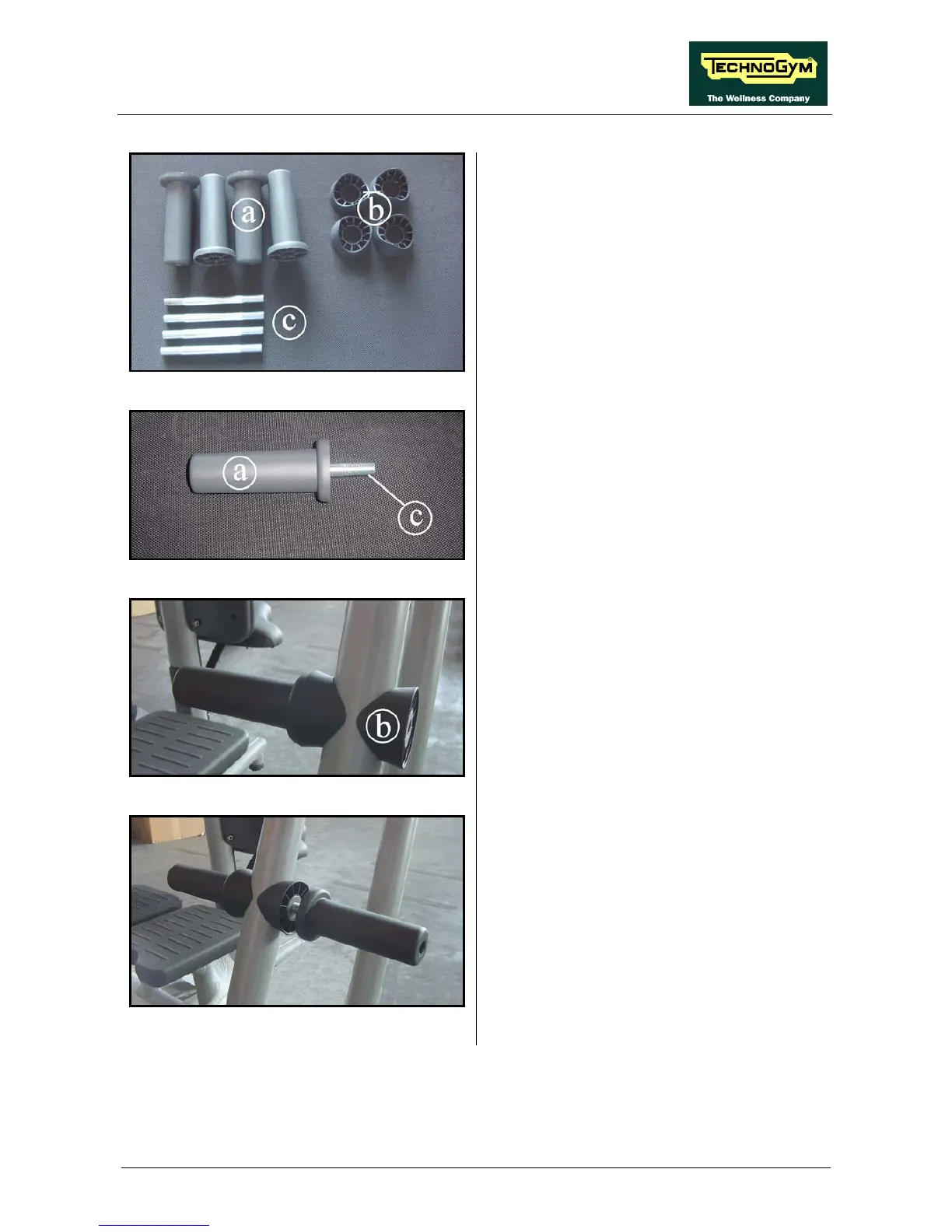

Figure 3.5-11
4. In particular, the carton box contains:
• the four plates holders (a);
• the four covering pieces (b);
• the four stud bolt pin (c).
Figure 3.5-12
5. Screw the stud bolt pin c in the plates holder
(a).
Figure 3.5-13
6. Insert one of the covering piece (b) on the
post in the external side of the frame.
Figure 3.5-14
7. Screw the plates holder on the frame.
Carry out the previous operations for all the four
plates holders supplied with the machine.
