1-18 Performance Verification
Table 1-6
Ohms measurement accuracy limits
Model 2410
range
Calibrator
resistance*
Model 2410 resistance
reading limit
s**
(1 year, 18°C–28°C)
20Ω
200Ω
2kΩ
20kΩ
200kΩ
2MΩ
20MΩ
200MΩ
19Ω
190Ω
1.9kΩ
19kΩ
190kΩ
1.9MΩ
19MΩ
100MΩ
18.9731 to 19.0269Ω
189.709 t
o 190.291Ω
1.89788 to 1.90212kΩ
18.9807 to 19.0212kΩ
189.807 to 190.193kΩ
1.89712 to 1.90288MΩ
18.9748 to 19.0252MΩ
99.316 to 100.684MΩ
** Nominal resistance value.
** Reading limits based on Model 2410 normal accuracy specifica-
tions and
nominal resistance values. If actual resistance values
di
ffer
from nominal values shown, recalculate reading limits
using actual calibrator resistance values and Model 2410 normal
accuracy specifications. See verification limits earlier in this
section for details.
F

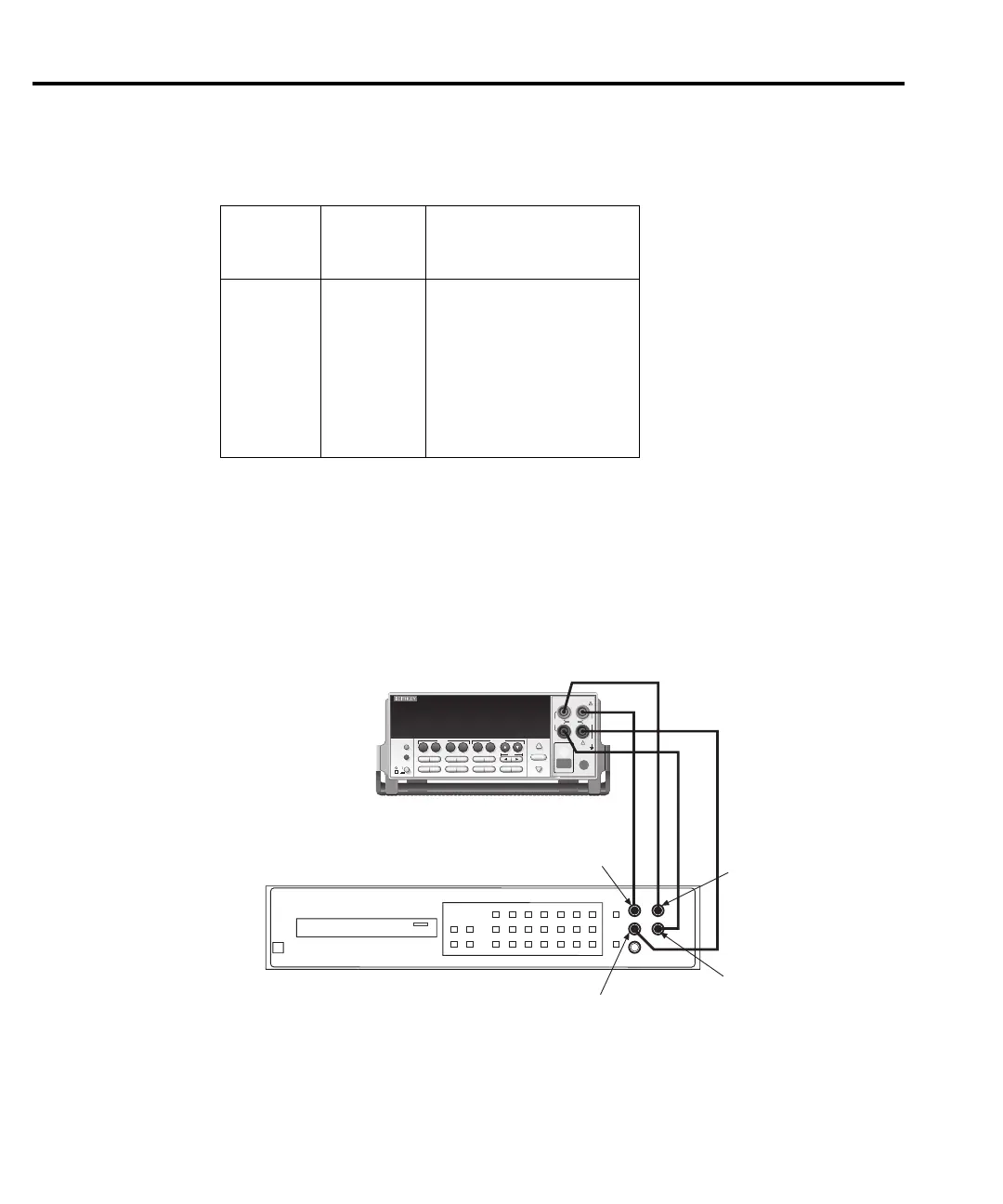

igure 1-3
Connections for
resistance
accuracy
verification
Model 2400
Resistance Calibrator
2400 SourceMeter
RANGE
250V
PEAK
5V
PEAK
HI
LO
OUTPUT
250V
PEAK
250V
PEAK
EDIT
TOGGLE
POWER
RANGE
INPUT/
OUTPUT
SENSE
Ω 4 WIRE
DISPLAY
ON/OFF
TERMINALS
FRONT/
REAR
EXIT ENTER
DIGITS RATE
RELFILTER
REL
LOCAL
FILTER LIMIT
DIGITS SPEED
V
Ω
MEAS
I
FCTN
V
I
SOURCE
230
1
67
89
4
+/-
5
STORE RECALL
EDIT
Output LO
Sense HI
Output HI
Sense LO
Model 2410
Sense HI
Sense LO
2410 SourceMeter
250V
PEAK
5V
PEAK
HI
LO
OUTPUT
1100V
PEAK
1100V
PEAK
EDIT
TOGGLE
POWER
RANGE
INPUT/
OUTPUT
SENSE
Ω 4 WIRE
DISPLAY
ON/OFF
TERMINALS
FRONT/
REAR
AUTO
RANGE
!
EXIT ENTER
CONFIG MENU
SWEEP
TRIG
REL
LOCAL
FILTER
LIMIT
DIGITS SPEED
V
Ω
MEAS
I
FCTN
V
I
SOURCE
230
1
67
89
4
+/-
5
STORE
RECALL
EDIT
4-WIRE
SENSE
Resistance Calibrator
Output LO
Output HI
2410 1100V SourceMeter
®
!
