Tektronix Keithley SourceMeter 2410 User Manual

Table 2-3
Front panel voltage calibration
Source
range*
So
urce
voltage
Multimeter voltage
reading**
0.2V
2V
20V
1000V
+200.00mV
+000.00mV
-200.00mV
-000.00mV
+2.0000V
+0.0000V
-2.0000V
-0.0000V
+20.000V
+00.000V
-20.000V
-00.000V
+975.00V
+000.00V
-975.00V
-000.00V
___________ mV
___________ mV
___________ mV
___________ mV
_____________V
_____________V
_____________V
_____________V
_____________V
_____________V
_____________V
_____________V
_____________V
_____________V
_____________V
_____________V
**Use EDIT and RANGE keys to select source range.
**Multimeter reading used in corresponding calibration
step
. See procedure.
Model 2410
Digital Multimeter
Input HI
Input LO
2410 SourceMeter
250V
PEAK
5V
PEAK
HI
LO
OUTPUT
1100V
PEAK
1100V
PEAK
EDIT
TOGGLE
POWER
RANGE
INPUT/
OUTPUT
SENSE
Ω 4 WIRE
DISPLAY
ON/OFF
TERMINALS
FRONT/
REAR
AUTO
RANGE
!
EXIT ENTER
CONFIG MENU
SWEEP
TRIG
REL
LOCAL
FILTER
LIMIT
DIGITS SPEED
V
Ω
MEAS
I
FCTN
V
I
SOURCE
230
1
67
89
4
+/-
5
STORE
RECALL
EDIT
4-WIRE
SENSE
2410 1100V SourceMeter
®
!

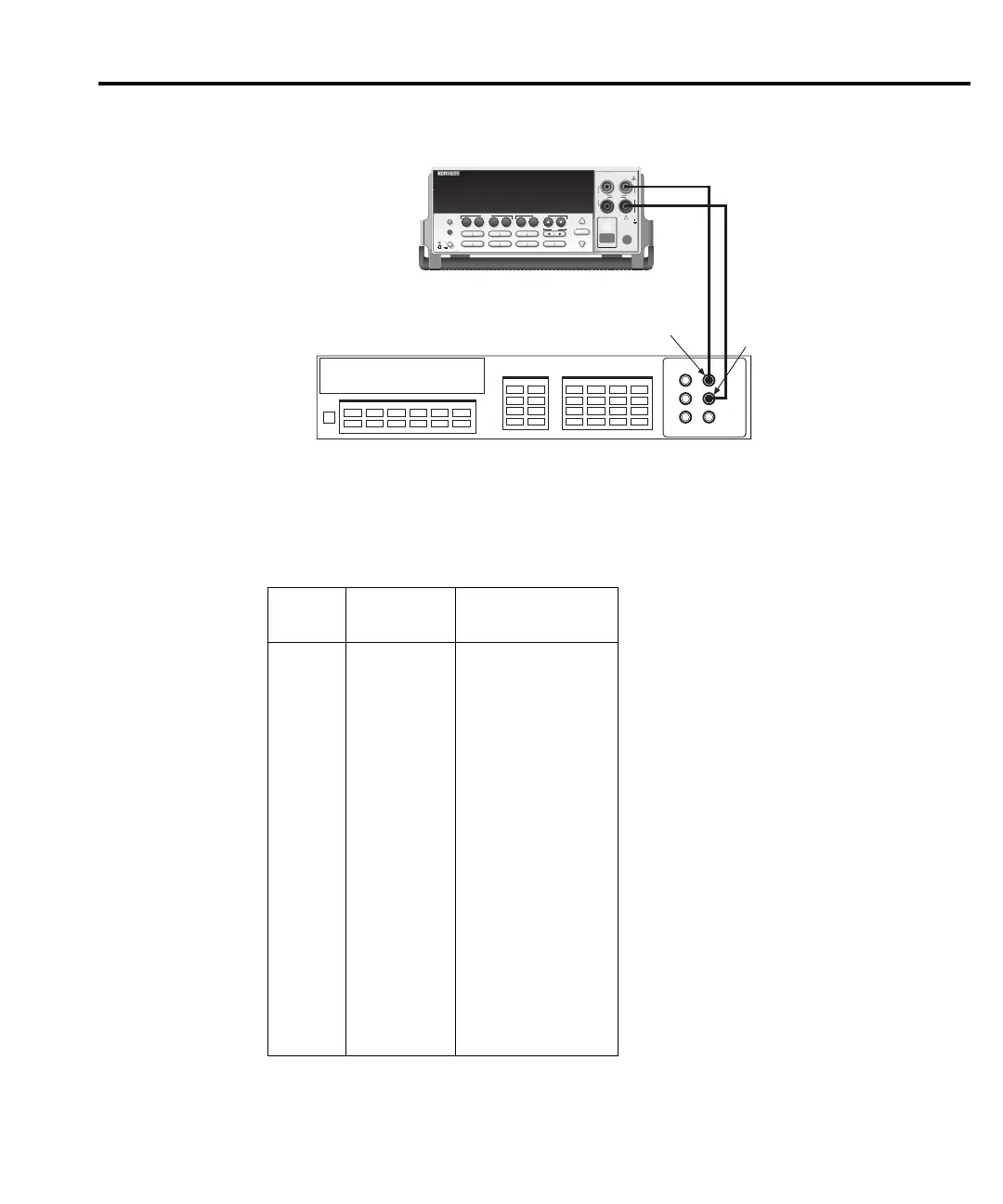

Figure 2-1
Voltage
calibration
test connections
Calibration 2-11
2410-902-01.book Page 11 Monday, November 7, 2005 2:49 PM
