Tektronix MSO3000 Series User Manual

Application E xamp les
Separating the Signal from Noise

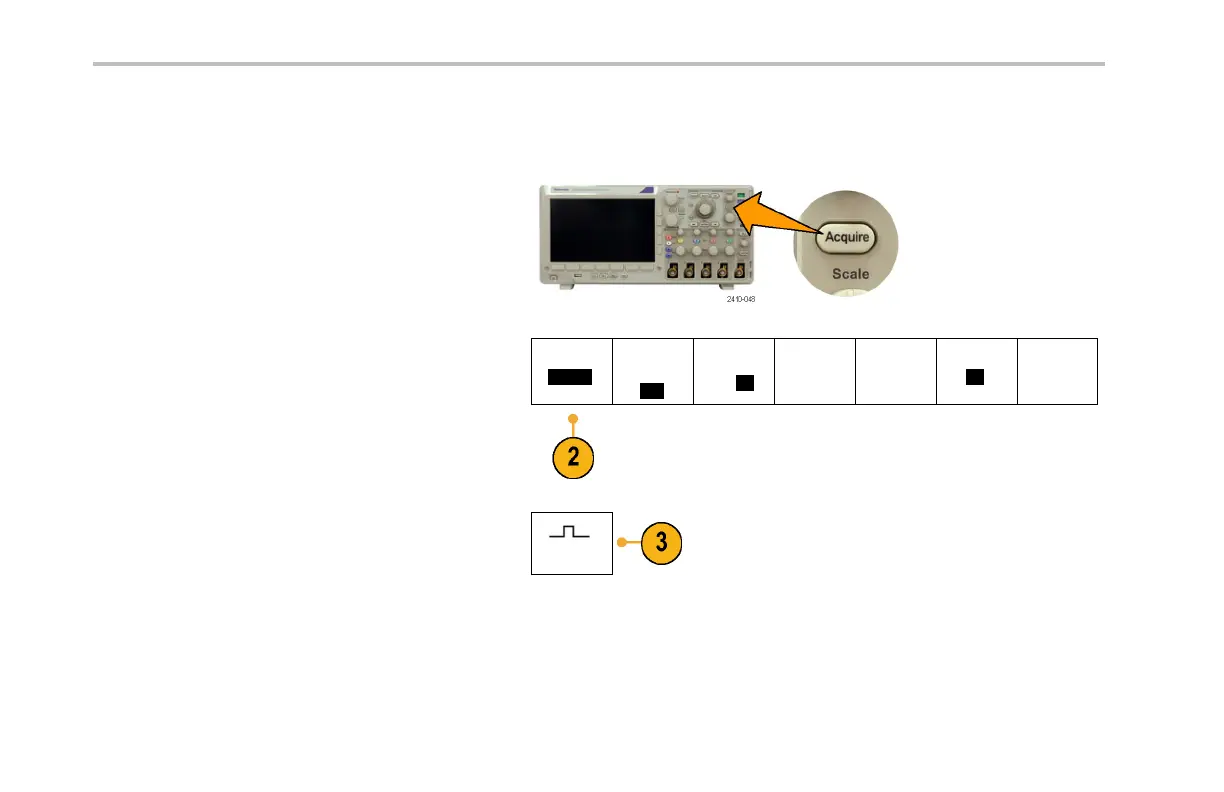

Now you want to analyze the signal shape and ignore the noise. To reduce ran dom noise in th e oscilloscope display:
1. Push Acquire.
2. Push Mode.
Mode
Sample
Record
Length
10K
Delay
On |
Off
Set Horiz.
Position to
10%
Waveform
Display
XY Display
Off
3. Push Average on the side-bezel menu.
Average
244 DPO3000 Series Oscilloscopes User Ma nual
