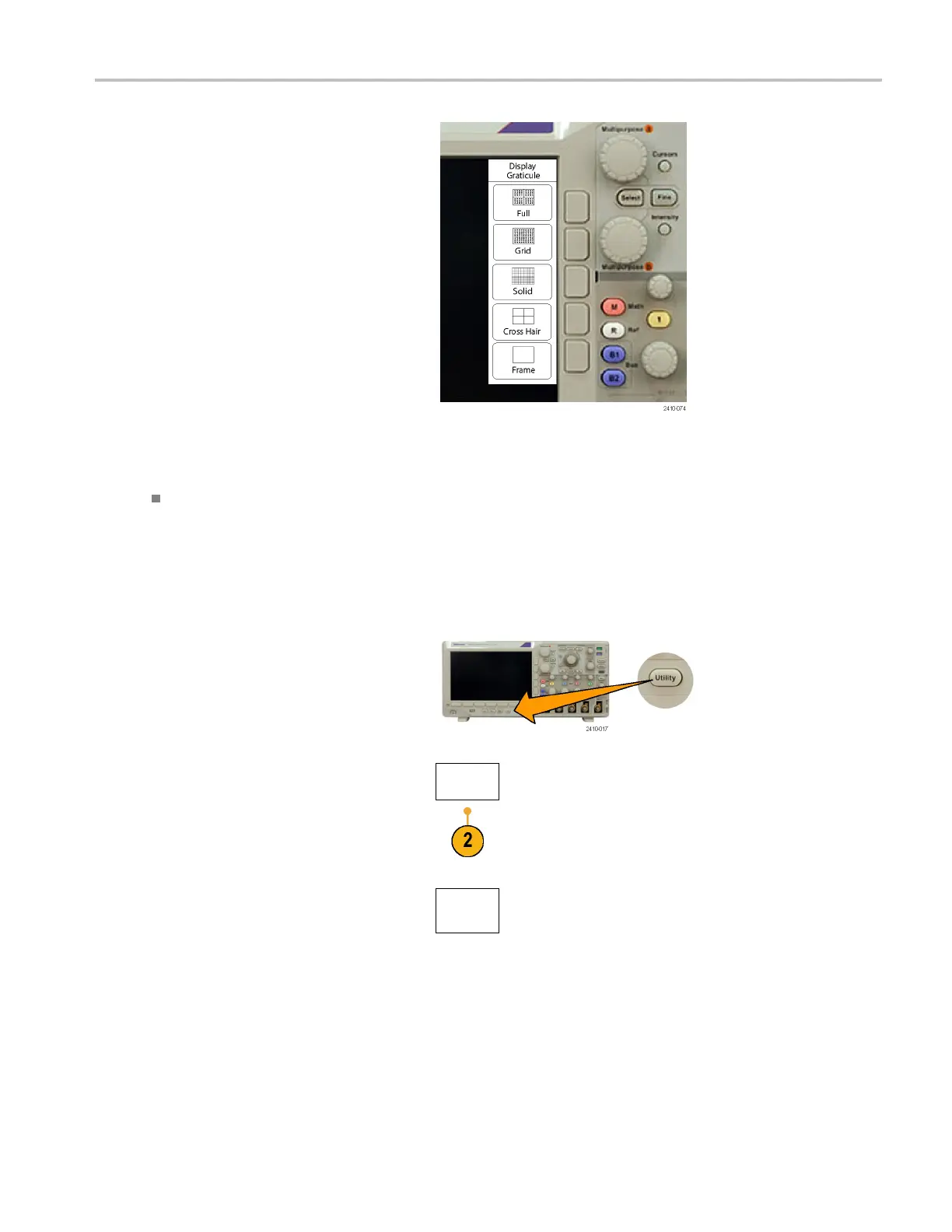

5. Select the desired style on the resulting side
menu.
The Frame grat
icule provides a clean
screen on which you can most easily read
automatic m easurement results and other
screen text.
The Fu ll graticule can help y ou make cursor
measurements on hard copies.
The Grid, So
lid, and Cross H air graticules
provide compromises between Frame and
Full.
Quick Tips
You can display IRE and mV graticules. To do this, set the trigger type to video and set the vertical scale to
143 mV/division. (The 143 mV/division selection is available in the coarse vertical scale settings for the channel when
you set the trigger type to video.) The oscilloscope will automatically display the IRE graticule for NTSC signals, and
the mV graticule for other video signals (PAL, SECAM, H DTV, and custom).
Setting the LCD Backlight
1. Push Utility.
2. Push Utility Page on the lower menu.
Utility
Page
3. Turn multipurpose knob a and select
Display.
Display
MSO3000 and DPO 3000 Series Oscilloscopes User Manual 87
To Next Page
