Acquire the Sign
al
Acquire the Si
gnal
This section describes concepts of and procedures for setting up the oscilloscope to acquire the signal as you want it to.
Setting Up Analog Channels

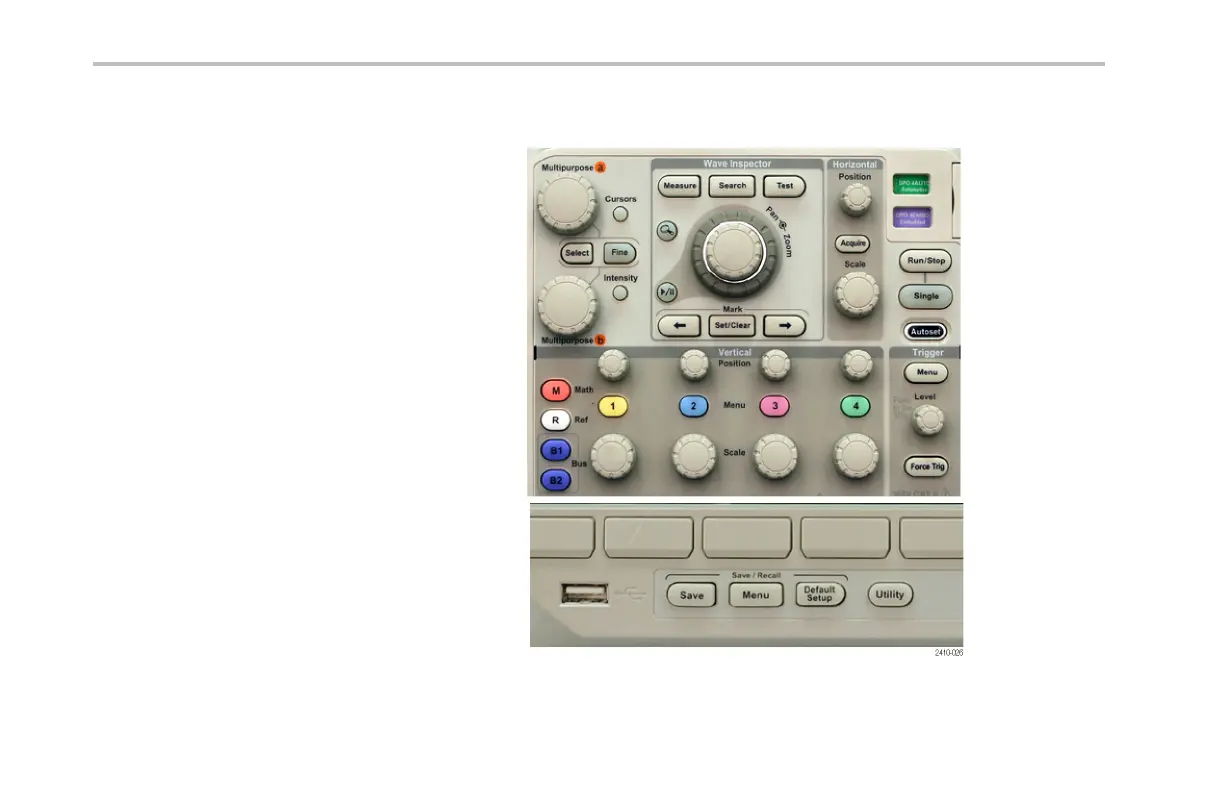

Use front-panel buttons and knobs to set up your instrument to acquire signals using the analog channels.

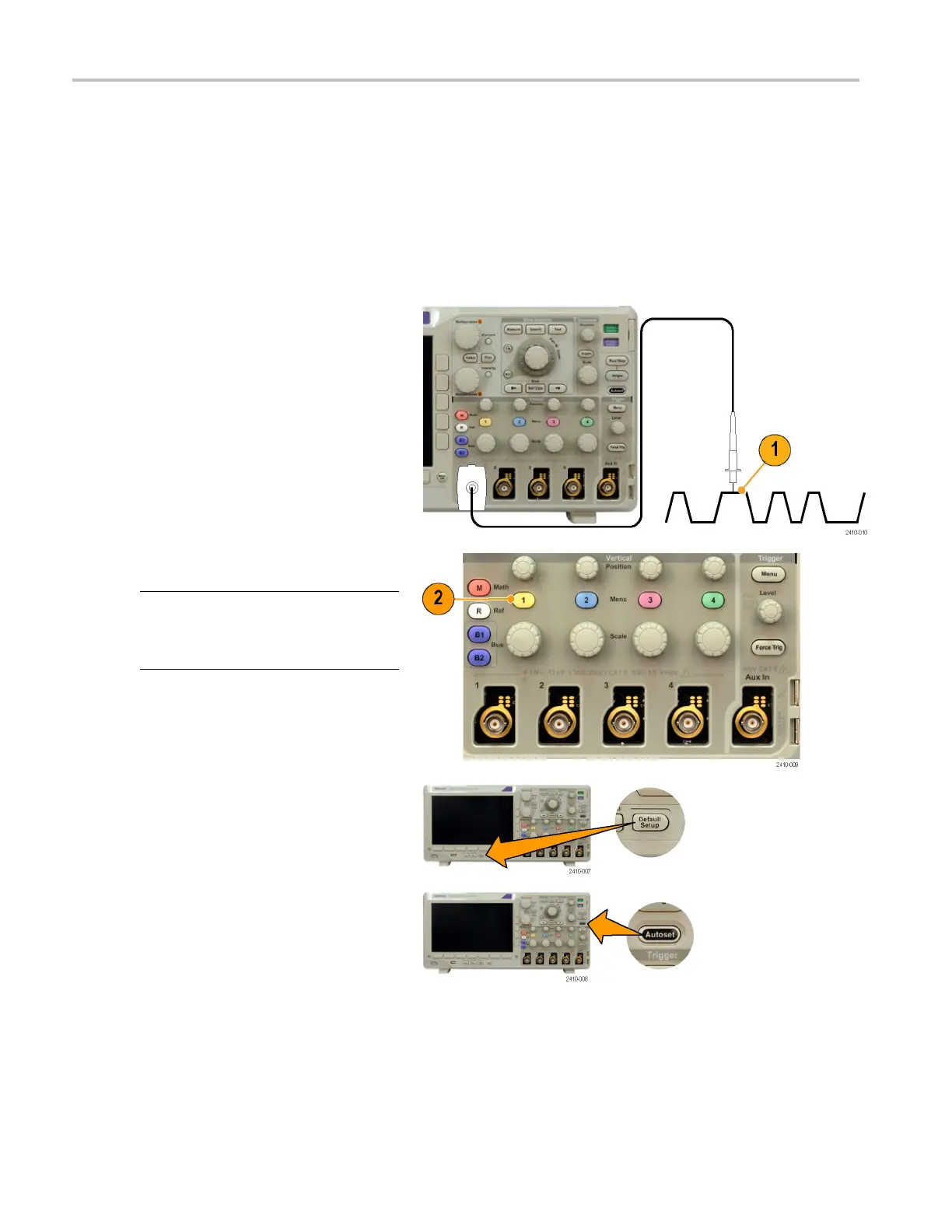

1. Connect the P6139B or TekVPI probe to
the input si
gnal source.
2. Select the input channel by pushing the
front-p
anel buttons.
NOTE. If you are using a probe that does not
supply probe encoding, set the attenuation
(probe f
actor) on the oscilloscope vertical
menu for the channel to match the probe.
3. Push Default Setup.
4. Push Autoset.
44 MSO3000 and DP O3000 Series Oscilloscopes User Manual
