Application Exa
mples
Troubleshooting Circuits Using Parallel Buses
In this example, you are monitoring a parallel bus with your oscilloscope. You can use your MSO3000 Series oscilloscope
with its 16 digital channels to analyze the bus. The MSO3000 Series will not only let you s ee the on-off status of the
signals, but will also decode the parallel bus signals for you.
Basic Strategy
First, you will display and acquire the d igital signals. Then, you will search through the data with the search/mark functions.
NOTE. The MSO3000 Series oscilloscopes support triggering and decoding on Parallel bus signals.

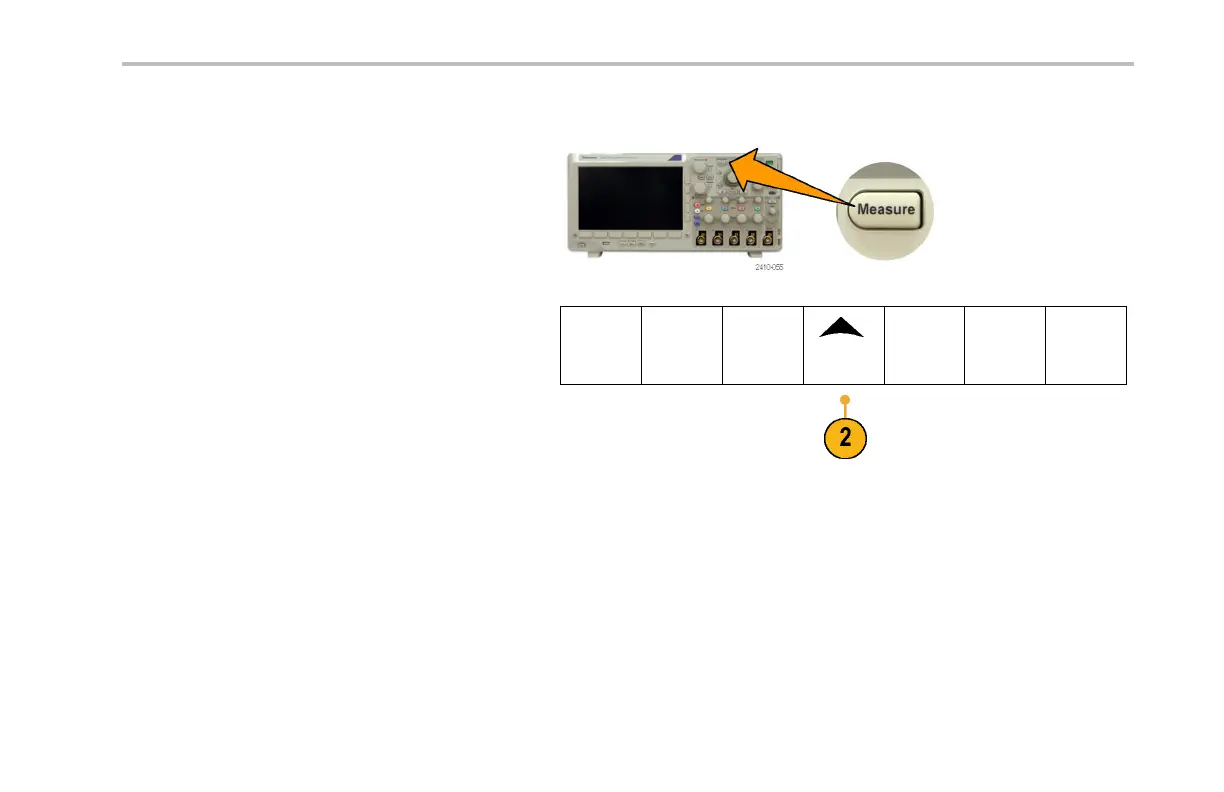

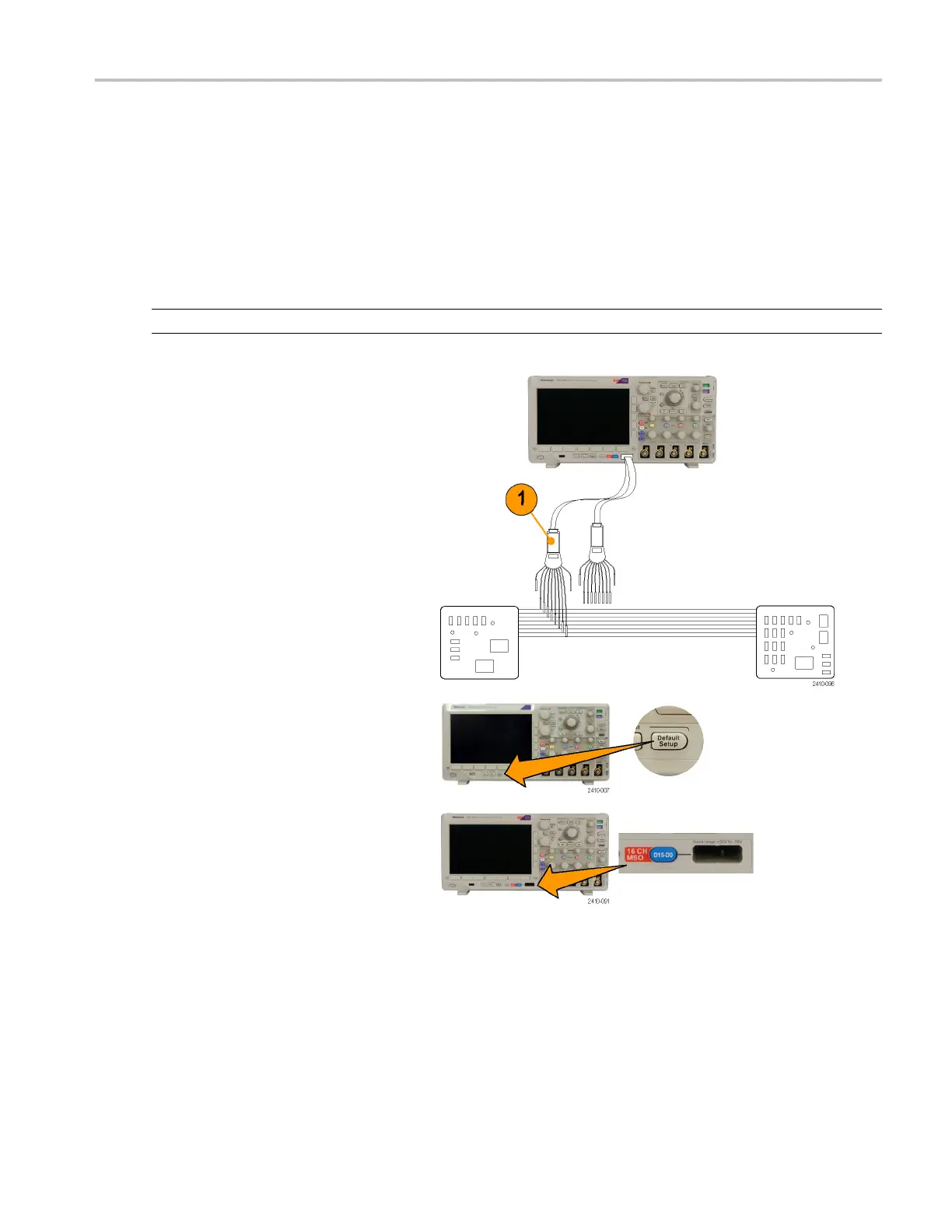

1. Connect the desired digital probe tips to
the desire
d test points. For simplicity, this
example connects to a 7-bit counter.
2. Push Default Setup. Then push the channel
1 button to remove the waveform from the
display.
3. Push D15-D0.
4. On the lower menu, push D15-D0 On/Off
and then on the side menu, push Turn On
D7-D0 to display the digital w aveforms. To
turn off a channel, use multipurpose knob a
to select the channel and push Display on
thesidemenutoselectOff.
MSO3000 and DPO 3000 Series Oscilloscopes User Manual 163
