Acquire the Sign
al
2. If you change your mind, push Undo
Default Setup to undo the last default
setup.
Undo
Default
Setup
Using Autose
t
Autoset adjusts the instrument (acquisition, horizontal, trigger, and vertical controls) such that it displays four or five waveform
cycles for analog channels with the trigger near the midlevel, and ten cycles for digital channels.
Autoset works with both the analog and digital channels.
1. Connect the analog probe, and then select
the input channel. (See page 44, Setting
Up Analog Channels.)
Connect the digital probe and select the
input channel. (See page 66, Setting Up
Digital Channels.)

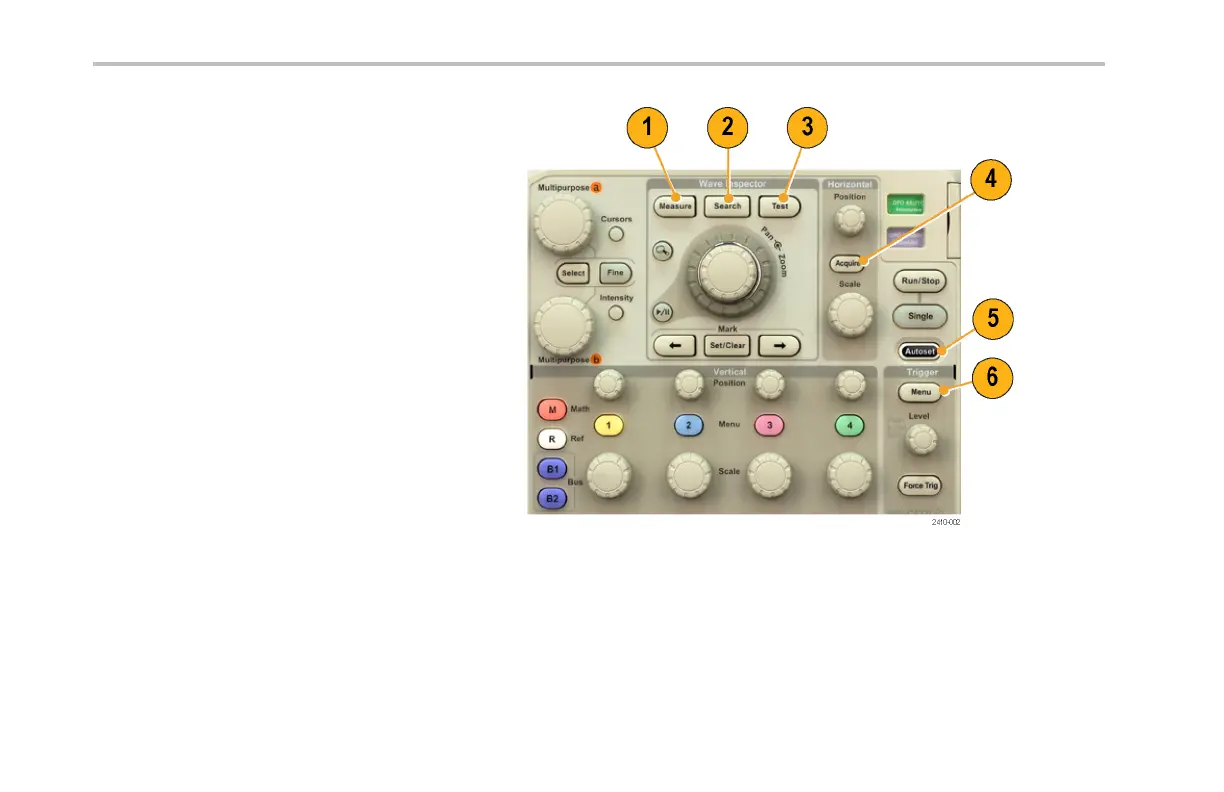

2. Push Autoset to execute an Autoset.
3. If desired, push Undo Autoset to undo
the last Autoset.
Undo
Autoset
You can also disable the Autoset function if you want to set up a waveform manually. To disable or enable the Autoset function:
1. Push and hold Autoset.
2. Push and hold Menu Off.
48 MSO3000 and DP O3000 Series Oscilloscopes User Manual
