Installation
Compensating a Passive Voltage Probe
Whenever you attach a passive voltage probe for the first time to any input channel, compensate the probe to match it to
the corresponding oscilloscope input channel.
To properly compensate your passive probe:
1. Follow the steps for the functional
check. (See page 10, Functional
C
heck.)
2
.
C
heck the shape of the displayed
waveform to determine if your
probe is properly compensated.
P
roperly compensated
Under compensated Over compensated
3. If necessary, adjust your probe.
Repeat as needed.
Quick Tips
Use the shortest possible ground lead
and signal path to minimize probe-induced
ringing and distortion on the measured
signal.
Signal with a short ground lead
Signal wi th a long ground lead
Application Module Free Trial

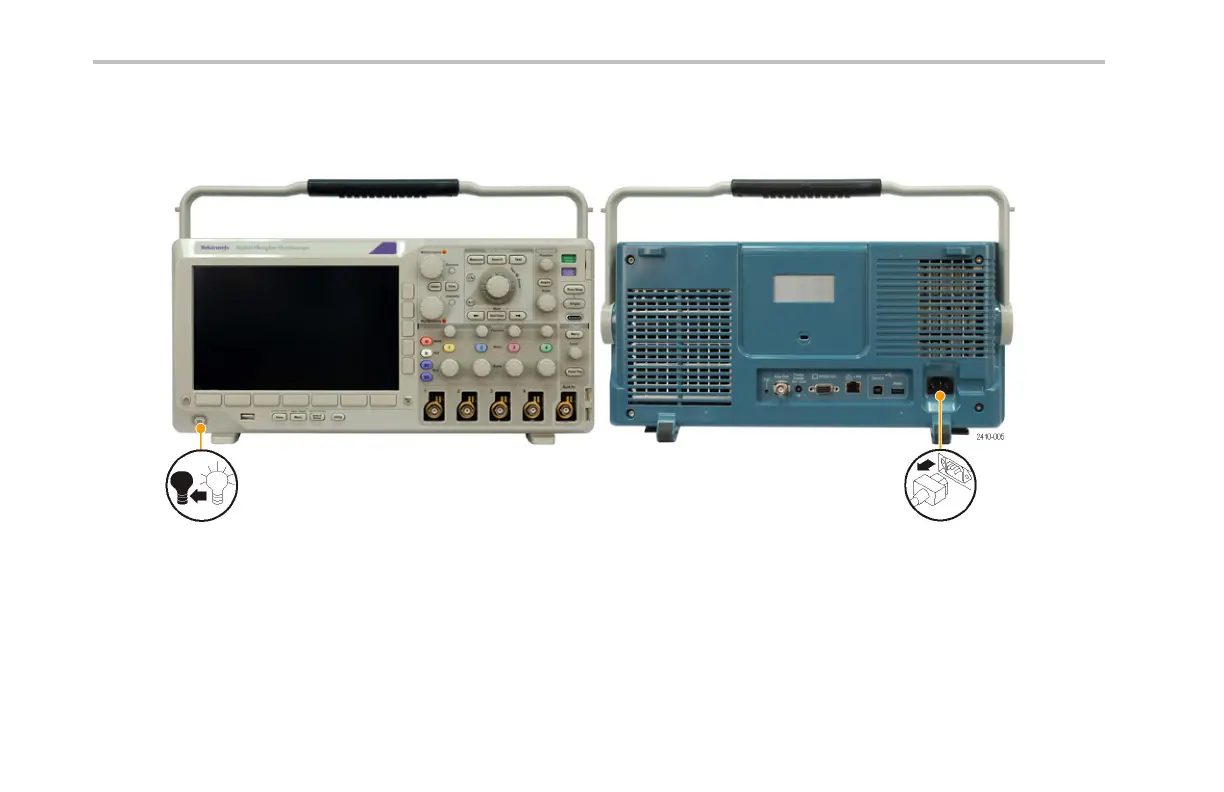

A 30-day free trial is available for all application module licenses not installed in y our oscilloscope. The trial period begins
when you power on the oscilloscope for the first time.
After 30 days, you must purchase the module if you want to continue using the application. To see the date when your free
trial period expires, push U tility the front-panel, push Utility Pag e on the lower menu, use multipurpose knob a to select
Config, and push About on the lower menu.
12 MSO3000 and DP O3000 Series Oscilloscopes User Manual
