Installation

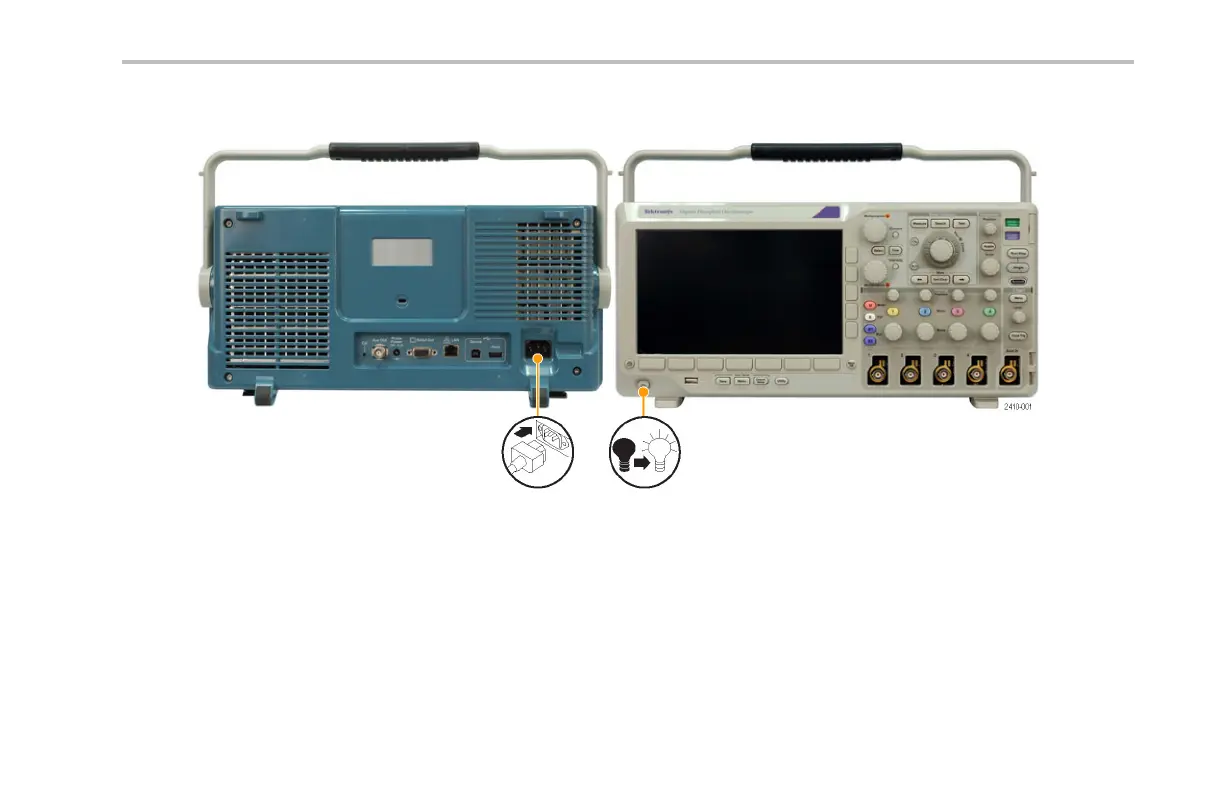

2. Power on the osc
illoscope.
3. Connect the probe connector to
oscilloscope channel 1 and the probe tip
and reference lead to the PROBE COMP
terminals on the oscilloscope front-panel.
4. Push Default Setup.
5. Push Autoset. The screen should now
display a square wave, approximately
2.5 V at 1 kHz.
If the signal appears but is misshapen,
perform the procedures for compensating
the probe. (See page 12, Compensating
a Passive Voltage Probe.)
If no signal appears, rerun the procedure.
If this does not remedy the situation,
have the instrument serviced by qualified
service personnel.
MSO3000 and DPO 3000 Series Oscilloscopes User Manual 11
