Installation

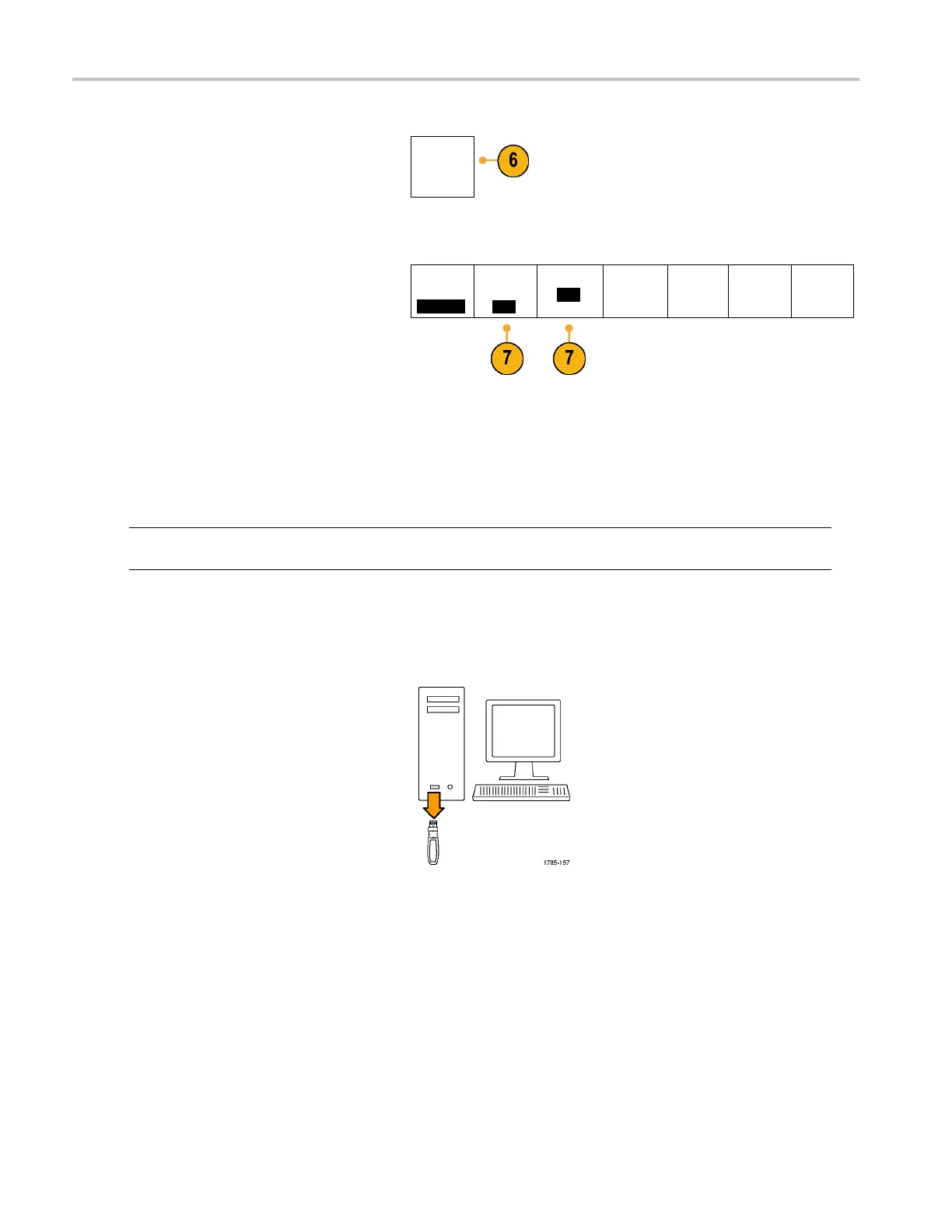

6. Push OK Compensate Signal Paths from
the resulting side menu.
OK Com-
pensate
Signal
Paths
The calibrati
on will take approximately
10 minutes to complete.
7. After calibr
ation, v erify that the status
indicator on the lower menu displays Pass.
Utility
Page
Calibration
Signal
Path
Pass
Factory
Pass
If it does not, then recalibrate the instrument
or have the i
nstrument serviced by qualified
service personnel.
Service pe
rsonnel use the factory calibration
functions to calibrate the internal voltage
references of the oscilloscope using
external s
ources. Refer to your Tektronix
field office or representative for assistance
with factory calibration.
NOTE. Signal Path C ompensation does not include calibration to the probe tip. (See page 12, Compensating a Passive
Voltage P
robe.)
Upgrad
ing Firmware
To upgrade the firmware of the oscilloscope:
1. Open up a Web browser and go to
www.tektronix.com/software. Proceed to
the software finder. Download the latest
firmware for your oscilloscope on your PC.
Unzip the files and copy the firmware.img
file into the r oot folder of a USB flash drive.
20 MSO3000 and DP O3000 Series Oscilloscopes User Manual
