Installation
Securing the Oscilloscope

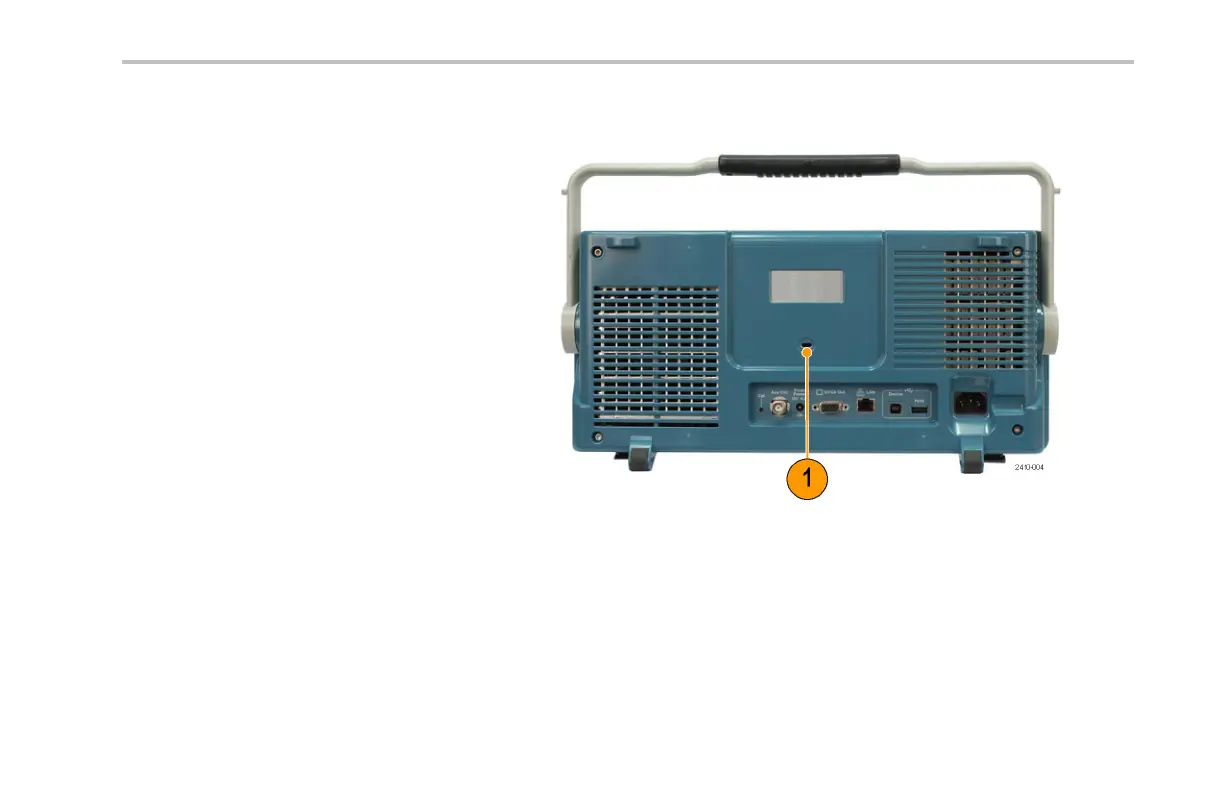

1. Use a standard laptop computer style
security lock
to secure your oscilloscope
to your location.
Powering
On the Oscilloscope
Ground the Oscilloscope and Yourself
Before p
ushing the power switch, connect the oscilloscope to an electrically neutral reference point, such as earth ground.
Do this by plugging the three-pronged power cord into an outlet g rounded to earth ground.
Grounding the oscilloscope is necessary for s afety and to take accurate measurements. The oscilloscope needs to share the
same ground as any circuits that you are testing.
If you a
reworkingwithstaticsensitive
components, ground yourself. Static
electricity that builds up on your body
can dam
age static-sensitive components.
Wearing a grounding strap safely sends
static charges on your body to earth ground.
MSO3000 and DPO 3000 Series Oscilloscopes User Manual 9
