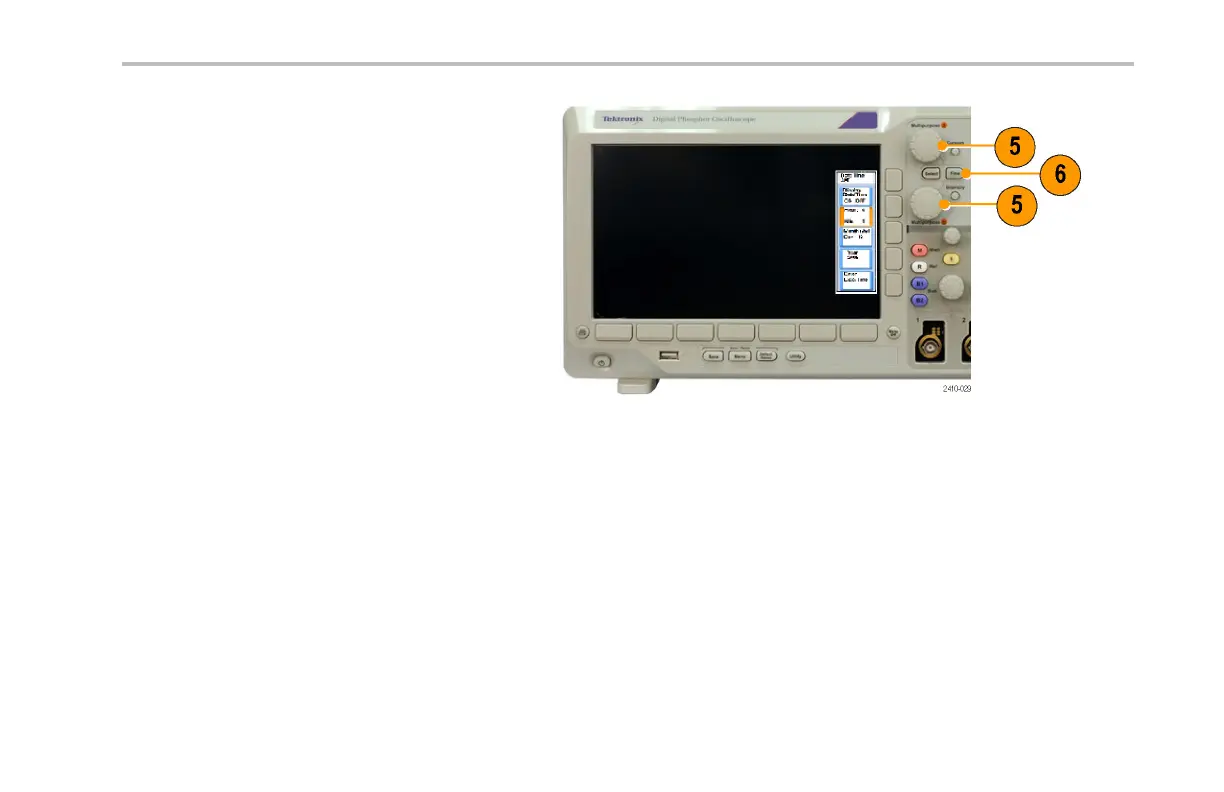

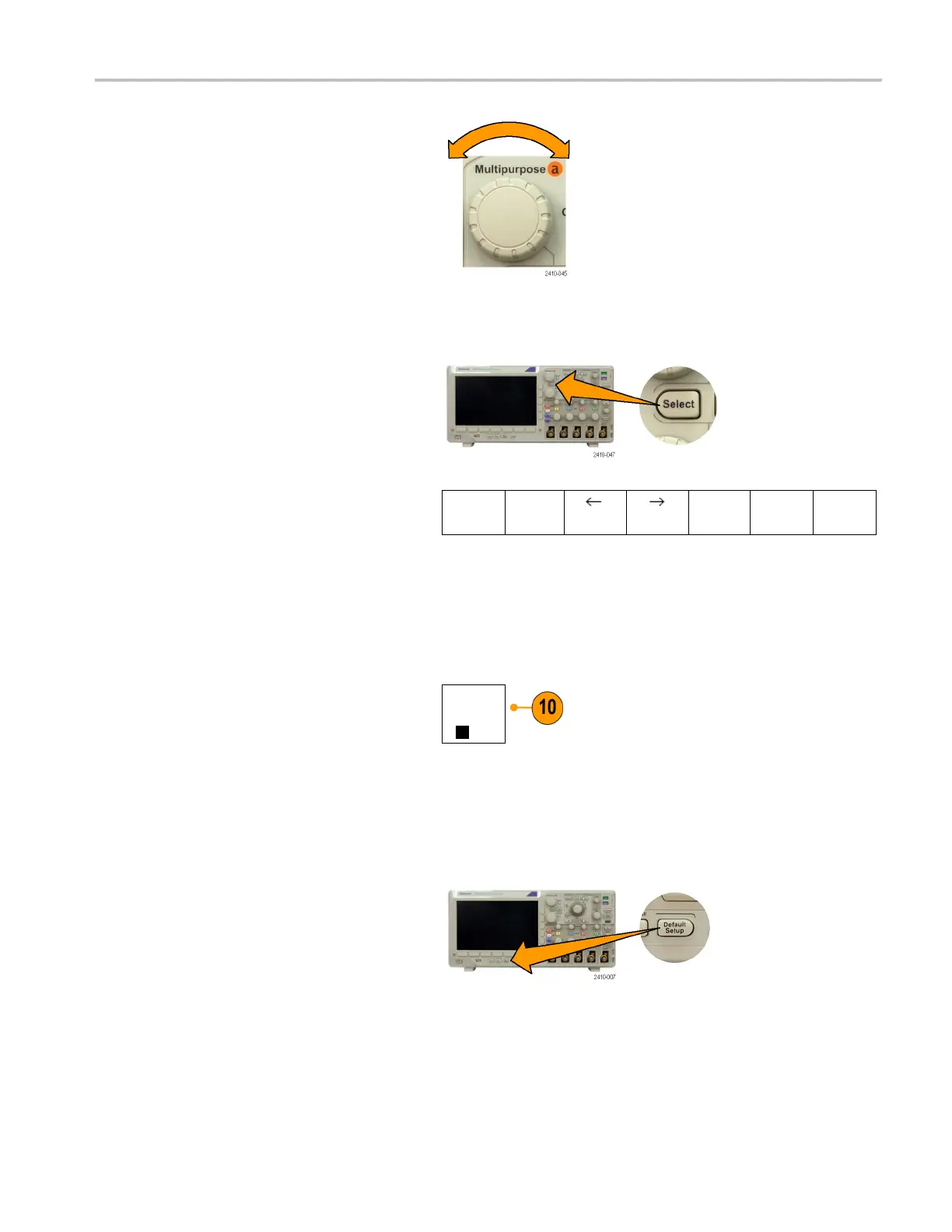

7. Turn multipurp
ose knob a to scroll through the
list of letters, numbers, and other characters
to find the character in the name that you
want to enter.
ABCDEFGHIJK
LMNOPQRSTUVWXYZ
abcdefghijklmnopqrstuvwxyz
0123456789_=+-!@#$%^&*()[]{}<>/~'”\|:,.?
8. Push Select or Enter Character to let the
oscilloscope know that you have picked the
proper cha
racter to use.
You can use the lower menu to edit the label
as needed.
Enter
Character
Back
Space
Delete
Clear
9. Continue scrolling and pushing Select until
you have entered all the desired characters.
For another label, push the side and lower
menu arrow keys to reposition the insertion
point.
10. Push Display Labels and select On to see
the label.
Display
Labels
On|Off
Using the Default Setup
To return the oscilloscope to its default settings:
1. Pus
h Default Setup.
MSO3000 and DPO 3000 Series Oscilloscopes User Manual 47
