Acquire the Sign
al
2. Push Label on t
he lower menu to create a
label, such as for channel 1 or B1.
Label

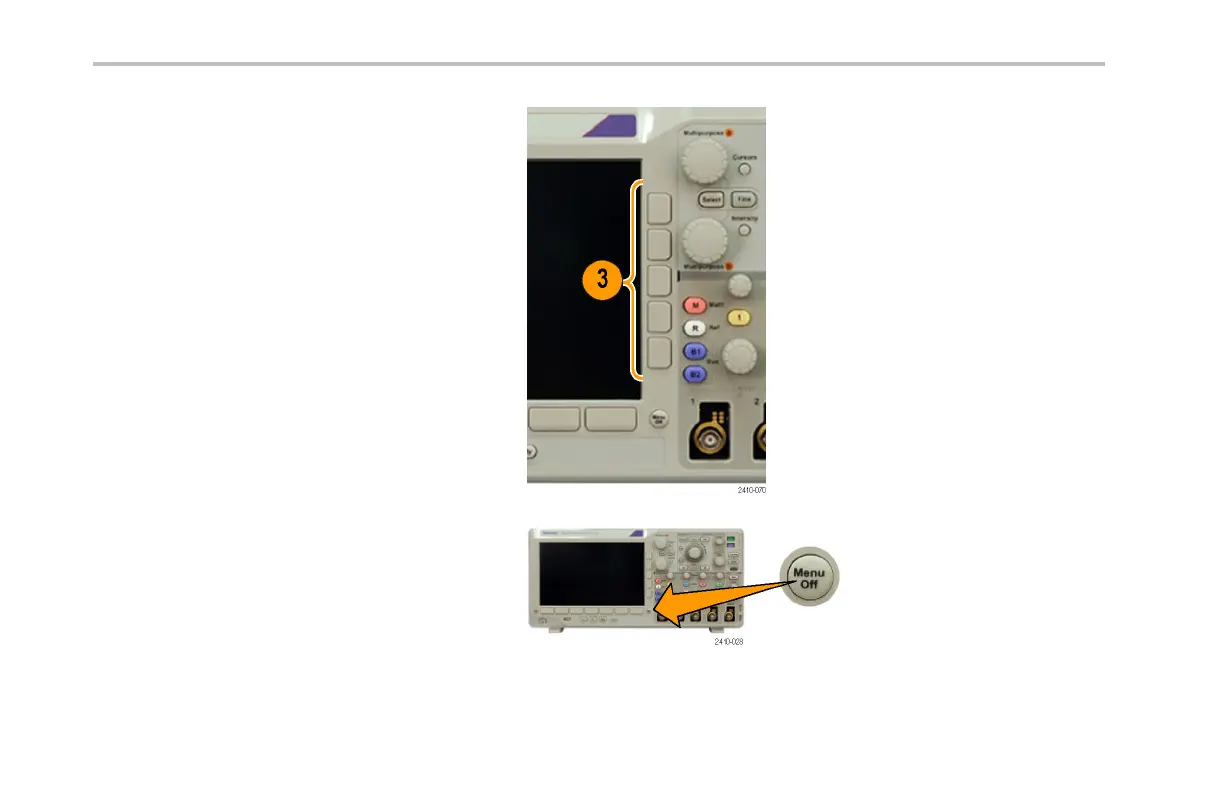

3. Push Select Preset Label to view a lis t of
labels.
Select
Preset
Label
4. Turn multipurpose knob b to scroll through
the list to fi
nd a suitable label. You can e dit
the label after you insert it if necessary.
5. Push Insert Preset Label to add the label.
Insert
Preset
Label
If you ar
e using a USB keyboard, use the
arrow keys to position the insertion point and
edit the inserted label, or type in a new label.
(See pa
ge 28, Connecting a U SB Keyboard
to Your Oscilloscope.)
6. If you do not have a USB keyboard
connected, push the side and lower m enu
arrow keys to position the insertion point.
46 MSO3000 and DP O3000 Series Oscilloscopes User Manual
