Application Exa
mples

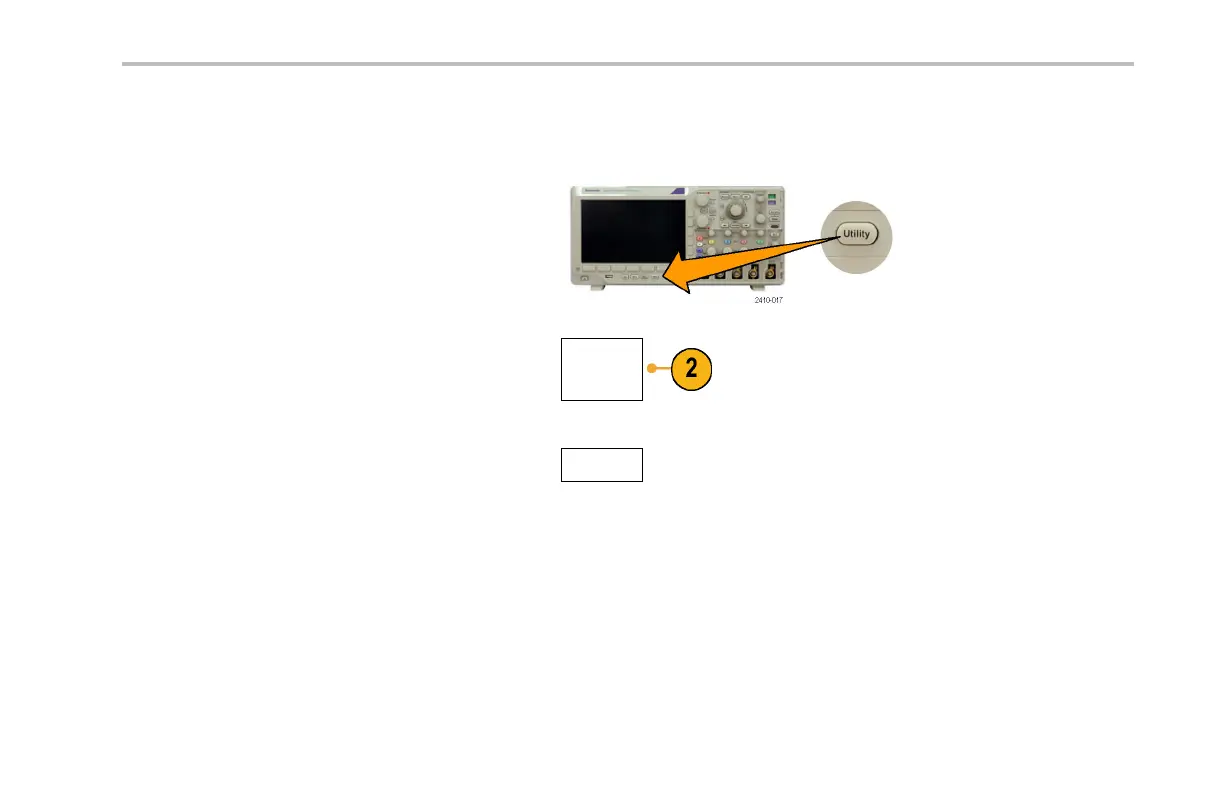

3. Push Add Measu
rement.
Add Mea-
surement
Remove
Measure-
ment
Indicators
More
Bring
Cursors
On Screen
4. If needed, on the side menu, push Source
and turn m ul
tipurpose knob a to selec t the
channel from which you want to measure.
Turn multipurpose knob b to select the
Positive Pu
lse Width measurement. Push
OK Add Measurement on the side menu.
5. Push More repeatedly until you select
Gating from the pop-up menu.
6. Select Between Cursors on the side
menu to choose measurement gating using
cursors
.
Between
Cursors
7. Place one cursor to the left and one cursor
to the right of the second pulse.
8. View the resulting width m easurement
(160 ms) for the second pulse.
Analyzing Signal Detail
In this example, you have a noisy signal
displayed on the oscilloscope, and you need
to know more about it. You suspect that the
signal contains much more detail than you
can currently see in the display.
MSO3000 and DPO 3000 Series Oscilloscopes User Manual 147
