Application Exa
mples

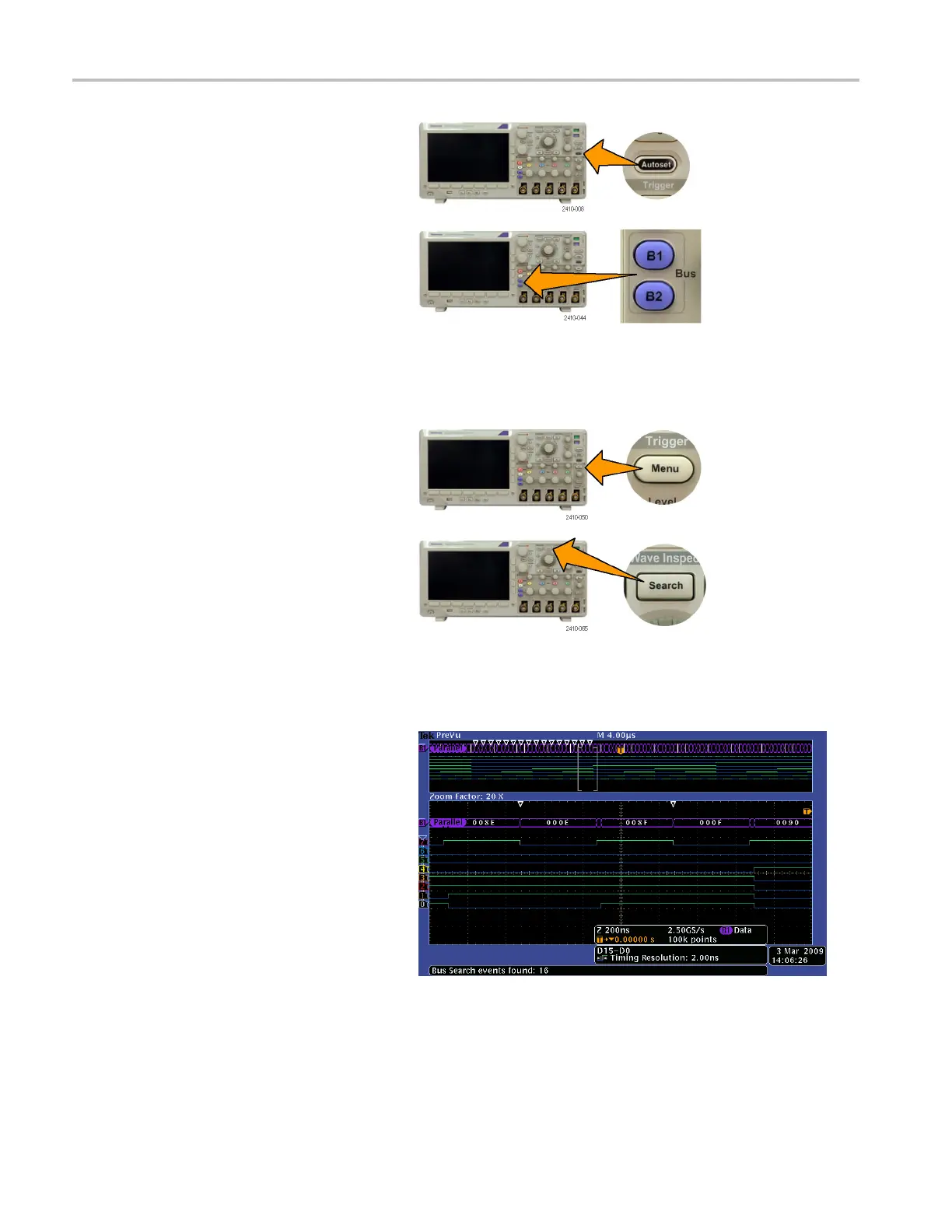

5. Push Autoset.
6. Push B1, and select Parallel as the bus type.
On the lower m
enu, push Define Inputs
and enter the parameters for your bus for
Clocked Data, Clock Edge, the Number of
Bits, and De
fine Bits.
7. Turn the Horizontal Scale k nob to adjust the
timebase.
As you increase the time per division, you
will see more data appear in the Bus display.
8. Push Trigger Men u. Push Type, select Bus,
and enter the parameters of the trigger, such
as the Source Bus and Data. Define the
Mode and Holdoff as desired.
9. Push Search on the front-panel, push
Search o
n the lower menu, and select On
on the side menu.
10. Push Search Type. Use the multipurpose
knob a to select Bus and then push Data.
Use the multipurpose knobs a and b to
define the data value.
11. Push Previous and Next Mark to navigate
through the record.
12. P ush Zoom, and Pan to the areas of interest
to analyze the results.
164 MSO3000 and DP O3000 Series Oscilloscopes User Manual
