Analyze Wavefor
mData
8. View the c ursor
and the cursor r eadout.
NOTE. On digital channels, you can take timing
measurements with cursors, but not amplitude
measurements
.
9. Display multiple waveforms on the screen
by pushing one or more of the channel 1
through 4 buttons or, if you are using an
MSO3000B, by pushing D15–D0.
10. P ush and hold Cursors to display the cursor
menu again.

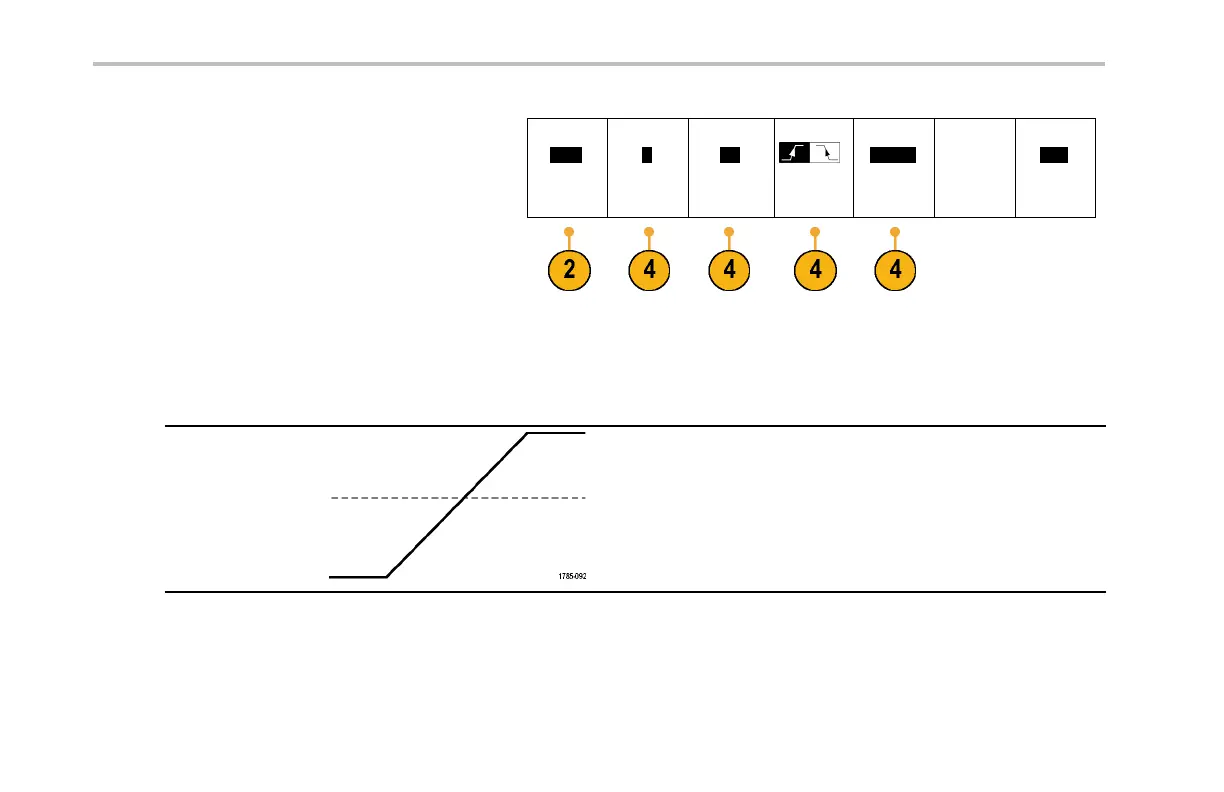

11. Push Source on the lower menu.
A pop-up menu will appear. The default
menu selection of Auto will cause the
cursors to take measurements on the
selected (last used) waveform.
12. Turn multipurpose knob a to choose a
channel to measure other than the one
pointed to by Auto.
13. Push Menu Off to remove the pop-up menu.
