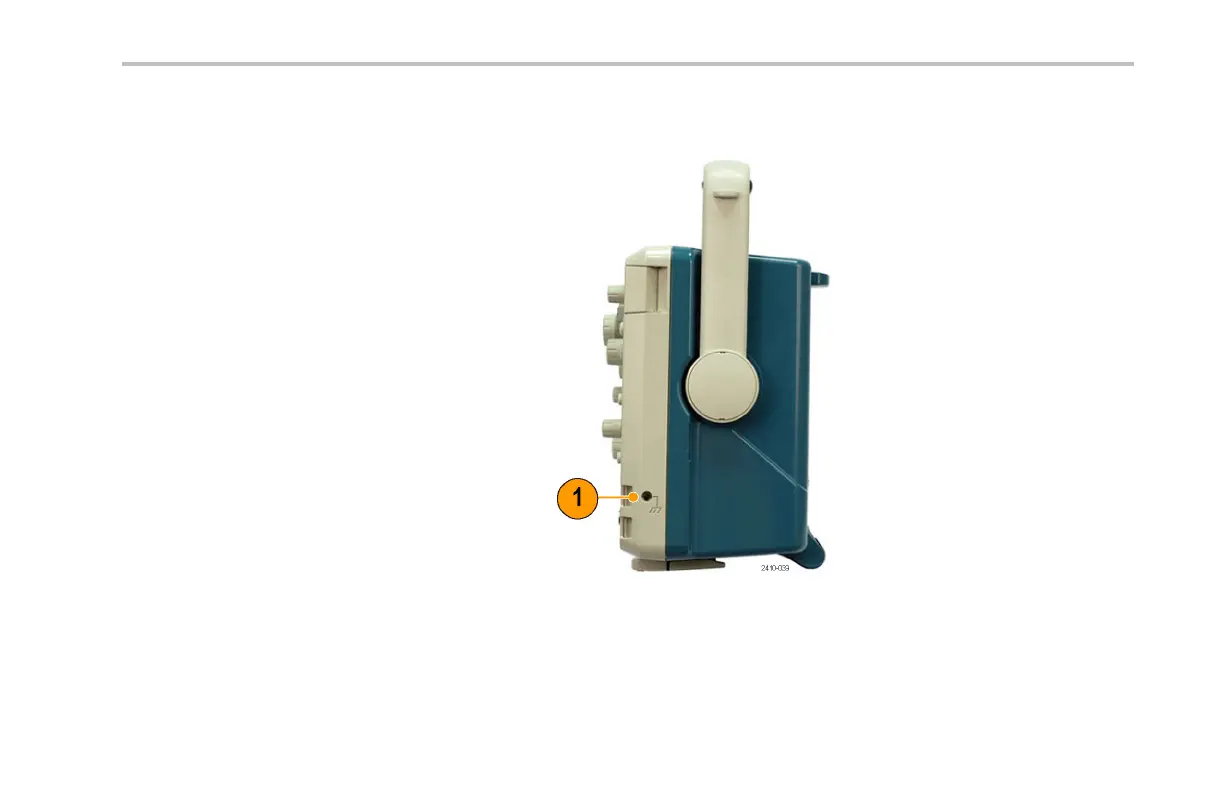

Acquire the Sign
al
7. Turn multipurp
ose knob a to scroll through
the list of digital channels. Turn multipurpose
knob b to position the selected channel.
As you positio
n channels close to each other
on the display, the oscilloscope groups the
channels, and adds the group to the pop-up
list. You can
select the group from the list to
move all the channels in the group instead of
individual channels.
8. Push Thresh
olds on the lower menu. You
can assign a different threshold value to
each pod.
9. Push Edit L
abels on the lower menu and
create the label. You can create labels
through the front-panel or with an optional
USB keyboa
rd. (See page 45, Labeling
Channels and Buses.)
10. Push MagniVu on the lower menu to
increase
the timing resolution.
MSO3000 and DPO 3000 Series Oscilloscopes User Manual 67
