Save and Recall I
nformation

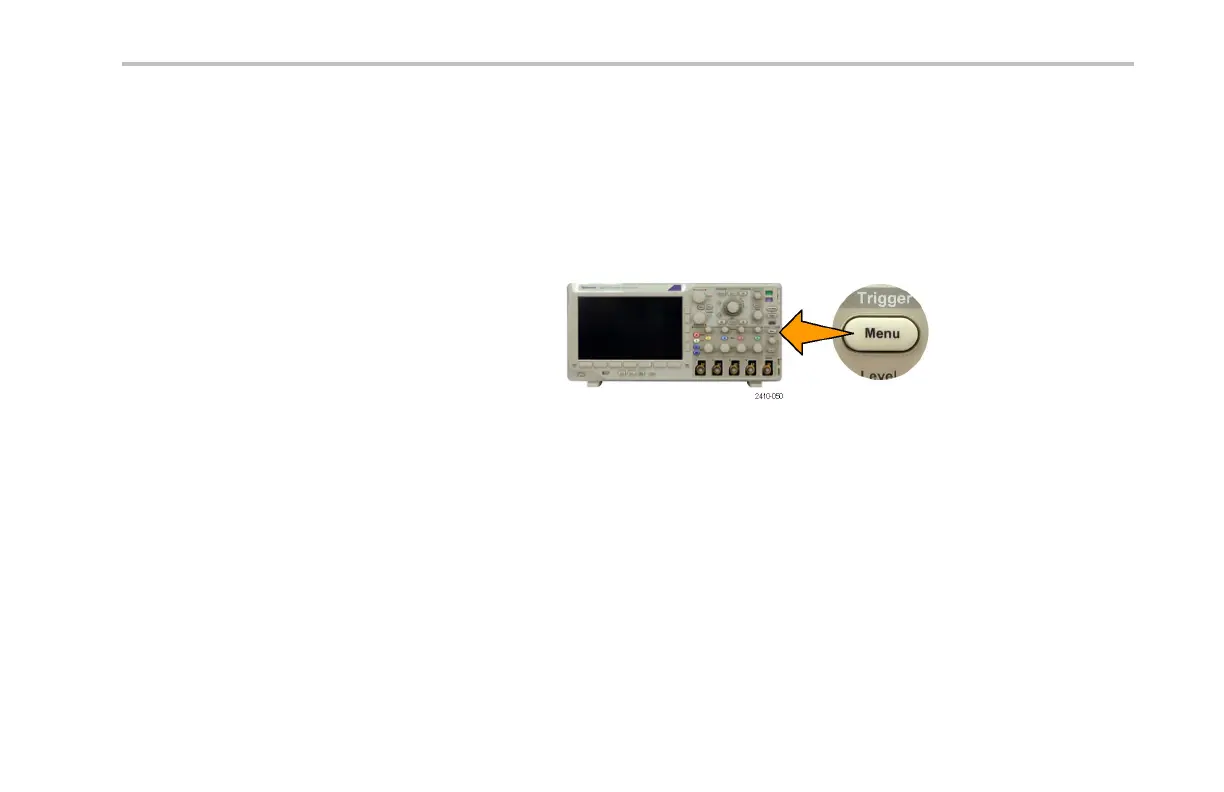

2. Push Save Screen Image, Save Waveform,
or Save Setup.
Save
Screen
Save
Waveform
Save
Setup
Recall
Waveform
Recall
Setup
Assign
Save|to
Setup
File
Utilities
3. For waveform or setup files, enter the file
manager by p
ushing the side menu To File
item.
To File
4. Turn multipurpose knob a to scroll through
the file str
ucture. (See page 124, External
file structure.)
5. Push Sel
ect to open or close file folders.
6. Push Ed it File Na me.
Edit the file name the same way you edit
labels for c hannels. (See page 45, Labeling
Channels and Buses.)
7. Push Menu Off to cancel the save operation,
or push an OK Save side menu item to
complete the operation.
OK Save
MSO3000 and DPO 3000 Series Oscilloscopes User Manual 125
