Model 880 DEPOSITION CONTROLLER
y
SECTION 3.XX
e page 114 of 275 ^
SECTION 3.19
OPTions/INFo: product identification, diagnostics, etc.
OPTIONS/INFO: From the Run Time screen, press the fixed MENU key. Press the EXECUTIVE MENU
key on the MAIN menu. (Press the BYE key to return to the MAIN menu or press the fixed STATUS key
to return to the Run Time screen.) OPT/INF is a selection on the EXECUTIVE menu. The information is
intended to be relayed to the factory for the purpose of identification and diagnostics. The information
strings contain: software Version #s, checksums, serial#s, build codes, installed option cards, option codes,
error codes, PCB hex code identifiers, frequency. There can be up to six lines of info per page, MORE
shows next page.

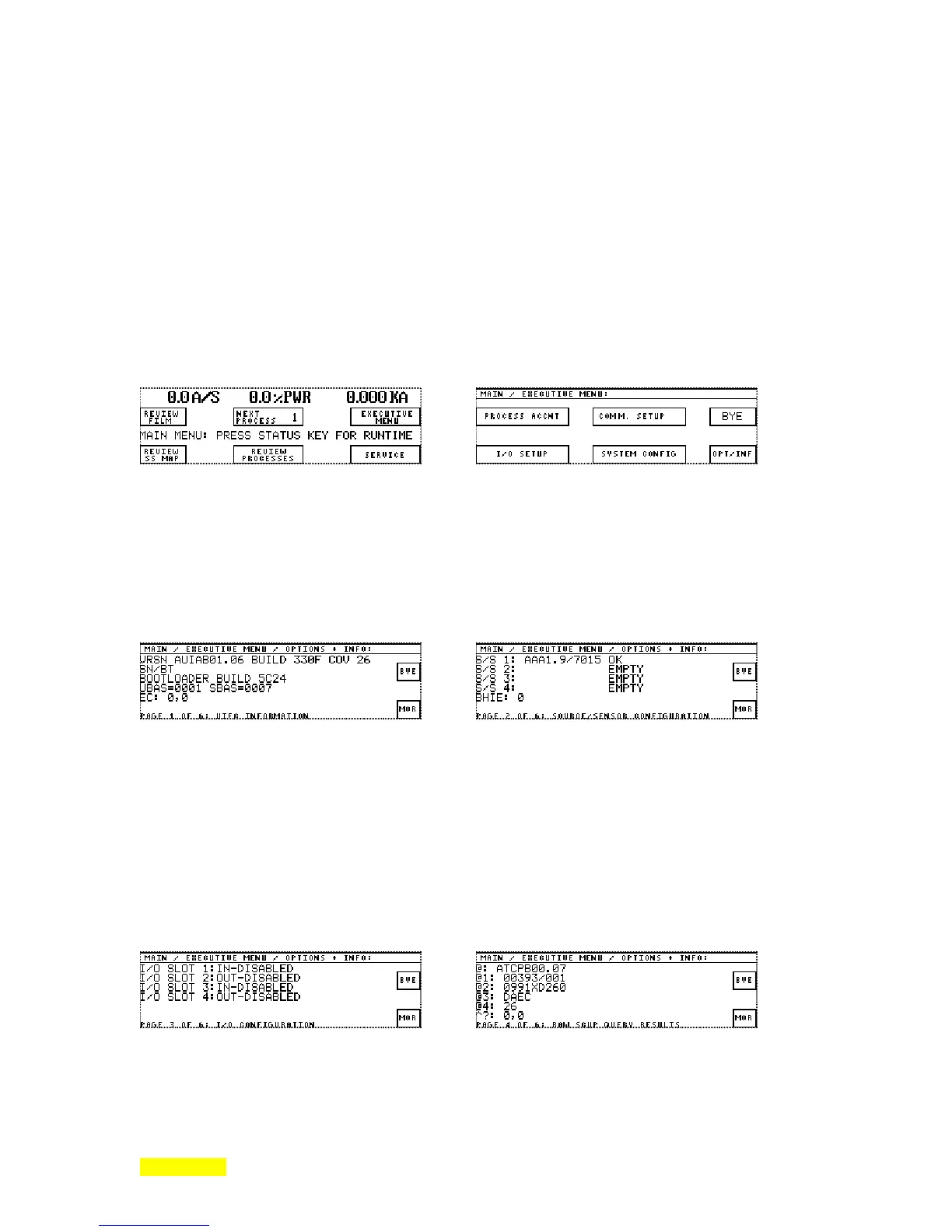

Main Menu Executive Menu
Options/Info, page 1 of 6 (user interface bd.) Options/Info, page 2 of 6 (source sensor bd.)
S/W Version, Build/CRC, SCUP COV S/W code version / CRC each bd.
Serial number / Build type OK
=
present, enabled, working
. OK-Unused = not enabled
Bootloader Build: CRC of BTLR code MIA! = enabled but not physically present
UBAS min. ver of UIFC/SBAS min. ver of SCUP Incompatible! = beyond s/w family compatibility
intercommunications Failed = source sensor board has failed
Error Code (Sys Trap) BHIE: if not zero, cycle power off/on, (interrupt
[power up only] not rec'd from 1 or more SS bds.
[hold-bus]
)
Options/Info, page 3 of 6 (input/output bds.) Options/Info, page 4 of 6
Empty = no module detected, config'd empty SN / Build type
In-Disabled = disabled input card in this slot S/W version
Out-Disabled = disabled output card in this slot Configuration X CRC
Input = input card detected in this slot Bootloader CRC
Output = output card detected in this slot Covenant
In-Mia = missing card, enabled as if input present Error Code (Sys Trap)
Conflict-I = have output card where input bd called [power up only]
Out-Mia = missing card, enabled as if output present
Conflict-O = have input card where output bd called
??? = reply out of range [power up only]
To Next Page
