Model 880 DEPOSITION CONTROLLER
y
SECTION 4.XX
e page 142 of 275 ^

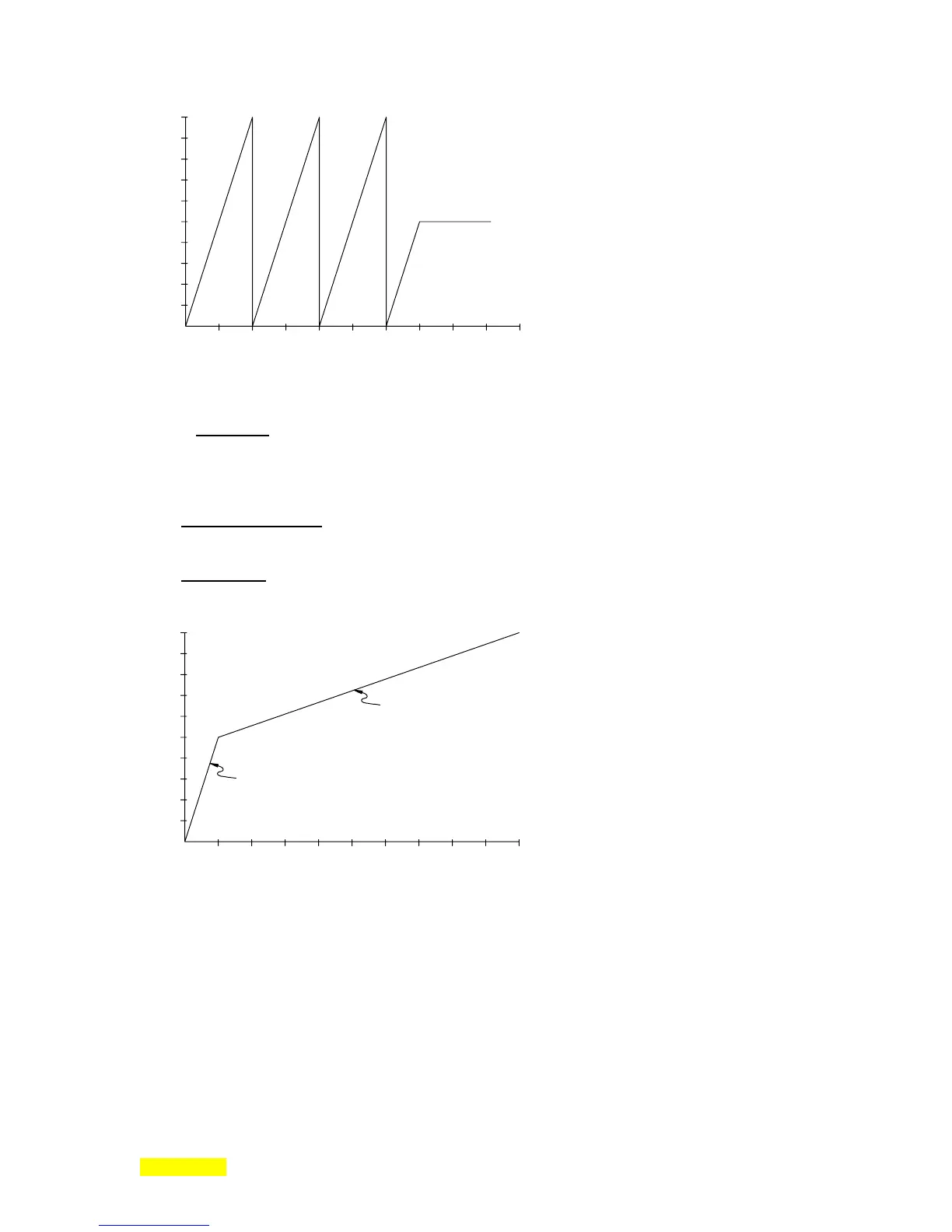

CHART RECORDING OF 3500Å FILM
ANALOG OUTPUT
FOR THICKNESS
3500Å
3000Å
2000Å
1000Å
V
O
L
T
S
1
2
3
4
5
6
7
8
9
10
Figure- 4.4: Example of Thickness Mode Recorder Output.
Rate Mode
- The analog recorder output for the rate mode is scaled for a full scale (999.9 Å/s)
reading of 10 volts. Readings up to 100.0 Å/s will be output with a resolution of 0.1 Angstrom and values
above 100.0 Angstroms will be output with a resolution of 1.0 Å/s. This method allows a continuous
recorder accuracy of at least 0.3% and also provides a unique output voltage for any rate value within the
displayable range of values. This output is unipolar with negative rates clamped at zero volts.
Rate Deviation Mode
- linear from 0 to ±999.9 A°/S and 0 to 10 Volts. 0 to 999.9 A°/S generated
by voltages between (and including) 5 and 10 volts. 0 to -999.9 A°/S generated by voltages between (and
including) 5 and 0 volts. In other words, zero rate deviation is midscale at 5 volts.
Power Mode
- The analog recorder output for the power mode is scaled for a full-scale (100%)
reading of 10 volts.
RATE - ÅNGSTROMS / second
ANALOG OUPUT
FOR RATE
Slope 5.555 mv per Å/s
between 100 Å/s and 1000 Å/s
Slope 50 mv per Å/s
between 0 and 100 Å/s
100
200 300
400 500 600
700
800 900 1000
V
O
L
T
S
1
2
3
4
5
6
7
8
9
10
Figure- 4.5: Example of Rate Mode Recorder Output.
