Model 880 DEPOSITION CONTROLLER
y
SECTION 5.XX
e page 176 of 275 ^
Example 2: Editing of a rung

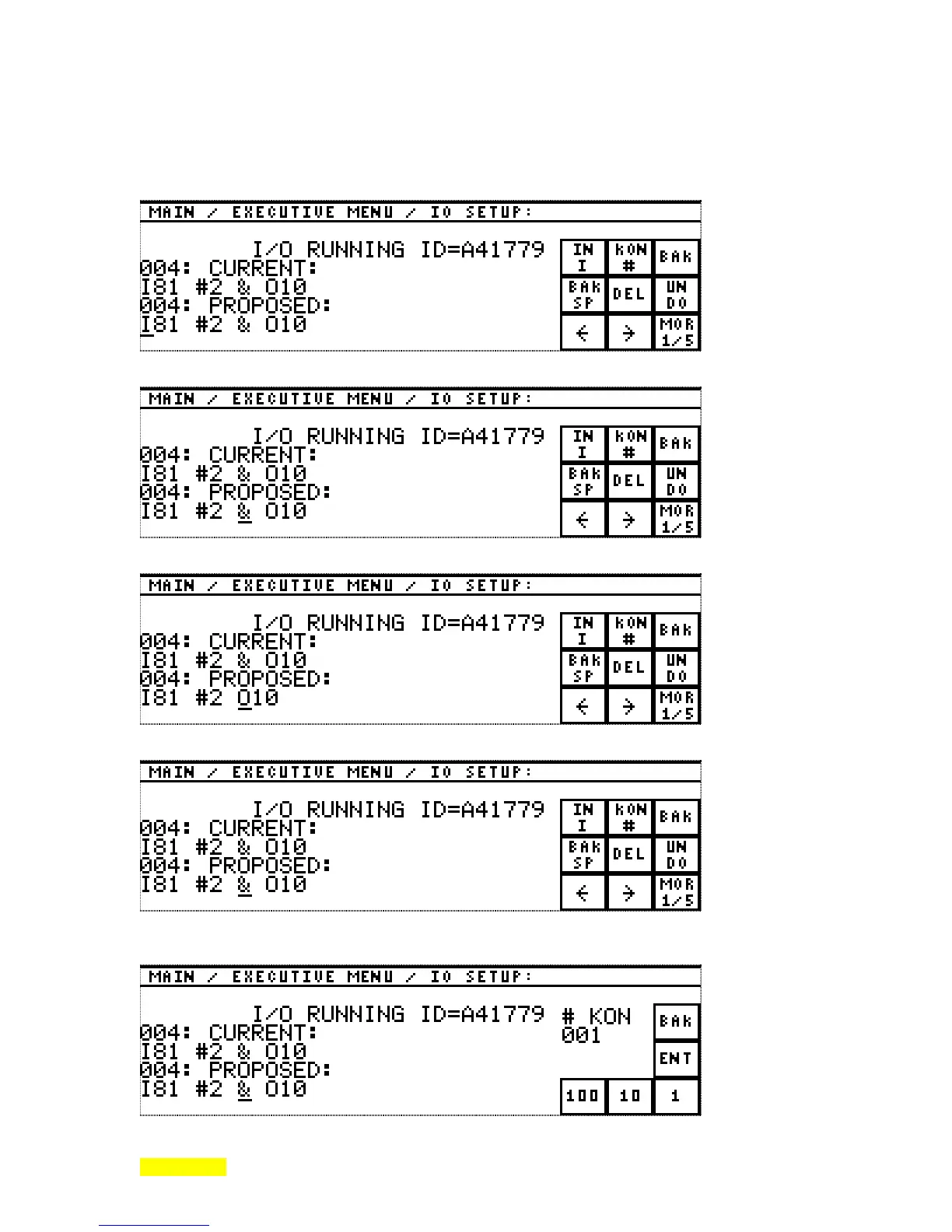

Following is the result of pressing CHG with rung # 004 in the edit/change position:
Press right arrow twice to reposition the EDT/CHG line cursor:
Press the DEL (delete) key to remove the & token:
Press the UNDO key to restore the deleted & token:
Now insert a KON# in between #2 and & by pressing the KON# key with the EDT/CHG line cursor
positioned as shown. On the right side of the screen, the temporary KON appears with zero default zero
value. Press the 1 key and ENT key to accept the constant value:
