Teleste MPH241 - Ethernet Interface; Ethernet Connections; Power over Ethernet (PoE+) Option; Up-link Ports, Optical Interfaces (SFP)

6 MPH200 series video encoders WebUI user manual

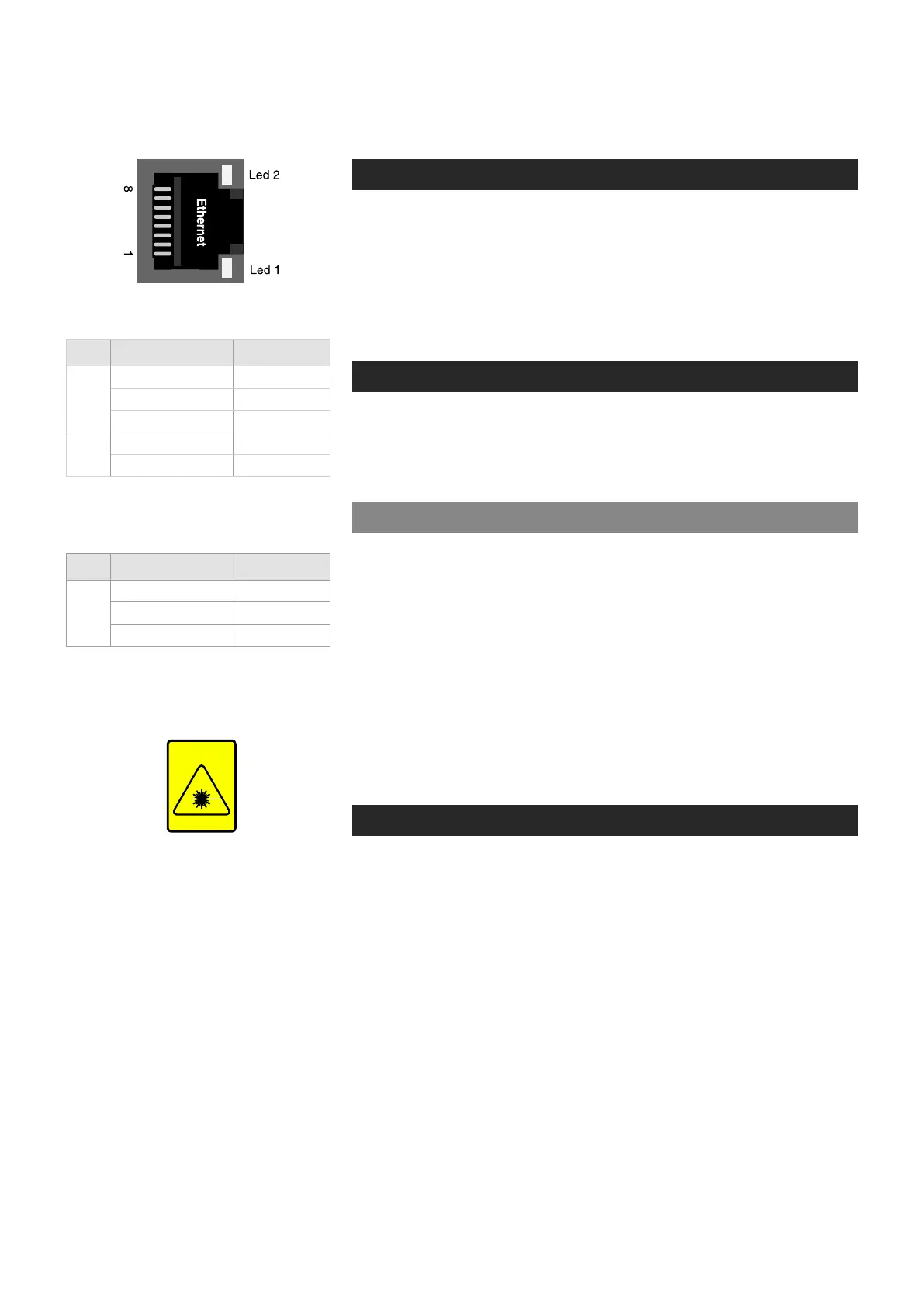

Electrical Ethernet connector (RJ-45).
Led Colour Mode
2
Green Link up
Blinking Green Trafc
OFF / Dark No link
1
Orange 1000 Mbps
OFF / Dark 100 Mbps
Led Colour Mode
SFP
Green Link up
Blinking Green Trafc
OFF / Dark No link
RADIATION
INVISIBLE LASER
CLASS 1
Ethernet connections
The unit has a built-in 4-port managed Ethernet switch and supports both
Fast Ethernet and Gigabit Ethernet connection speeds. Ethernet
interface type is either a xed electrical (copper), or has support for a
small form-factor pluggable transceiver (SFP) module. Supported SFP
transceivers are specied by Teleste. Please see the latest list of available
SFP products.
Local ports, electrical interfaces
Device include two (2) xed electrical Ethernet connectors. The electrical
Ethernet connector type is a RJ-45 female. The interfaces are supporting
10/100/1000Base-T operation (Gigabit Ethernet).
Power over Ethernet (PoE+) option
MPH200 series encoders supports PoE standard (PoE+ 802.3at class 4).
This means that the encoders can be powered through the LAN cable
without the need of individual power supplies. PoE is available from port
number three (3).
Requirements for the use of PoE:
• A Power over Ethernet (PoE) compliant switch or hub.
• MLH251 license activation.
Note! MPH200 series device PoE port is only used to powered
device itself, it not provide output power to other devices.
Up-link ports, optical interfaces (SFP)
SFP modules for optical Ethernet operation are available with a variety of
different types (see the latest list of available SFP products), allowing users
to select the suitable module for to provide the required optical reach over
the available optical bre type. The optical connector type is LC/PC (single
or dual). Ethernet interface speed is 1000BASE-X (Gigabit Ethernet).
When installing the bre optic cable, do not exceed the minimum
bending radius when connecting cable to the system.
Optical Ethernet connection meets class 1 laser safety requirements of
IEC 60825-2: 2004 and US department of health services 21 CFR
1040.10 and 1040.11 (1990) when operated within the specied tempera-
ture, power supply and duty cycle ranges.
Ethernet interface
Ethernet port’s led indicator operation
(RJ-45 connector).
Ethernet port’s led indicator operation
(when SFP optical connector).
