Tenda AP4 User Manual

114
− Password: tenda
− Domain Name: tenda.dyndns.com

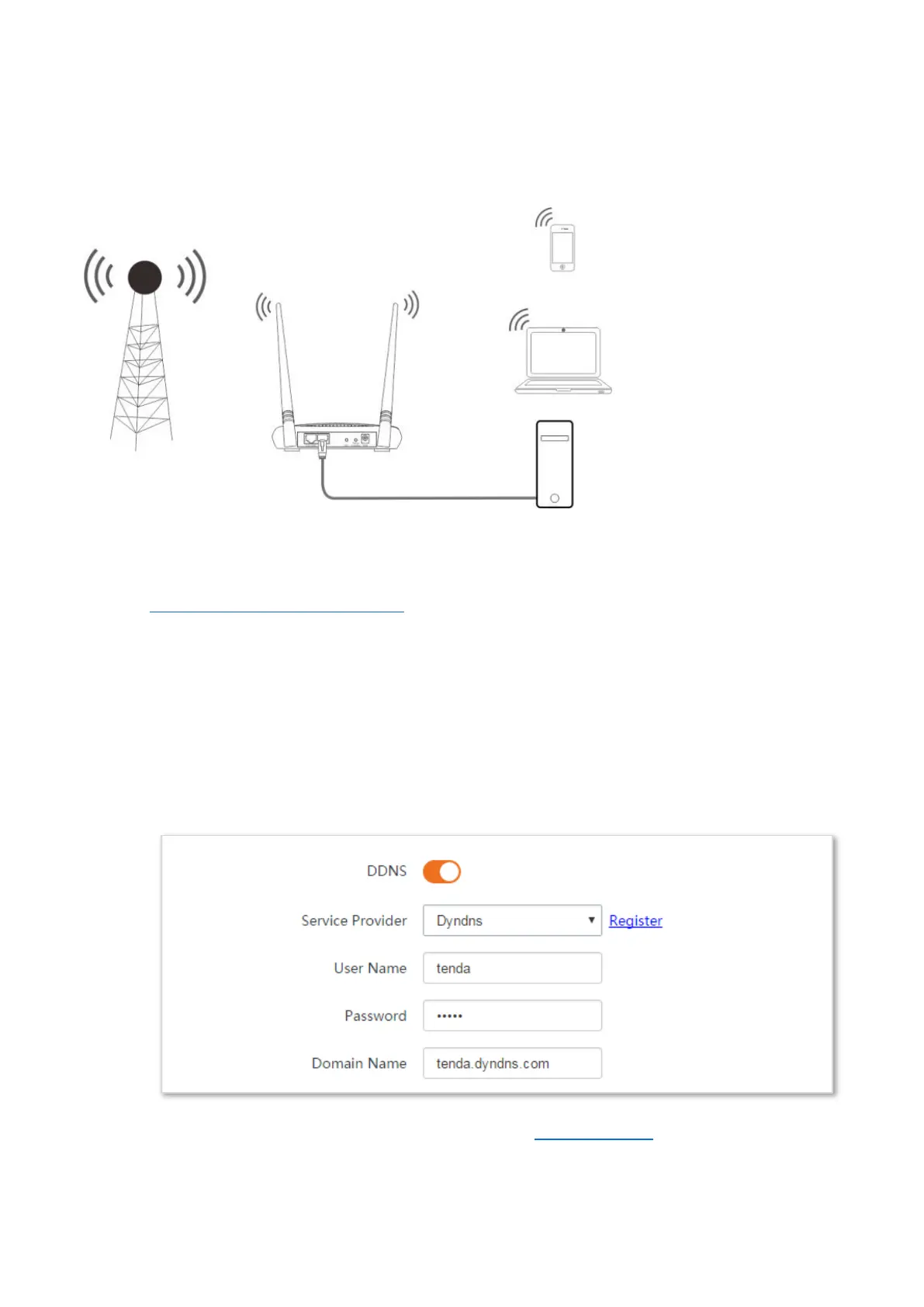

Network topology
Configuration procedure
Step 1 Set up the DDNS function.
1. Log in to the web UI of the device, and choose Advanced > Network Service.
2. Enable the DDNS function.
3. Select a service provider, which is Dyndns in this example.
4. Enter the user name and password you registered with DDNS service provider, which are
tenda and tenda in this example.
5. Enter the domain name you registered, which is tenda.dyndns.com in this example.
6. Click Save on the bottom of this page.
Step 2 Set up the port forwarding function by referring to Port forwarding.
----End
Web Server
WISP mode
ISP hotspot

Tenda AP4 Specifications

General

5 GHz	No
2.4 GHz	Yes
Frequency band	2.4 - 2.483 GHz
Number of users	5 user(s)
Operating modes	Access Point (AP), Repeater, WISP
Transmitting power	20 dBmW
Maximum indoor range	40 m
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Output current	0.6 A
Output voltage	9 V
Power consumption (typical)	4 W
Placement	Table, Wall
Certification	FCC, CE, VoC, Rohs
Product color	Black
LED indicators	LAN, System, WLAN, WPS
Antenna gain level (max)	5 dBi
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA2, WPA2-PSK
Number of SSID supported	8
Service Set Identifier (SSID) features	SSID broadcast on/off
Supported network protocols	http/https
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-10 - 45 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	31.5 mm
Width	148 mm
Height	146.2 mm
