Tenda AX3000 User Manual

24
Example of setting up a wireless network encrypted with PSK

Networking requirement
A hotel wireless network with a certain level of security must be set up through a simply procedure.
In this case, WPA, WPA2-PSK or WPA-PSK & WPA2-PSK security mode is recommended.

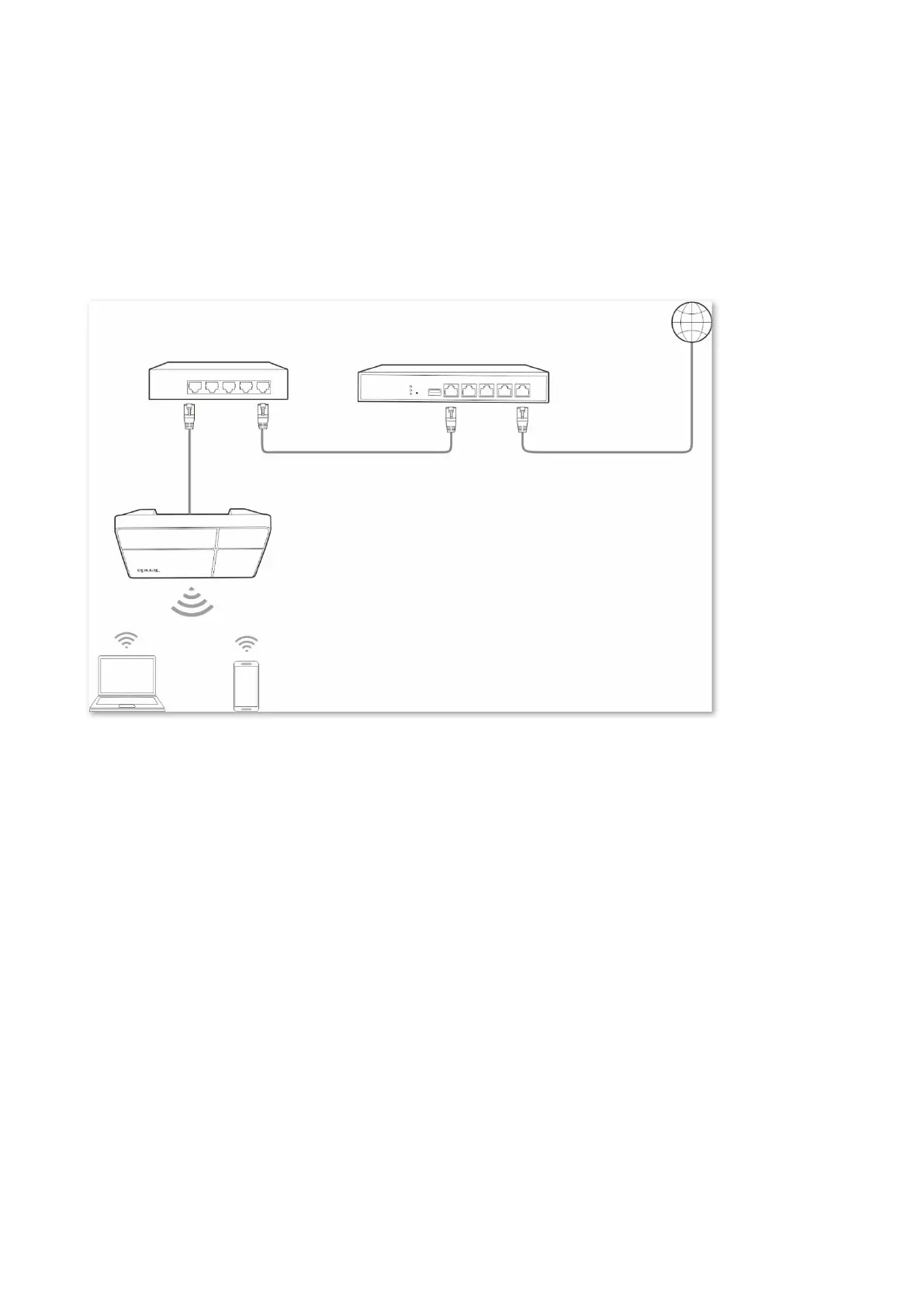

Assume that the SSID is hotel, the Wifi password is UmXmL9UK. See the following figure.

Configuration procedure
Assume that the first SSID of the 2.4 GHz radio band of the AP is to be configured.
Step 1 Choose Wireless > SSID.
Step 2 Select the first SSID from the SSID drop-down list menu.
Step 3 Set Status to Enable.
Step 4 Change the value of the SSID text box to hotel.
Step 5 Set Security Mode to WPA2-PSK and Encryption Algorithm to AES.
Step 6 Set Key to UmXmL9UK.
Step 7 Click Save.
Internet
Router
PoE switch
AP
WiFi: hotel
WiFi password: UmXmL9UK
LAN port
WAN port

Tenda AX3000 Specifications

General

Wi-Fi Standard	Wi-Fi 6 (802.11ax)
MU-MIMO	Yes
Beamforming	Yes
OFDMA	Yes
Frequency Bands	2.4 GHz, 5 GHz
Ports	1 x 10/100/1000 Mbps WAN port, 3 x 10/100/1000 Mbps LAN ports
Antenna	4 x external antennas
Security	WPA3, WPA2, WPA, WEP
Button	WPS/Reset
