Tenda AX3000 User Manual

57
6.6.3 Example of configuring QVLAN
Networking requirement
A hotel has the following WiFi network coverage requirements:
 Guests are allowed to connect to VLAN2 and only able to access the internet.
 Hotel staffs are allowed to connect to VLAN3 and only able to access the intranet.
 Hotel administrators are allowed to connect to VLAN4, able to access both the intranet and the
internet.
Network plan
 Set the SSID to internet for guests, oa for staffs, and VIP for managers for 2.4 GHz network.
 Configure VLANs for the three SSIDs on AP.
 Configure VLAN forwarding rules on switch.
 Configure VLAN forwarding rules on router and internal server..

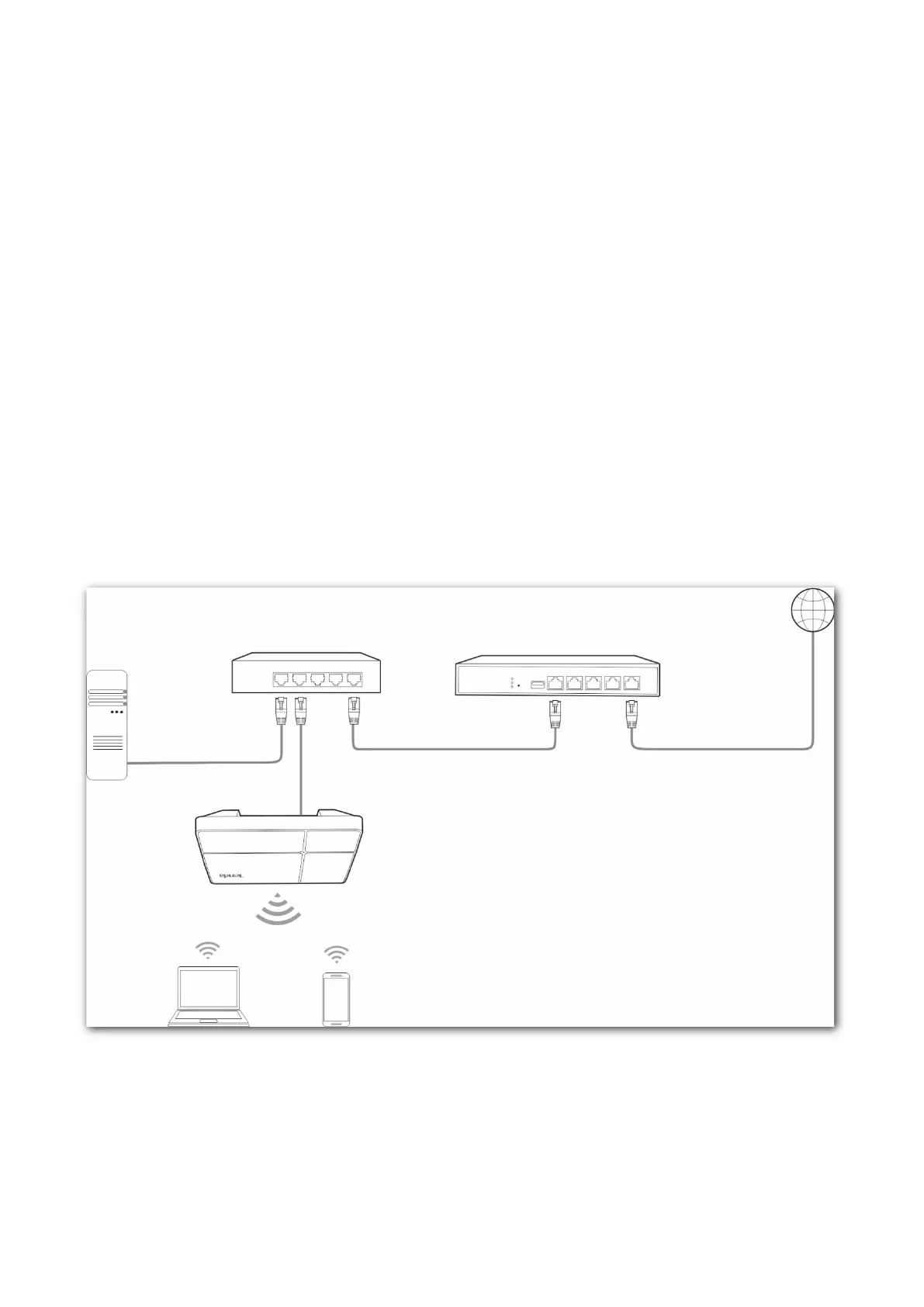

Internet
Router
PoE switch
AP
Guest SSID: internet (VLAN2)
Staff SSID: oa (VLAN3)
Administrator SSID: VIP (VLAN4)
Internal
server
LAN port
WAN port

Tenda AX3000 Specifications

General

Wi-Fi Standard	Wi-Fi 6 (802.11ax)
MU-MIMO	Yes
Beamforming	Yes
OFDMA	Yes
Frequency Bands	2.4 GHz, 5 GHz
Ports	1 x 10/100/1000 Mbps WAN port, 3 x 10/100/1000 Mbps LAN ports
Antenna	4 x external antennas
Security	WPA3, WPA2, WPA, WEP
Button	WPS/Reset
