Tenda AX3000 User Manual

58
Configuration procedure

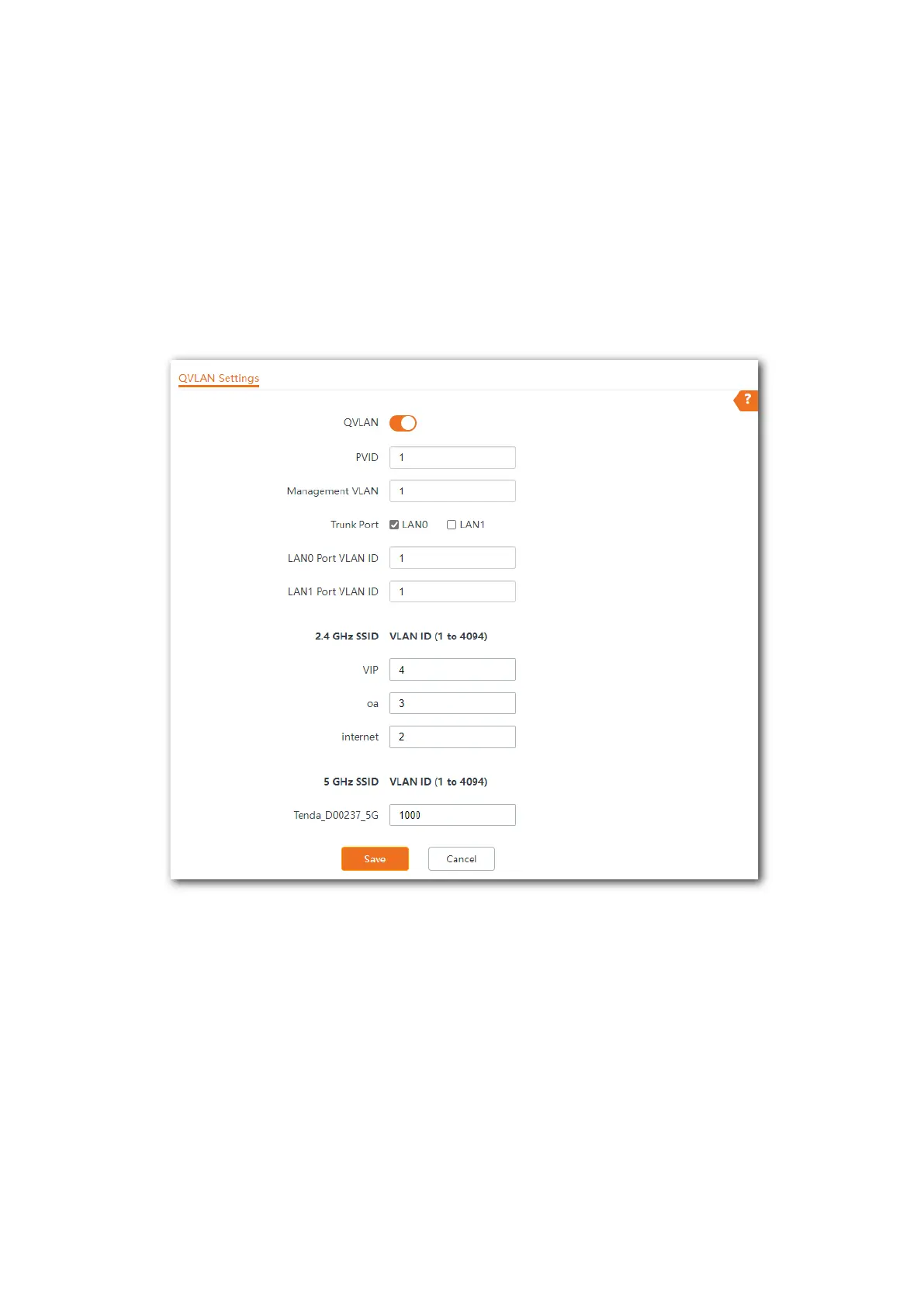

Step 1 Configure the AP.
1. Choose Wireless > QVLAN Settings.
2. Enable QVLAN.
3. Modify the VLAN ID of the SSIDs at 2.4 GHz band. Set the VLAN ID of internet to 2, oa to 3,
and VIP to 4 respectively.
4. Click Save.
5. Click OK after confirming the prompted message.
Wait for the automatic reboot of the AP.
*
*
*
*

Tenda AX3000 Specifications

General

Wi-Fi Standard	Wi-Fi 6 (802.11ax)
MU-MIMO	Yes
Beamforming	Yes
OFDMA	Yes
Frequency Bands	2.4 GHz, 5 GHz
Ports	1 x 10/100/1000 Mbps WAN port, 3 x 10/100/1000 Mbps LAN ports
Antenna	4 x external antennas
Security	WPA3, WPA2, WPA, WEP
Button	WPS/Reset
