STEERING PRIORITY VALVE
The steering priority valve is preset at the factory and will
normally not require any additional adjustment. In the event
that a new valve is installed or steering performance is poor
and all other components and adjustments have been verified,
adjustment of the valve may be required.
The steering priority valve is located inside the super struc-
ture just to the right of the rotary manifold.
STEERING PRIORITY VALVE ADJUSTMENT
Adjust this valve using the following procedure:
1. Remove the hydraulic hose connected to fitting “A”.
2. Remove fitting “A”.
3. Turn adjustment “B” clockwise until it bottoms out.
4. Turn adjustment “B” counterclockwise 2 full turns.
5. Reinstall Fitting “A” and the hydraulic hose.
SERVICE & ADJUSTMENTS
6 - 7

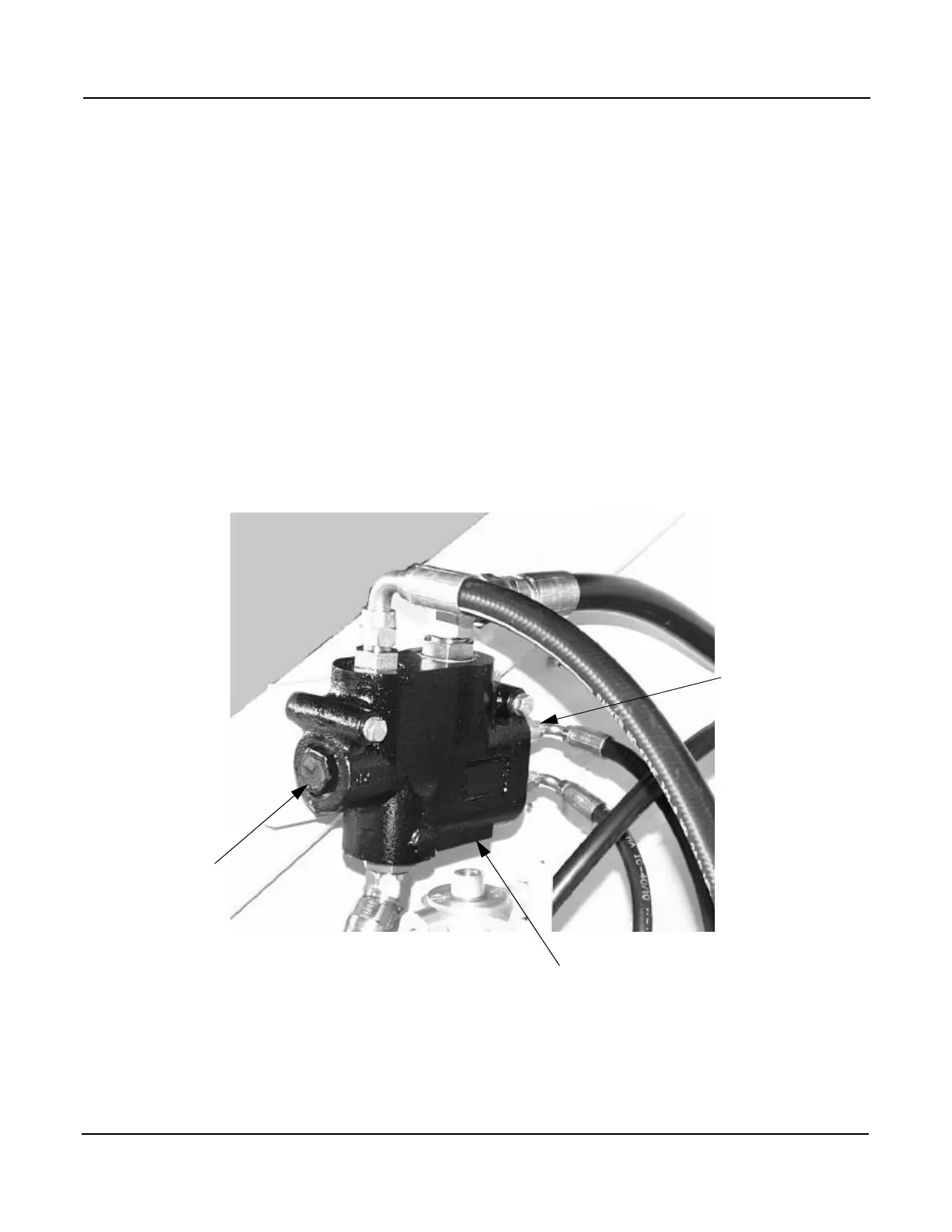

ADJUSTMENT “B”
TURN IN UNTIL
BOTTOMED OUT
THEN OUT 2 FULL
TURNS
FITTING “A”
STEERING PRIORITY VALVE
Issued: August 2003RT700 Series
