CONTROLS AND INSTRUMENTS

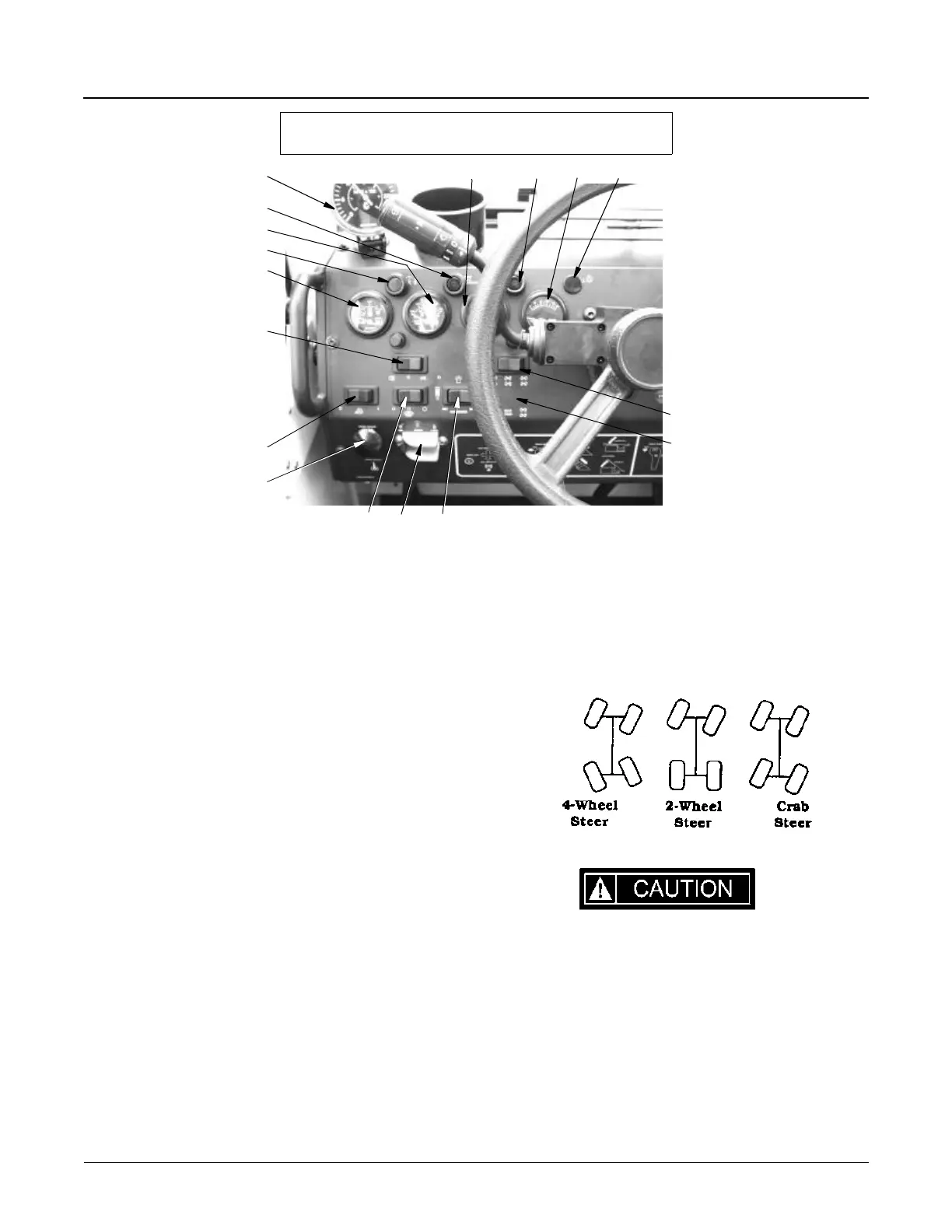

UPPER CONTROLS & INSTRUMENTS
1. FUEL GAUGE - Graduated in quarters of full tank.
2. SWING LOCKED INDICATOR - Indicates swing lock is
engaged.
3. ENGINE COOLANT TEMPERATURE GAUGE -
Measures engine coolant temperature.
4. REAR AXLE CENTERED INDICATOR - Indicates rear
axle is centered.
5. ENGINE OIL PRESSURE GAUGE - Measures engine
oil pressure.
6. LEFT TURN SIGNAL INDICATOR
7. VOLTMETER - Indicates battery or alternator condition.
8. LOW OIL PRESSURE INDICATOR - Indicates engine
oil pressure is too low.
9. DASH LIGHT SWITCH - Push left for dash lights only,
push right for dash lights and head lights.
10. WORK LIGHT SWITCH - Push right to turn on work
light.
11. SWING BRAKE PEDAL RATCHET RELEASE - Pull
and lock to permit operation of the pedal. Release to
allow pedal to be locked in applied position.
12. DEFROSTER FAN SWITCH - Push left for “LO”, center
for “OFF”, right for “HI”.
13. OUTRIGGER EXTEND/RETRACT MASTER SWITCH -
This switch is used in conduction with outrigger switches
(31-34) to extend and retract the outrigger beams and
jacks. Push left to retract and right to extend.
14. SWING LOCK SWITCH - Push right to engage swing
lock, left to disengage.
15. STEERING SWITCH - Provides the following:
Switch to crab or 4-wheel steering only when axles are cen-
tered. Otherwise, steering will be limited and may lock.
If wheels should become locked, switch to 2-wheel steer, turn
front wheels, switch back to crab or 4-wheel steer and center
wheels.
Exercise caution when the upper structure is not in the travel
position as the steering will appear to be reversed when
boom is over rear.
16. REAR STEER SWITCH - Push left to toggle rear wheels
left, push right to toggle rear wheels right.
17. TACHOMETER - Indicates engine RPM.
1
5 6 7
15
16
131412
RT700 Revised: April 2005Page 2 - 6
8
2
17
3
4
10
9
11
To Next Page
