CONTROLS AND INSTRUMENTS

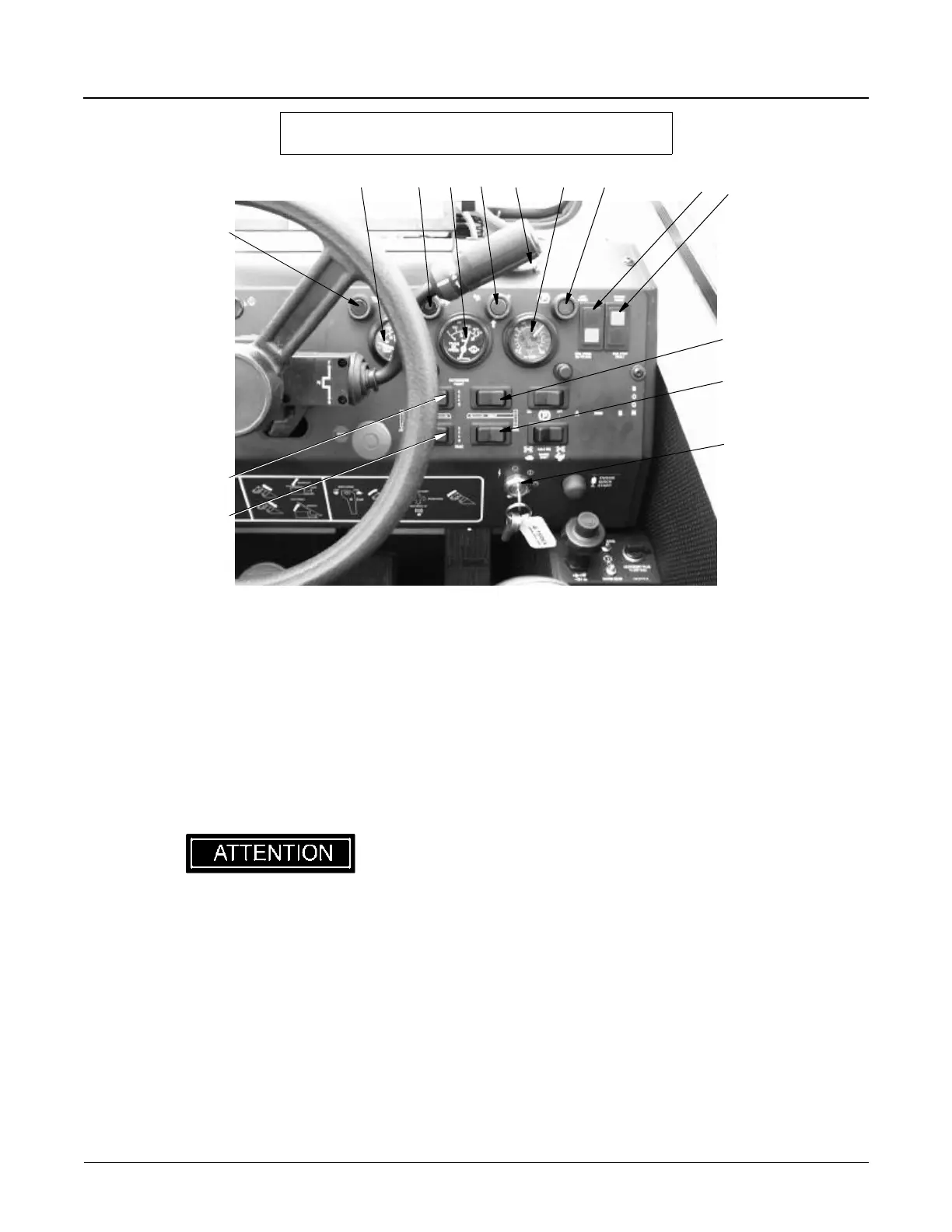

UPPER CONTROLS & INSTRUMENTS
18. WAIT TO START LIGHT - Lights when key is in on
position to indicate grid heater is activated. When heat
reaches adequate temperature light will go out, then
machine can be started.
19. TRANSMISSION TEMPERATURE GAUGE - Indicates
transmission temperature.
20. RIGHT TURN SIGNAL
21. TRANSMISSION OIL PRESSURE GAUGE - Indicates
transmission charge pressure. Normal range is 240 to
300 psi.
Never drive the machine when the charge pressure
is below 240 psi.
22. LOW AIR WARNING LIGHT & BUZZER - Will warn
when pressure falls below 65 psi.
23. BUBBLE LEVEL - The machine must be leveled prior to
lifting loads.
24. AIR PRESSURE GAUGE - 105 - 125 psi optimum
operating pressure.
25. PARK BRAKE INDICATOR - Indicates parking brake is
applied.
26. LOW WATER INDICATOR - Indicates engine coolant
level is too low.
27. ENGINE WARNING INDICATOR - Lights and then
flashes to indicate: coolant temperature high, oil
pressure low, or coolant low condition. Lights to indicate
a fault code is present in diagnostic mode.
28. ENGINE DIAGNOSTIC INDICATOR - Not used.
29. ENGINE STOP / FAULT INDICATOR - Lights to indicate
engine must be shut down immediately. Flashes out fault
codes in diagnostic mode.
30. IGNITION SWITCH - Turn left for all circuits except
ignition. Hold right to activate starter. Right position for all
circuits.
31. JACK SWITCH (LEFT FRONT) - Used in conjunction
with switch (13), to extend/retract outrigger jack and
beam.
32. JACK SWITCH (LEFT REAR) - Used in conjunction with
switch (13), to extend/retract outrigger jack and beam.
33. JACK SWITCH (RIGHT FRONT) - Used in conjunction
with switch (13), to extend/retract outrigger jack and
beam.
34. JACK SWITCH (RIGHT REAR) - Used in conjunction
with switch (13), to extend/retract outrigger jack and
beam.
20
18
21 22 23 24 25
27
26
29
28
RT700 Revised: April 2005Page 2 - 7
19
33
34
30
31
32
