MAINTENANCE CHECK As a part of the WEEKLY
MAINTENANCE CHECK, inspect the axle and differ-

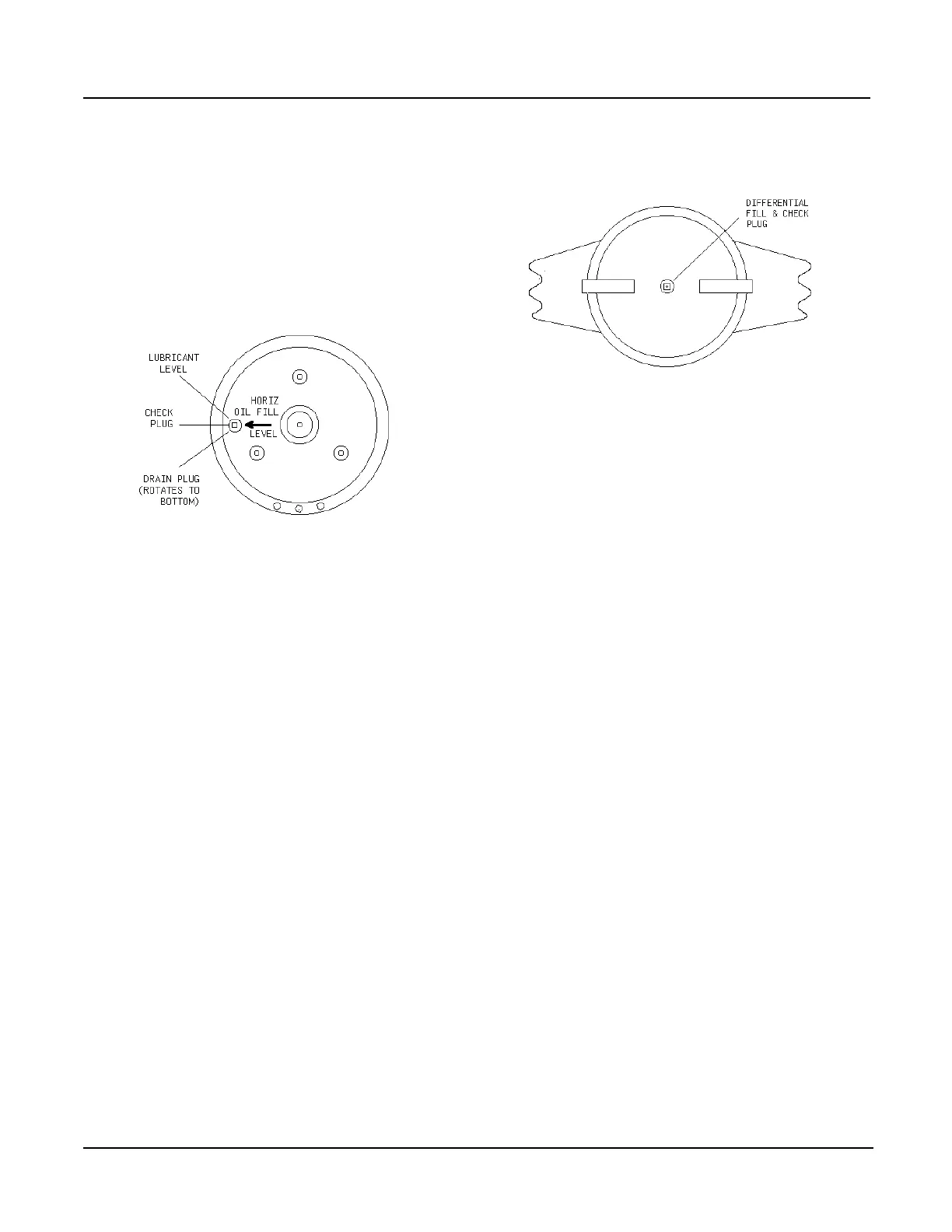

ential levels. When checking the AXLE OIL LEVEL, ro-
tate each wheel until the planet cover is positioned as
shown in the illustration below. the arrow on the planet
cover points horizontal when the cover is properly po-
sitioned for checking the oil.
Remove the oil level plug in the planet cover and add
oil as necessary to bring the oil level to the bottom of
the fill and check hole See the lubrication chart.
Check the DIFFERENTIAL OIL LEVEL by removing
the fill and check plug indicated in the illustration . Add
oil as necessary to bring the oil level to the bottom of
the hole. See lubrication chart.
MAINTENANCE AND LUBRICATION
AXLE MAINTENANCE
On a SEMI-ANNUAL basis, drain the oil from the differ-
ential by removing the drain plug at the bottom of the dif-
ferential housing. Replace the plug and refill the
differential with the lubricant specified on the lubrication
chart. To the level specified above.
Drain the oil from hubs removing the fill and check plug
by rotating the hub until the hole is at the extreme low
position. After draining, rotate the hub until the hole is at
the check position. Refill the hub with the lubricant spec-
ified on the lubrication chart. Refill to the level of the bot-
tom of the check plug.
4 - 11 Revised: March 2005RT700 Series
