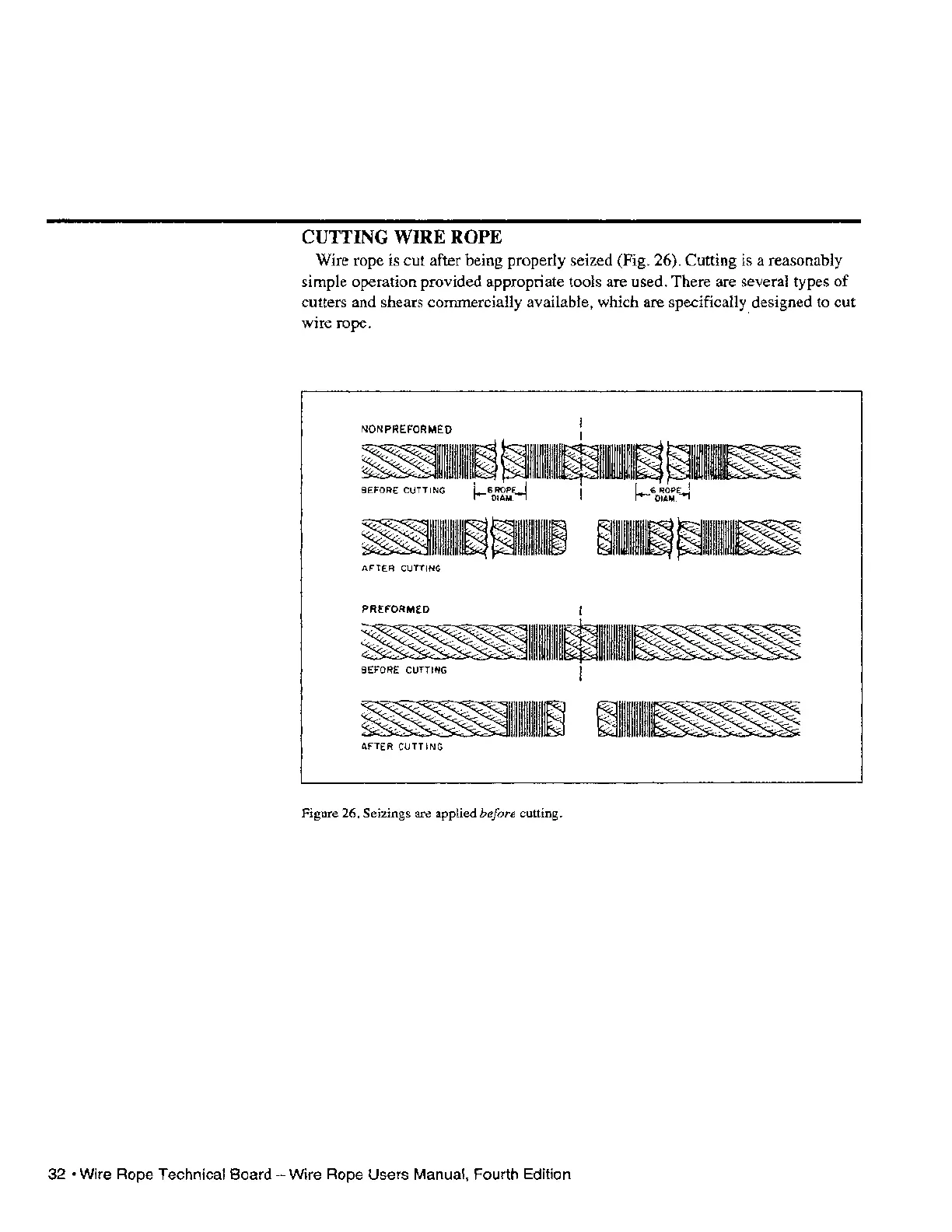

CUTTING
WIRE
ROPE
Wire
rope
is
cut
after
being
properly
seized
(Fig.
26).
Cutting
is
a
reasonably
simple
operation
provided
appropriate
tools
are
used.
There
are
several
typesof
cutters
and
shears
commercially
available,
which
are
specifically
designed
to
cut
wire
rope.
NONPREFORMED
BEFORE
CUTTING
AFTER
CUTTING
PREFORMED
BEFORE
CUTTING
AFTER
CUTTING
Figure
26.
Seizings
are
applied
before
cutting.
32
•
Wire
Rope
Technical
Board
-
Wire
Rope
Users
Manual,
Fourth
Edition
215
217
Table of Contents
Safety Index Section 1
6
Table of Contents
6
Introduction
7
Symbols
8
Handling Personnel
9
Training and Knowledge
9
Operator's Responsibilities
10
Signal Person's Responsibility
11
Responsibilities of All Crew Members
12
Management Responsibilty
12
Planning the Job
13
Operator Aids Check
14
Operator's Safety Check
14
Operation Overload Protection
15
Operation Setup
16
Power Line Safety
16
Travel
17
Controls and Instruments Index Subject Page
18
Universal Symbol Identification
19
Upper Controls & Instruments
22
Upper Controls & Instruments Key
23
Upper Controls & Instruments
24
Operating Procedures Index Section 3
31
Pre-Start Inspection
32
Starting the Engine
33
Cold Weather Starting
34
Operating the Engine
34
Jump Starting an Engine with Booster Cables
35
Vehicular Operation
35
Making a Typical Lift
38
Crane Hand Signals
42
On Tires" Lifts
43
Hoist Line Reeving
44
Auxiliary Winch
45
Wire Rope Specifications
45
Side Stow Offset Jib
46
Transporting the Crane
46
Unusual Operating Conditions
52
Load Rating Chart Interpretation
55
Maintenance Checks Index Section 4
62
Introduction
64
Machine Maintenance Check List
65
Wire Rope Inspection Record
68
Engine Maintenance
69
Engine Radiator Maintenance
70
Transmission Maintenance
71
Transmission
72
Axle Maintenance
73
Tires
74
Air System Maintenance
76
Brake System
77
Turntable & Swing Pinion
79
Swing Reducer
80
Hydraulic System Maintenance
81
Hydraulic Oil Requirements
83
Cable Lubrication Methods
88
Electrical System Battery Check
89
Electrical System Collector Ring
91
Cable Reeving
93
Spooling Wire Rope on Drums
93
Wire Rope & Reeving
94
Wire Rope Specifications
94
Crane Boom
97
Air Dryer
98
Slider Pads
98
Table of Contents
187
Introduction 1
189
Basic Components
191
Identification and Construction
193
Handling and Installation
209
Wire Rope Installation
209
Unreeling and Uncoiling 1
211
Cutting Wire Rope 1
216
End Preparations
217
End Termmations
217
Socketing
220
How to Apply Clips I
221
Wedge Sockets
227
Drums-Grooved
229
Operation, Inspection and Maintenance of Wire Rope
233
Sheaves and Drums I
233
Bending Rope over Sheaves and Drums I
235
Inspection of Sheaves and Drums 1
239
Strength Loss of Rope over Stationary Sheaves or Pins
242
Factors Affecting the Selection of Wire Rope 1
243
Fleet Angle
243
The "X-Chart"-Abraslon Resistance Vs. Bending-Fatigue Resistance
246
Field Lubncation
268
Constructlonal Stretch I
273
Elastic Properties of Wire Rope
273
Physical Properties
273
Elastlc Stretch
274
Design Factors
277
I Wire Rope Inspectlon Form
