CONTROLS AND INSTRUMENTS
UPPER CONTROLS & INSTRUMENTS
RT700 Revised: April 2005Page 2 - 8

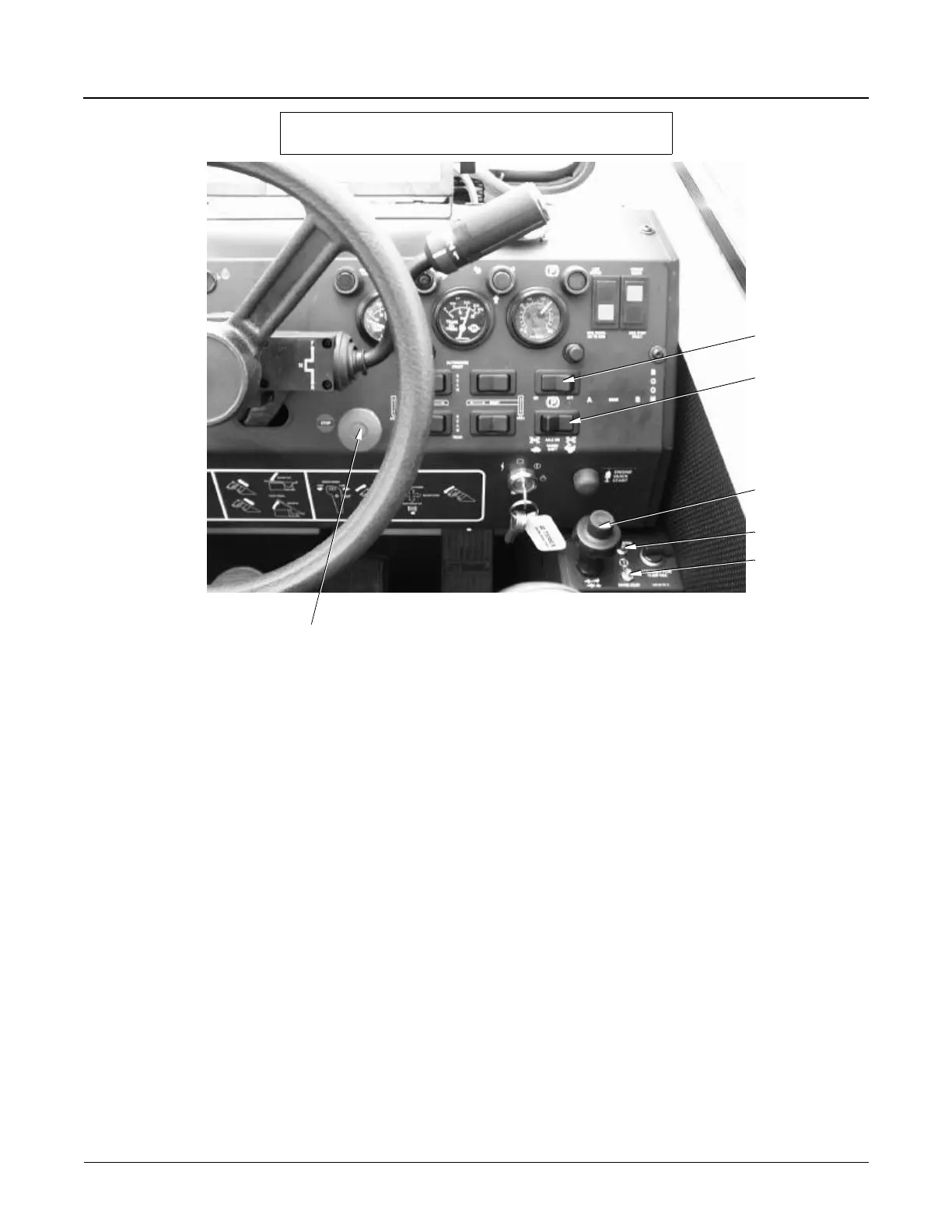

35. EMERGENCY STOP - Push to stop engine in case of
emergency. Pull to allow machine to be started again.
36. PARKING BRAKE SWITCH - Push right to activate
parking brake.
37. AXLE DISENGAGE / RANGE SHIFT - Push right to
disengage front axles for high speed travel.
38. HAND THROTTLE - Holds engine throttle at an
operator settable position. Place the accelerator
(43) at approximate RPM. Push in button on hand
throttle. Pull throttle up and release button to lock.
Make fine adjustments to engine RPM by rotating
the hand throttle clockwise to decrease RPM and
counter-clockwise to increase RPM.
39. SWING BEARING GREASE FITTING - Inject bearing
grease here.
40. SWING GEAR GREASE FITTING - Inject gear grease
here.
38
39
40
35
37
36
