CONTROLS AND INSTRUMENTS
UPPER CONTROLS & INSTRUMENTS

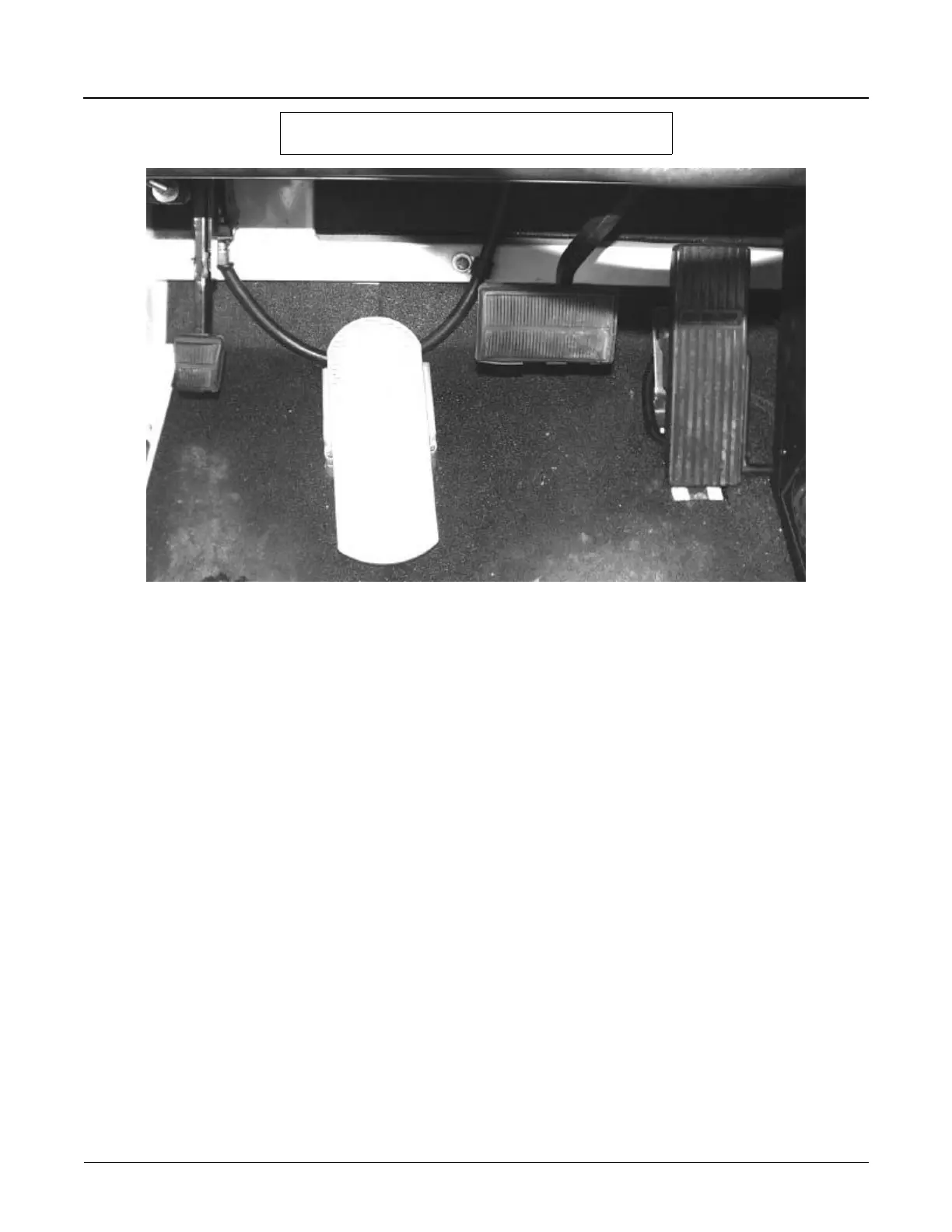

41. SWING BRAKE - Apply to prohibit boom from
swinging
42. BOOM EXTEND RETRACT PEDAL - Tilt the
pedal halfway forward to power-extend the boom.
Tilt the pedal all the way forward for high speed
(regenerative) extend. The boom extend will stop
at the transition between power extend and high
speed. In high speed extend the boom extend has
minimal extend force. Tilt backward to retract
boom.
43. ACCELERATOR - Push to increase engine RPM
and release to decrease.
44. BRAKE PEDAL - Push to stop carrier movement.
42
41
43
44
RT700 Revised: April 2005Page 2 - 9
