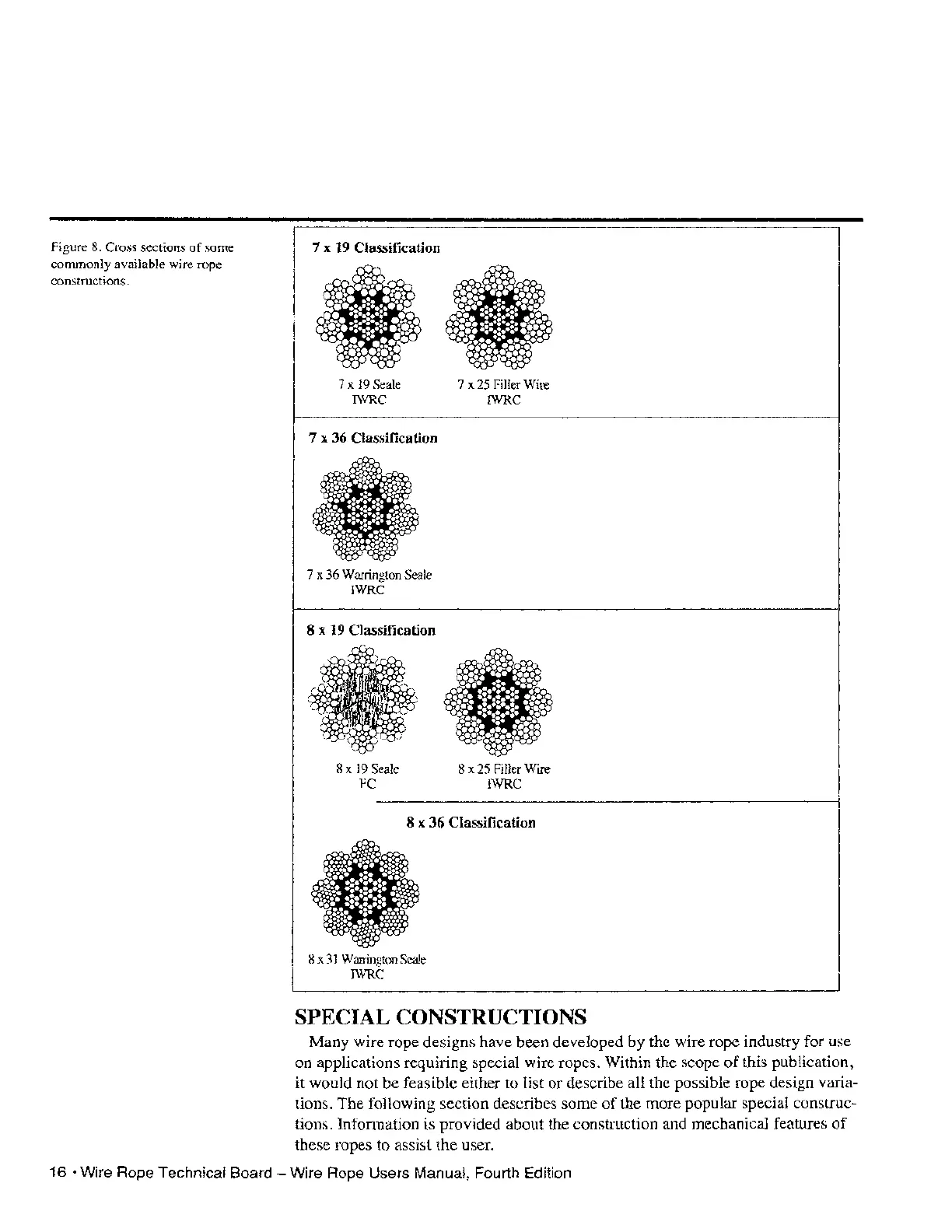

Figure 8. Cross sections
of
some
commonly available wire
rope
constructions.
7 x 19 Classification
7 x
19
Seale
IWRC
7 x 36 Classification
7 x 36 Warrington Seale
IWRC
8 x 19 Classification
8 x
19
Seale
FC
7 x
25
Filler
Wire
IWRC
8 x
25
Filler
Wire
IWRC
8 x
36
Classification
8 x
31
Warrington
Seale
IWRC
SPECIAL CONSTRUCTIONS
Many wire rope designs have been developed
by
the wire rope industry for use
on
applications requiring special wire ropes. Within the scope
of
this publication,
it
would not be feasible either to list or describe all the possible rope design varia-
tions. The following section describes some
of
the more popular special construc-
tions. Information is provided about the construction and mechanical features
of
these ropes to assist the user.
