WIRE ROPE SOCKET- POIJRED SPELTER OR RESIN
WIRE ROPE SOCKET -SWAGED
~~~~
MECHANICAL SPLICE - LOOP 011 THIMBLE
WEDGE SOCKET
CLIPS-NUMBER OFCLlPS VAHIES WITH ROPE SIZE ANO CONSTRUCTION
LOOP OR THIMBLE SPLICE - HAND TUCKED

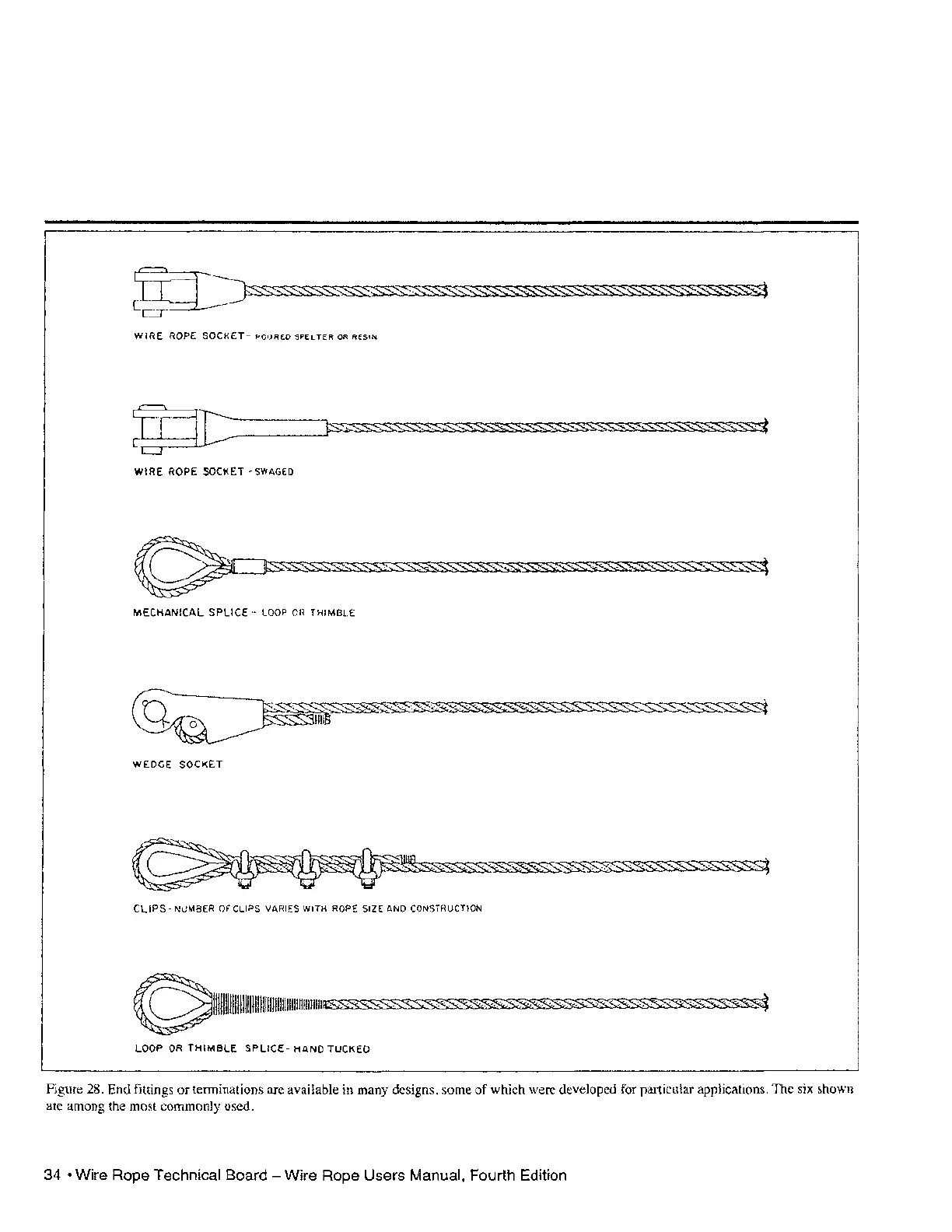

Figure 28. End fittings or terminations are available in many designs, some of which were developed for particular applications. The six shown
are among the most commonly used.
