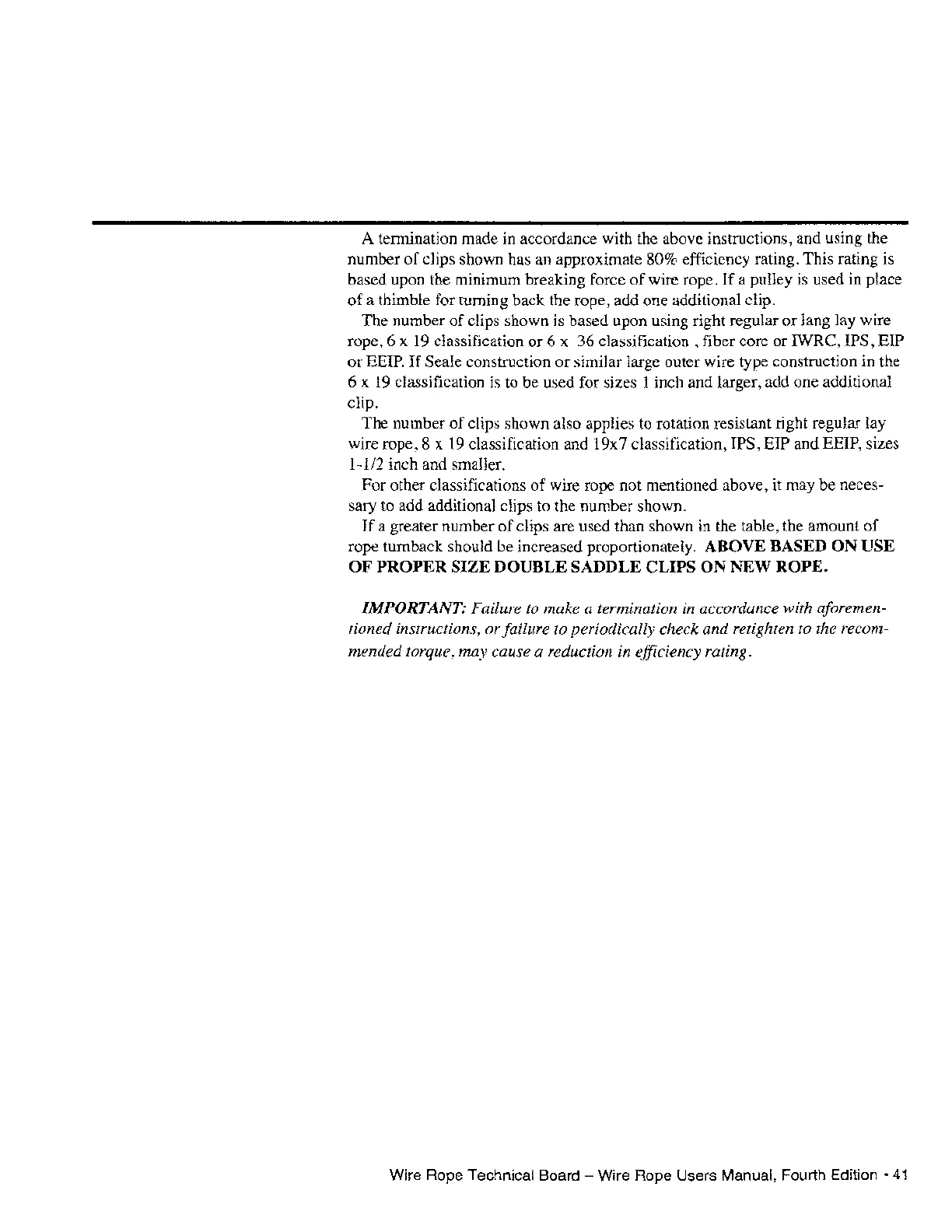

A tennination made in accordance with the above instructions, and using the
number
of
clips shown has an approximate 80% efficiency rating. This rating is
based upon the minimum breaking force
of
wire rope.
If
a pulley is used in place
of
a thimble for turning back the rope, add one additional clip.
The number
of
clips shown is based upon using right regular
or
lang lay wire
rope, 6 x 19 classification
or
6 x 36 classification, fiber core or IWRC, IPS, EIP
or
EEIP.
If
Seale construction
or
similar large outer wire type construction in the
6 x
19
classification is to
be
used for sizes 1 inch and larger, add one additional
clip.
The number
of
clips shown also applies to rotation resistant right regular lay
wire rope, 8 x 19 classification and 19x7 classification,
IPS, EIP and EEIP, sizes
1-112
inch and smaller.
For
other classifications
of
wire rope not mentioned above,
it
may be neces-
sary to add additional clips to the number shown.
If
a greater number
of
clips are used than shown in the table, the amount
of
rope turnback should
be
increased proportionately. ABOVE BASED ON USE
OF
PROPER
SIZE DOUBLE SADDLE CLIPS ON NEW
ROPE.
IMPORTANT:
Failure to make a termination
in
accordance with aforemen-
tioned instructions, or failure to periodically check and retighten to the recom-
mended torque, may cause a reduction in efficiency rating.
Wire Rope Technical Board - Wire Rope Users Manual, Fourth
Edition·
41
