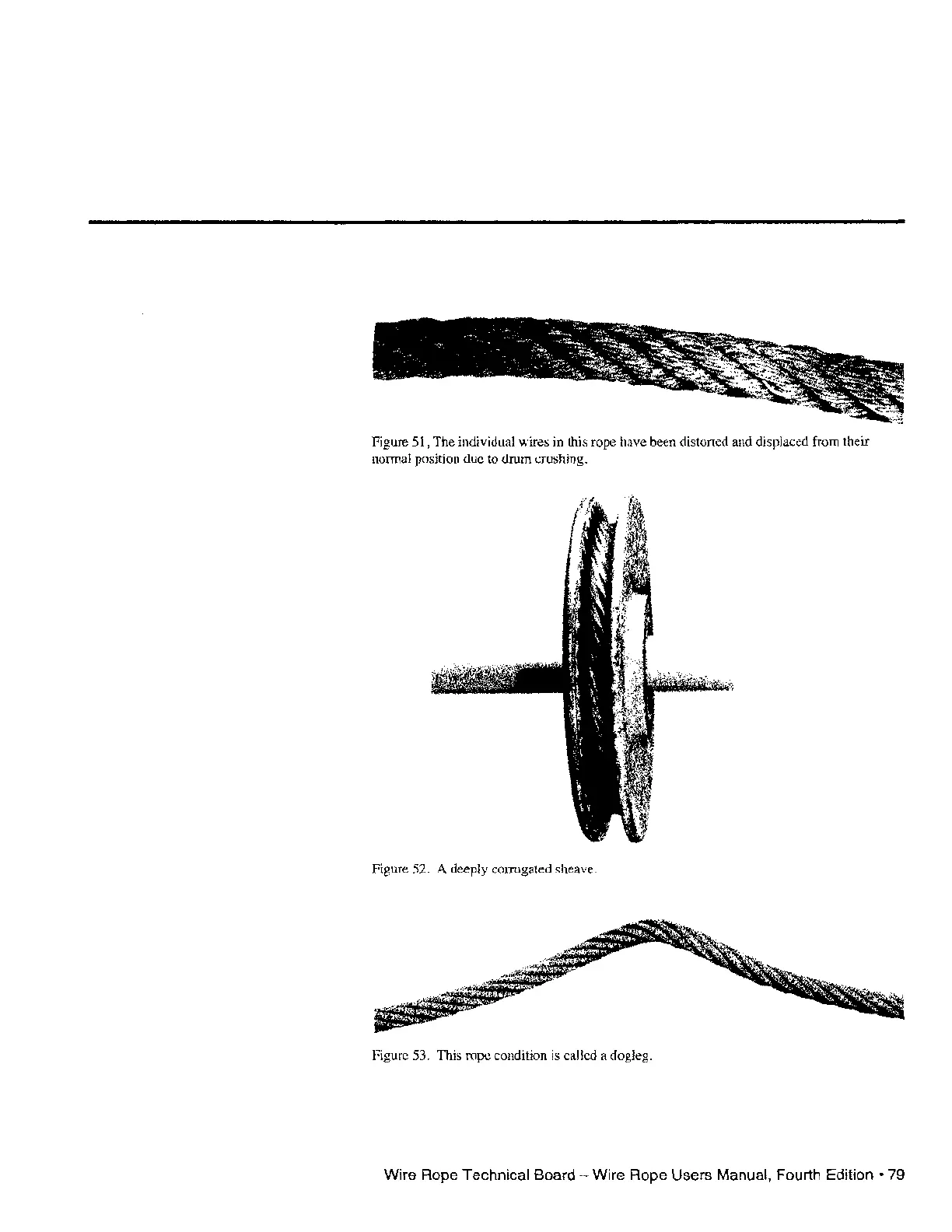

Figure 51, The individual wires in this rope have been distorted and displaced from their
normal position due to drum crushing.
Figure 52. A deeply cOlrugated sheave.
Figure 53. This rope condition is called a dogleg.
Wire Rope Technical Board - Wire Rope Users Manual, Fourth
Edition·
79
