CONTROLS AND INSTRUMENTS
UPPER CONTROLS & INSTRUMENTS

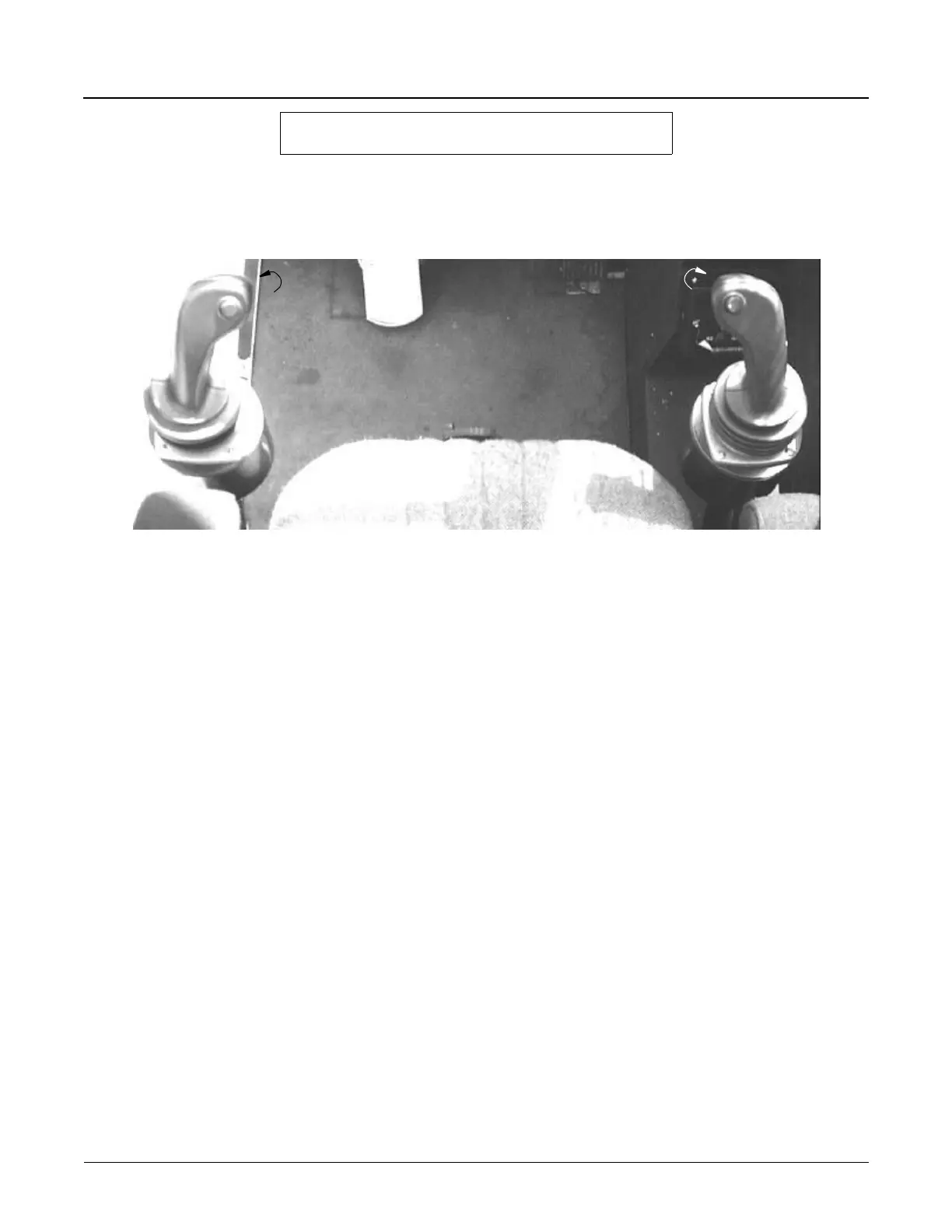

47. SWING/AUX WINCH CONTROL - Move joystick
forward to pay out aux winch rope. Move joystick
backward to take in aux winch rope. Move joystick
left to swing boom left. Move joystick right to swing
boom right.
47A Aux Winch Rotation Indicator - Thumps
to signal that rope is moving. (Located
internally in handle)
47B Horn - Press to sound horn. (Located on
underside of handle)
47C Hi-Speed Winch Switch - Press to toggle
high speed winch.
48. BOOM HOIST/MAIN WINCH CONTROL - Move
joystick forward to pay out main winch rope. Move
joystick backward to take in main winch rope. Move
joystick left to raise boom. Move joystick right to
lower boom.
48A Main Winch Rotation Indicator - Thumps
to signal that rope is moving. (Located
internally in handle)
48B Horn - Press to sound horn. (Located on
underside of handle)
48C Hi-Speed Winch Switch - Press to toggle
high speed winch.
47
A
B
C
48
C
A
B
RT700 Revised: April 2005Page 2 - 11
