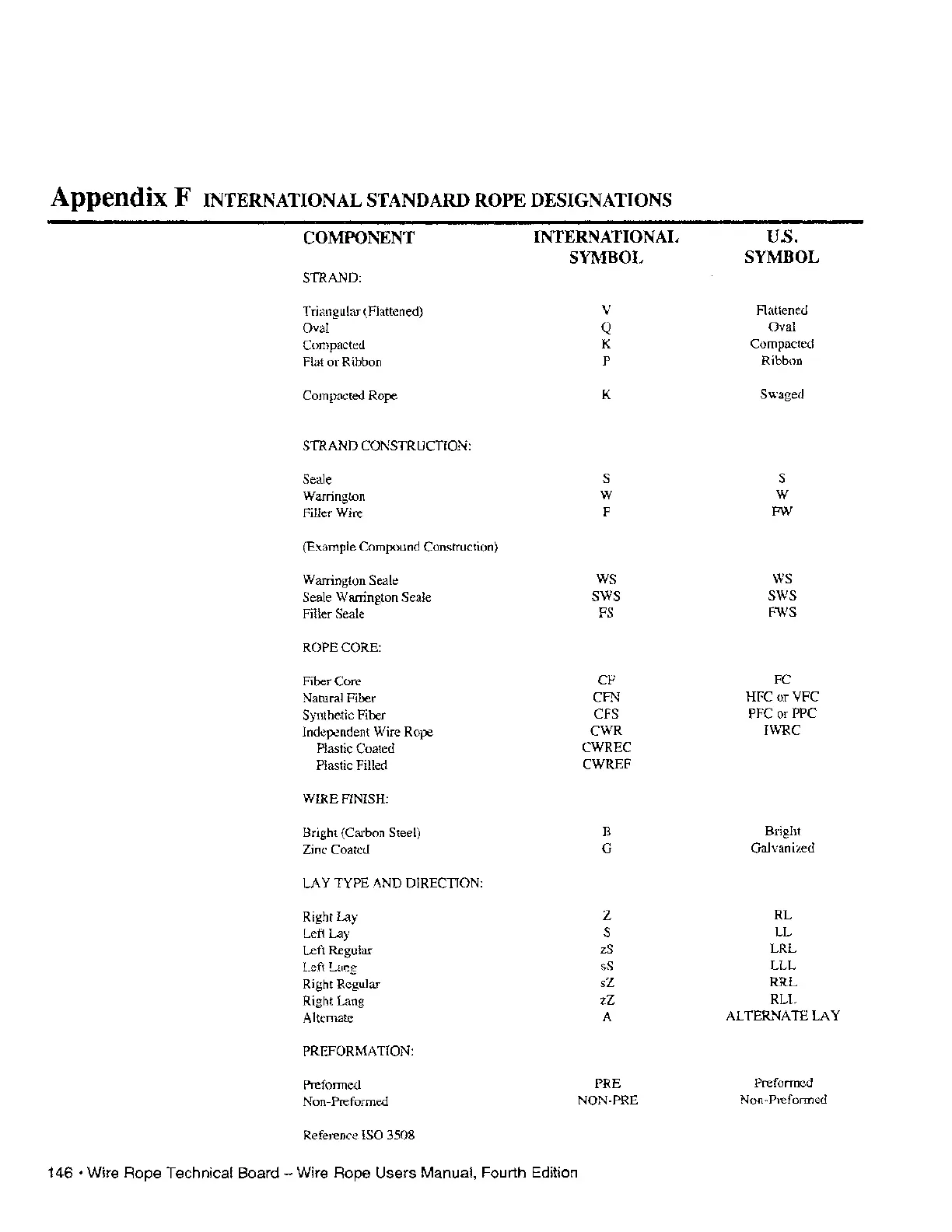

Appendix F INTERNATIONAL STANDARD ROPE DESIGNATIONS
COMPONENT
S1RAND:
Triangular (Flattened)
Oval
Compacted
Flat
or Ribbon
Compacted Rope
S1RAND CONSTRUCTION:
Seale
Warrington
Filler Wire
(Example Compound Construction)
WalTington
Seale
Seale Wanington Seale
Filler Seale
ROPE CORE:
Fiber Core
Natural Fiber
Synthetic Fiber
Independent Wire Rope
Plastic Coated
Plastic Filled
WIRE
FINISH:
Bright (Carbon Steel)
Zinc Coated
LAY
TYPE AND DIRECTION:
Right Lay
Left Lay
Left Regular
Left L<mg
Right Regular
Right Lang
Alternate
PREFORMATION:
Preformed
Non-Preformed
Reference ISO 3508
INTERNATIONAL
SYMBOL
v
Q
K
P
K
S
W
F
WS
SWS
FS
CF
CFN
CFS
CWR
CWREC
CWREF
B
G
Z
S
zS
sS
sZ
zZ
A
PRE
NON-PRE
