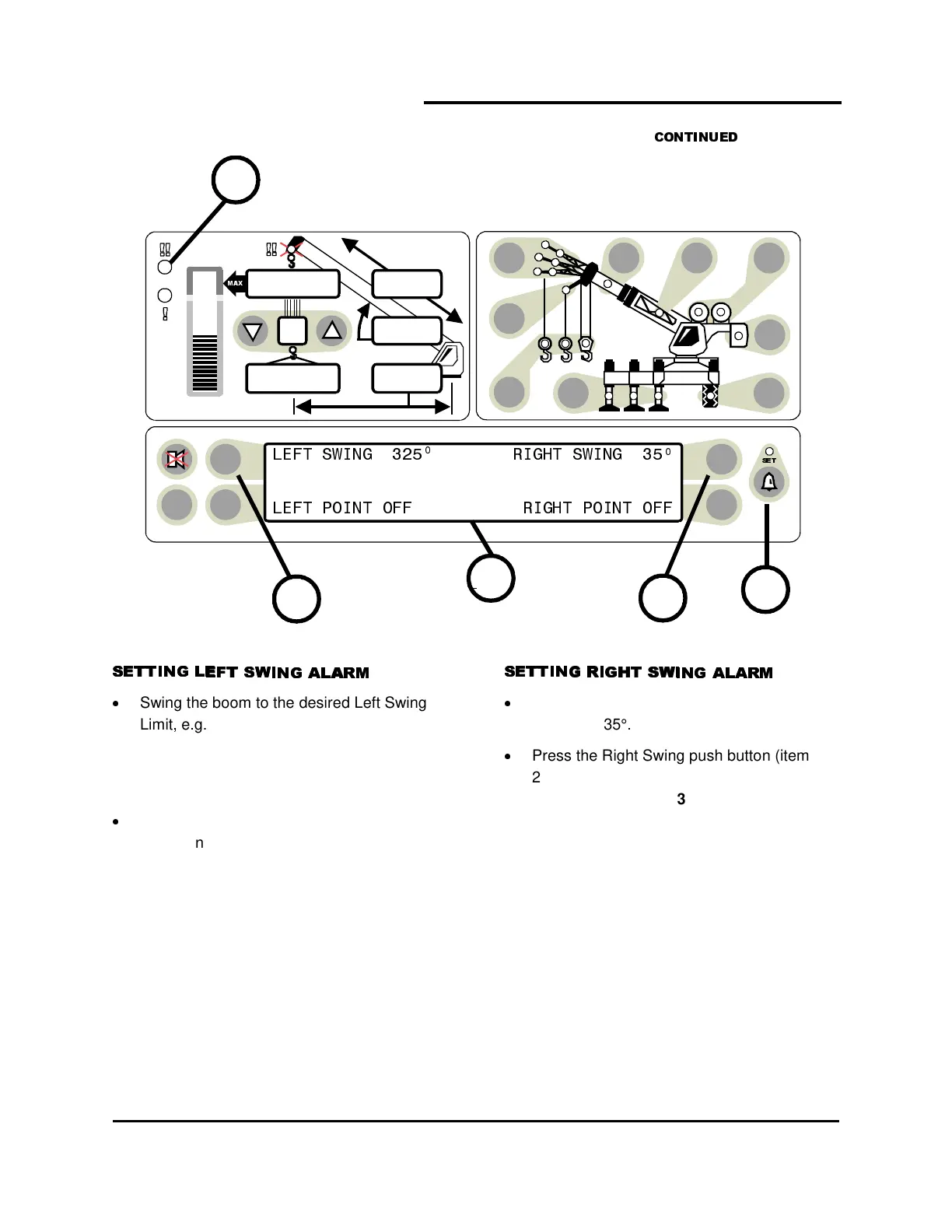

Swing the boom to the desired Left Swing
Limit, e.g. 325°.
Press the operator alarm push button (item
24) 2 times to access the swing alarm
screen.
Press the push button (item 28) pointing to
Left Swing. The information screen (item 1)
will read LEFT SWING 325°.
Both Left and Right Swing Alarms must be set
for the system to operate correctly. The red
warning light (item 5) will flash and the audible
alarm will sound whenever only one of the
left/right swing limits is set.
Move the boom to the desired Right Swing
Limit, e.g. 35°.
Press the Right Swing push button (item
29). The information screen (item 1) will
read RIGHT SWING 35°.
The red warning light (item 5) will flash and the
audible alarm will sound whenever the boom
swings past the preset limits.
Pressing the LEFT SWING and RIGHT SWING
push buttons again will cancel the alarm and the
information screen (item 1) will read:
LEFT SWING OFF RIGHT SWING OFF.
